TEA1836 45 W 19.5 V QR / DCM Wall Charger

TEA1836DB1200 アクティブ

画像にカーソルを合わせると拡大表示されます。

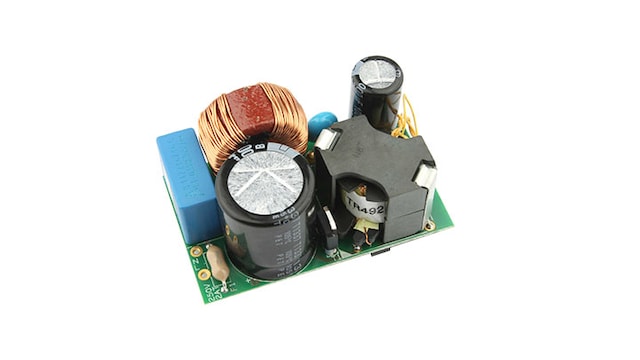

This TEA1836 board demonstrates an ultra-compact, high power density, and cost-effective 45 W / 19.5 VAC/DC switch mode power supply (SMPS) wall adapter, typically used for ultrabook and tablet likely applications.

製品詳細

対応製品

パワーマネージメント

セカンダリ・サイド・コントローラ

  • TEA1892: GreenChip Synchronous Rectifier Controller

AC-DCコントローラ

Features

Power Management

  • Output power: 45 W / 19.5 V
  • Very high efficiency: > 93%
  • Energy Star v6.0 compliant
  • Very low no load power consumption: < 30 mW (with output voltage in full regulation)
  • Power density is 1 W / 0.85 cm3 (net to casing)
  • Active X-cap discharge
  • Over Current Protection (OCP)
  • Over Power Protection (OPP)
  • High/low line compensation
  • Universal Mains: 90 - 264 Vac / 47 - 63 Hz
  • C.o.C. tier 2 compliant
  • EMI CISPR22 compliant
  • Maximum casing temperature < 55 °C

User components

  • IC used: TEA1892 synchronous rectifier controller

購入オプション

TEA1836DB1200-Image

クリックして展開

  • TEA1836DB1200
    アクティブ

  • TEA1836 45 W 19.5 V QR / DCM Wall Charger.

    • Demo board
    • Quick start guide
  • $289.80 USD
  • の数量に対して 1
    • 在庫: 在庫あり
    • 在庫: 30
    • 配送: 通常 1～2営業日以内に配送
カートに入れる
代理店からの注文
