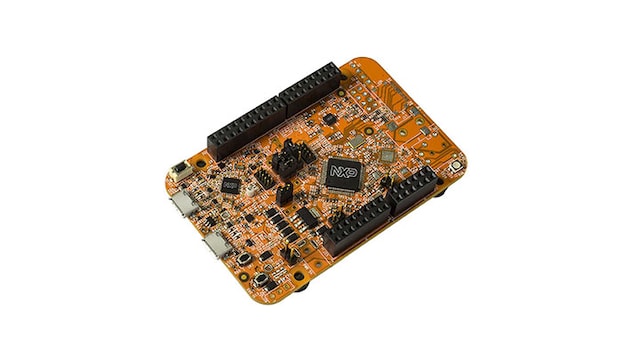

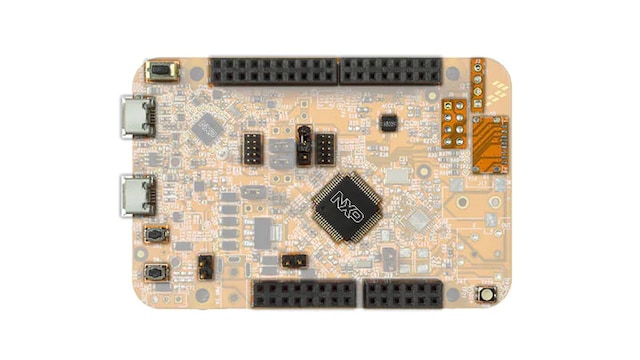

FRDM-K22F
-
Freedom Development Board for Kinetis K02 and K22 (100-120 MHz, 128-512 KB Flash) MCUs.
Kit contains:
- FRDM-K22F hardware
- Quick Reference Card
ソフトウェア
1 ソフトウェア・ファイル
注: より快適にご利用いただくために、ソフトウェアのダウンロードはデスクトップで行うことを推奨します。

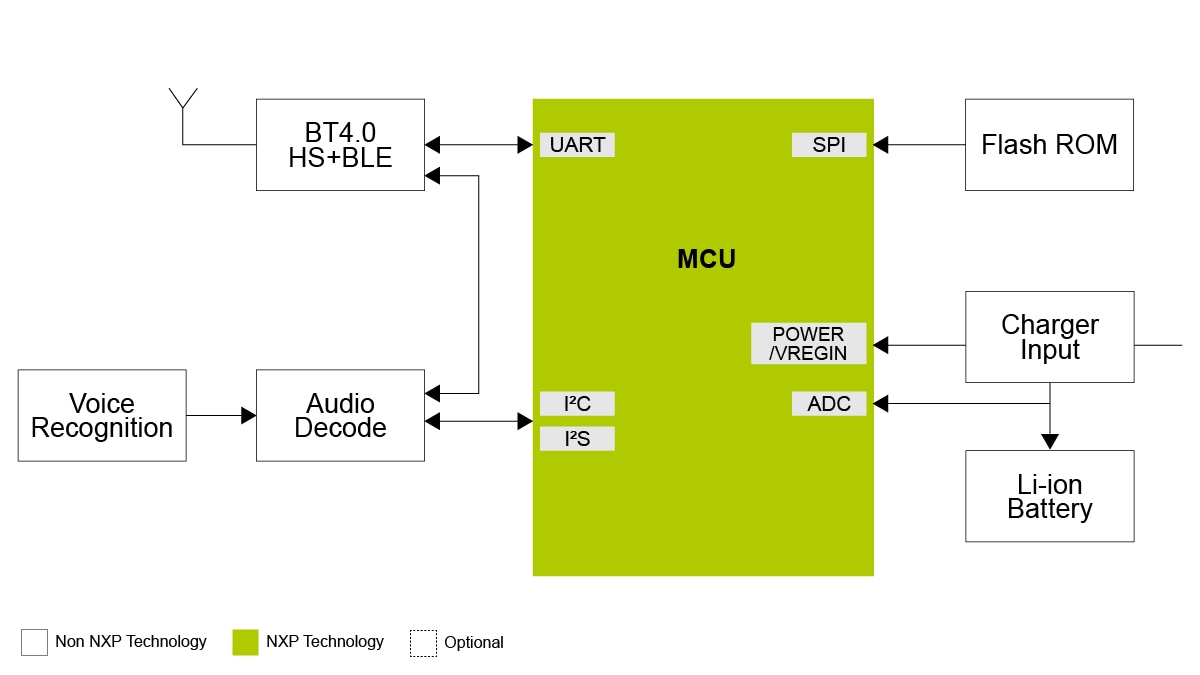

K22 Wireless Player Reference Design
RDWLPLAYER アラートの受信
This wireless player reference design based on the K22 has the following characteristics:
Stable Bluetooth® connection and data transfer. Ultra-small size with a 3.3 x 3.3mm to 5 x 5mm small package provides more flexibility for product shape design. Ultra low-power flexible extensions. MCU pin-to-pin compatibility enables internal storage space upgrade without the need to modify hardware.
製品詳細
対応製品
プロセッサ＆マイクロコントローラ
K2x / KS2x USB
- K22_120: Kinetis® K22-120 MHz, Cost Effective, Full-Speed USB Microcontrollers (MCUs) based on Arm® Cortex®-M4 Core
Features
- K22 MCU family based on the Arm® Cortex®M4 core, integrated floating point unit, DSP instruction set, design specially for audio decoding
- Optional 3.4 - 4.2 V rechargeable battery
- MCU internally integrated Bluetooth HCI driver and A2DP, HFP, SPP and other protocols
購入オプション
-
TWR-K22F120M
-
Tower System Development Board for Kinetis K02 and K22 (100-120 MHz, 128-512 KB Flash) MCUs.
Kit contains:
- TWR-K22F120M Tower® System module
- Quick Start Guide
- Supporting cables
- Battery
