Embedded Component: Processor Expert Valve Driver Based on MC34SB0410 Or MC34SB0800
VALVE-DRIVER-SB0410-SB0800-PEXPERT アラートの受信

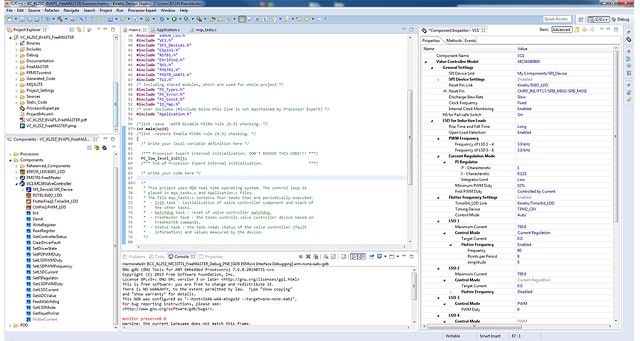

This package contains Processor Expert® support for MC34SB0410 and MC34SB0800 NXP® analog products and example projects for CodeWarrior® 10.6 or newer and Kinetis® Design Studio 3.0 or newer.
Processor Expert component for Valve Driver products enables rapid embedded application development.
This component provides access to all features of Valve Driver products such as writing/reading SPI registers, initialization, monitoring and controlling of present drivers.
ソフトウェア詳細
Features
- SPI communication
- Initialization based on PEx component properties
- Control of present drivers
- Low-side drivers (inductive/resistive load) including flutter current functionality
- High-side driver (general purpose)
- Pump motor pre-driver (GPIO, PWM)
- Monitoring
- Supervision
- Status information
- Measurements (voltage, temperature)
- Driver control and driver monitoring
- Pump motor pre-driver PWM control using SPI
- Flutter current functionality for low-side drivers
- Software PID current regulation of low-side drivers
- FreeMASTER control application
対応製品
- MC34SB0410: Quad Valve Controller System on Chip
- MC34SB0800: Octal Valve Controller System on Chip
Supported Tools
- TWR-SB0410-36EVB: Evaluation Board - SB0410, Quad Valve/Pump Controller SoC
- TWR-SB0800-36EVB: Evaluation Board - SB0800, Octal Valve/Pump Controller SoC
ダウンロード
1 ダウンロード
-
BSPとデバイスドライバ
Processor Expert Valve Driver Package
