S12VR32EVB
-
S12VR32EVB.
- S12VR32 Evaluation Board
デザイン・ファイル
1 設計・ファイル
-
プリント基板と回路図
S12VR32EVB Schematics
S12VR32 Relay-based Motor Control Evaluation Board
S12VR32EVB アラートの受信

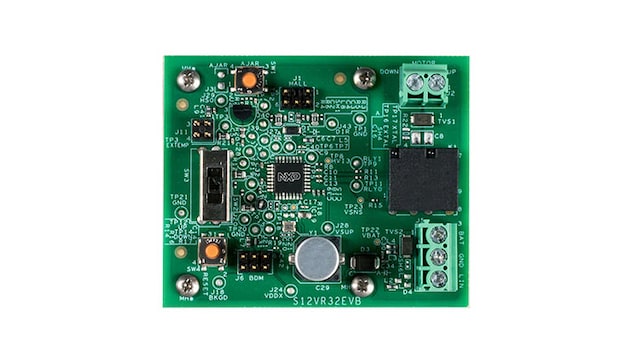

The S12VR32EVB is a development board for the S12 MagniV® S12VR32 16-bit MCUs for motor control relay based applications. The S12VR32 integrates an S12 CPU, a LIN physical interface, a 5V regulator system to supply the microcontroller and low-side drivers to control the relay.
The S12VR32EVB is an ultra-low-cost development platform that includes a relay, a hall sensor interface, an external 16 MHz oscillator, a switch button, access to all pins through test points and an onboard open source BDM.
製品詳細
Features
Microcontroller
- MC9S12VR32 MCU in 32 pins LQFP
- BDM Connector
- Hall Sensor Connector
- Connector for external temperature sensor
- Connector for LIN output
- Connector for motor control
