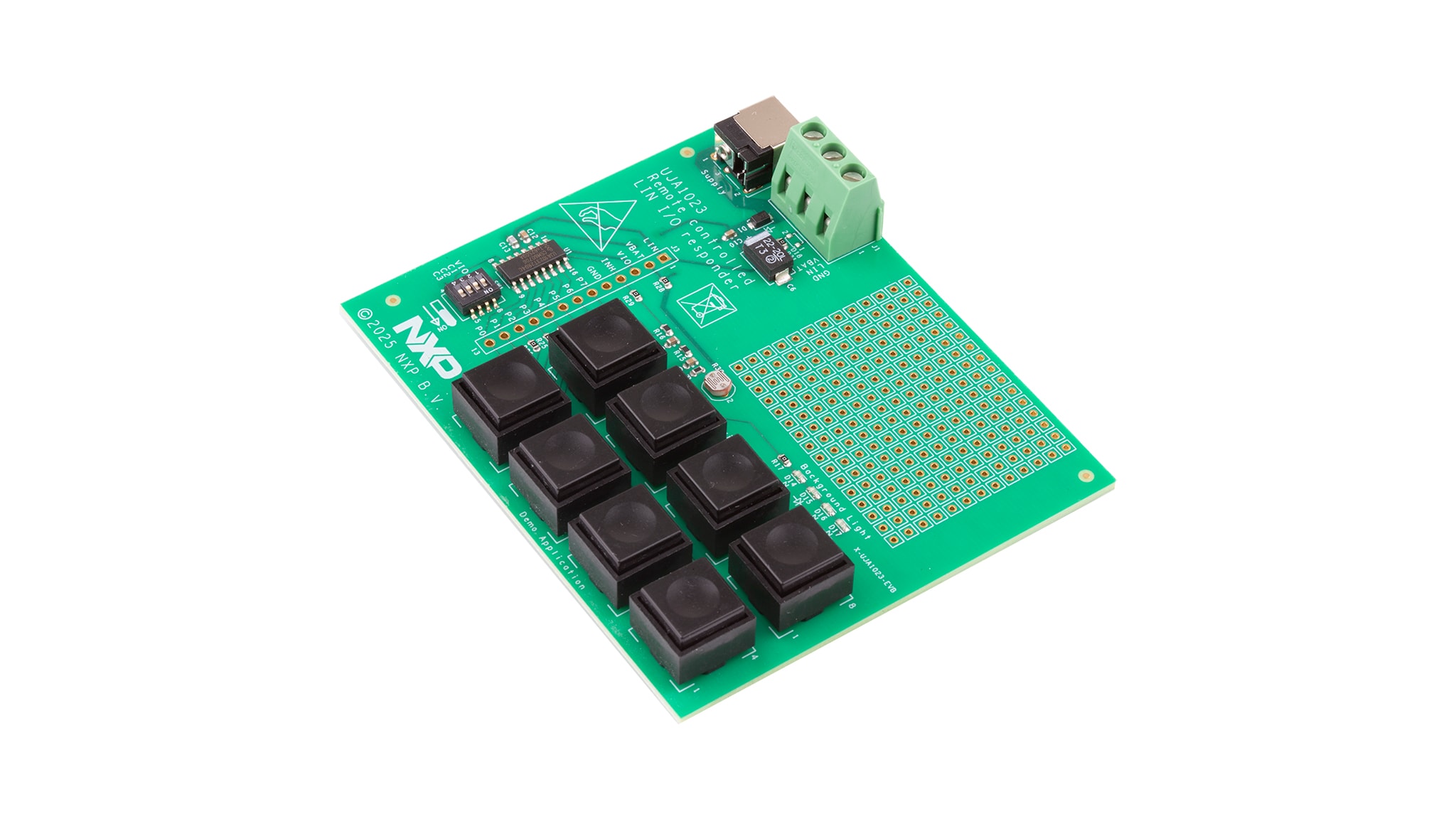

UJA1023 Remote Controlled LIN I/O Responder EVB
- This page contains information on a preproduction product. Specifications and information herein are subject to change without notice. For additional information please contact your sales representative.
This UJA1023 EVB enables the customer to perform quick evaluation as a LIN responder module. Customers can easily use the S1-S8 button to control the background light (input to P0-P2) and the rest 5x I/Os are reserved for customer's own usage. The C1-C3 can be used as responder node address in a bigger LIN network. This remote Controlled LIN I/O EVB can save the MCU in the responder module, but still capable of performing basic sensor/actuator functions in the edge.
製品詳細
Features
- UJA1023T integrates LIN transceiver, LIN controllers, 8x I/Os, 4 x 2, 4 x 3, or 4 x 4 switch matrix to support reading and supplying a maximum number of 16 switches
- The EVB provides some example actuator/sensors but also reserved I/Os for customer's application needs.
- P0-P5: reserved input for customer's application
- P6: sensor ADC input
- P7: background light
- C1 - C3: can be used as responder node address in a bigger LIN network.
- This remote-controlled LIN I/O EVB can work without MCU in the responder module, but still capable of performing basic sensor/actuator functions, remotely-controlled by LIN commander
