QorIQ® T1023 Development Board

T1023-RDB

画像にカーソルを合わせると拡大表示されます。

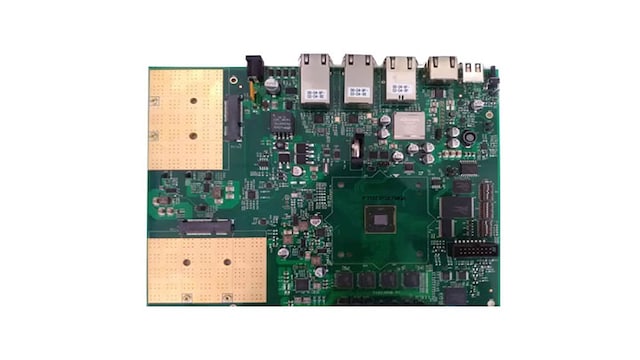

The QorIQ® T1023 Reference Design Board (T1023RDB) is a high-performance evaluation, development and test platform supporting the QorIQ T1023 communications processor. The board will support the evaluation and development of the dual-core T1023 and the single-core T1013 communications processors built on Power Architecture® technology.

This system addresses networking and Ethernet-centric applications, such as mixed control and data plane in fixed routers, switches, Internet access devices, industrial data concentrators, factory automation, firewall and other packet filtering applications, as well as general-purpose embedded computing. The QorIQ T1023RDB will help shorten your time to market. This system is an ideal reference for your hardware and software development, debugging and performance evaluation prior to production.

ブロック図

T1023 RDB BD

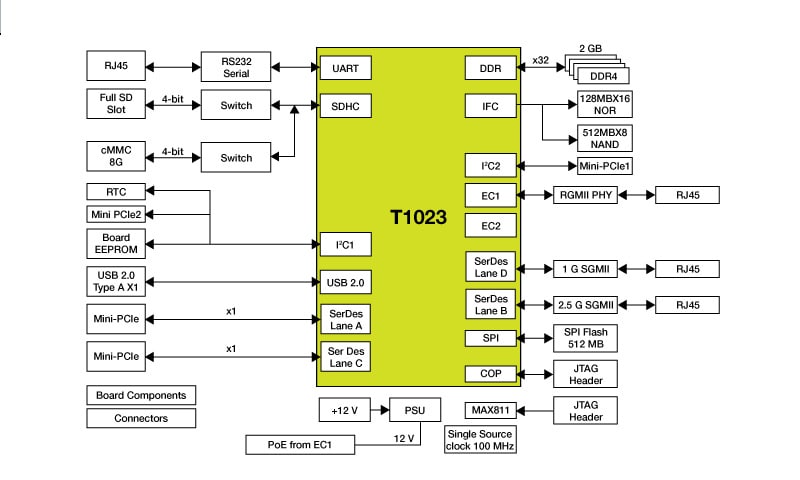

QorIQ T1023 Reference Design Board Block Diagram
図を取得する PDF

対応製品

プロセッサ＆マイクロコントローラ

Tシリーズ

  • T1024: QorIQ® T1024/14 and T1023/13 Dual- and Single-Core Communications Processors

Features

Processor

  • QorIQ® T1023 64-bit processor at 1.4 GHz dual-core
  • Multiple SysClk inputs for generating various device frequencies

Memory

  • 2 GB DDR4 SDRAM UDIMM/RDIMM (32-bit bus)
  • 128MB NOR Flash, 16-bit
  • 512 MB SLC NAND Flash
  • SD Connector to Interface

PCI Express

  • Two Mini-PCIe connectors Gen 2.0

USB 2.0

  • One USB slot, connected to USB PHY

Ethernet

  • WLAN 802.11ac 4x4 radio
  • One onboard SGMII 10/100/1G Ethernet port
  • One onboard SGMII 2.5 G Ethernet port
  • One onboard RGMII 10/100/1G Ethernet port

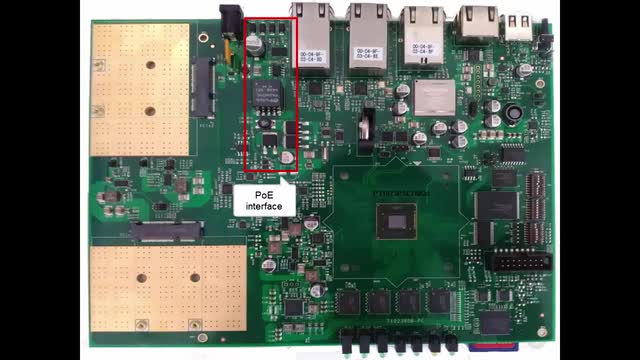

  • PoE (Power over Ethernet)

UART

  • One UART port at up to 115200 bps

Others

  • JTAG/COP for debugging
  • Thermal monitor
