MCXW236AUK-RDM Board User Manual[UM12388]
ユーザ・ガイド (1)
-
Getting Started with MCXW236AUK-RDM[GS-MCXW236AUK-RDM]はじめに
コンパクトリスト
MCXW236AUK-Radio Device Module
- 本ページには、試作段階の製品に関する情報が含まれています。記載されている仕様および情報は、予告なく変更される場合があります。詳細については、担当営業までお問い合わせください。

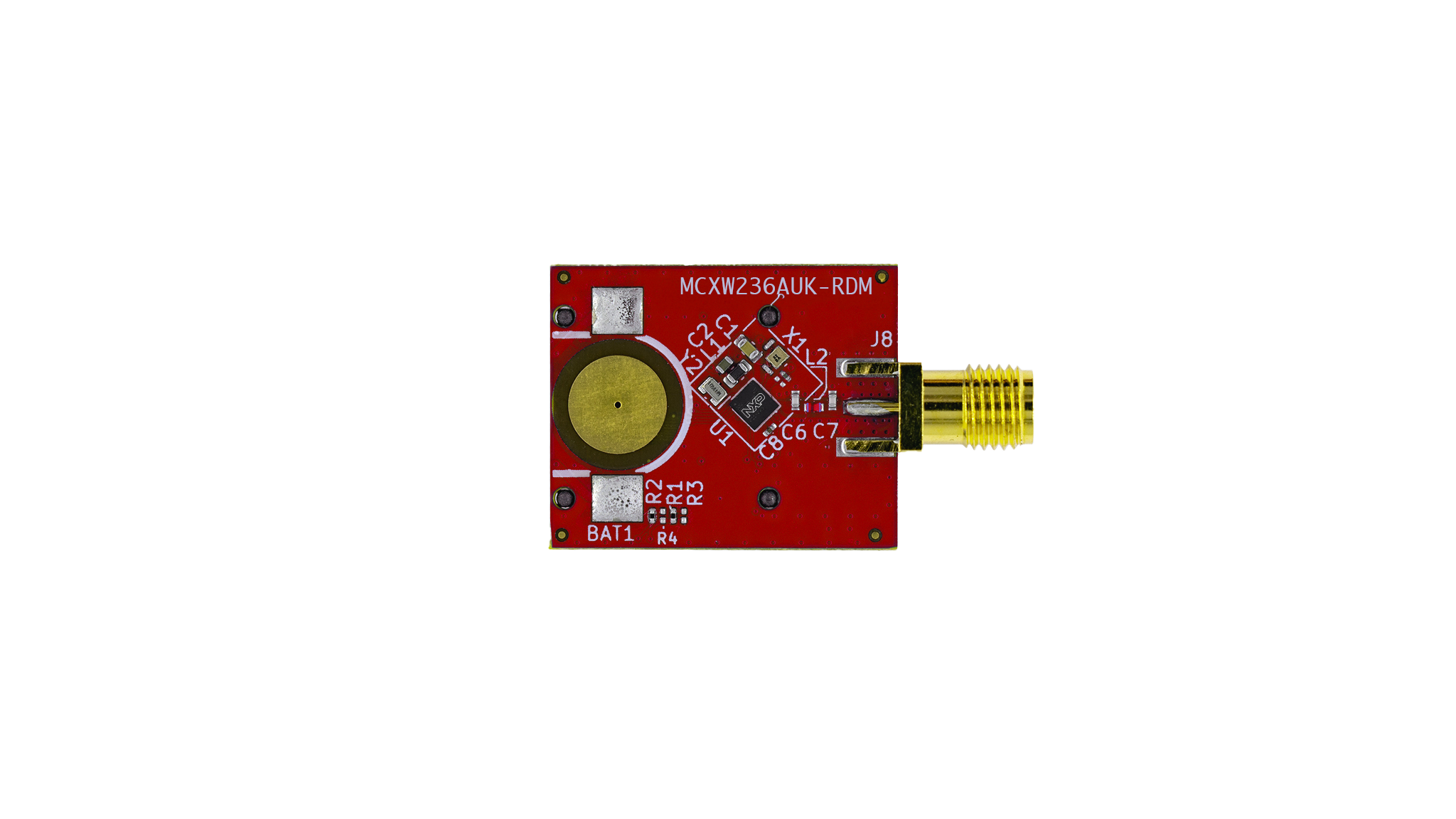

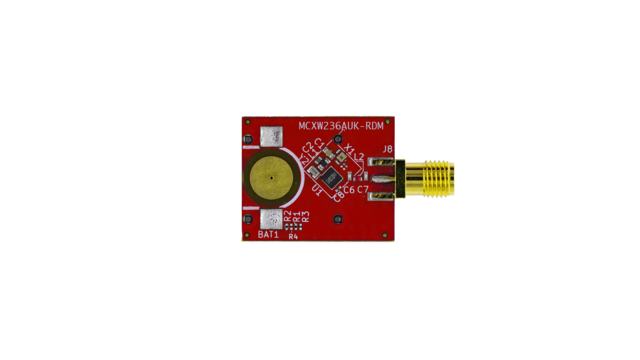

The MCXW236AUK-RDM are highly configurable, low-power, and cost-effective evaluation and development board for application prototyping and demonstration of the MCXW236AUK device. The MCXW236AUK constitutes a highly integrated, single chip ultra-low power Bluetooth low Energy 5.3 wireless transceiver with embedded microcontroller and flash, targeted at internet of things (IoT) application.
製品詳細
Features
Connectivity
- NXP's ultra-low-power MCXW236AUK Wireless microcontroller unit (MCU) supporting Bluetooth LE
- Fully compliant with Bluetooth 5.3 LE
Reference Design with Small-Footprint, Low-Cost RF Node
- Single-ended input/output port
- Low-count of external components
- Maximum output power can reach up to +6 dBm at the SubMiniature version A (SMA) connector
Selectable Power Source
- Configuration is done through solder jumpers
- DC/DC converter
- MCXW236AHN: boost capability for operation on the 1.5 V battery
- 32 MHz reference oscillator for radio frequency (RF) operation
- 32.768 kHz reference oscillator used for low power operation
Flexible RF Transmitter Level Configuration
- TX Mode 1 (TXM1): Range from -31 dBm to +2 dBm when VDD_RF exceeds 1.1 V (default-configured mode)
- TX Mode 2 (TXM2): Range from -28 dBm to +6 dBm when VDD_RF exceeds 1.7 V
Packaging
- Printed circuit board (PCB) Marking: MCXW236AUK-RDM
- A 4-layer PCB with micro and blind vias
- PCB color: Red
