Evaluation Kit for MC33814, 2 Cylinder Small Engine Control

KIT33814AEEVBE アクティブ

画像にカーソルを合わせると拡大表示されます。

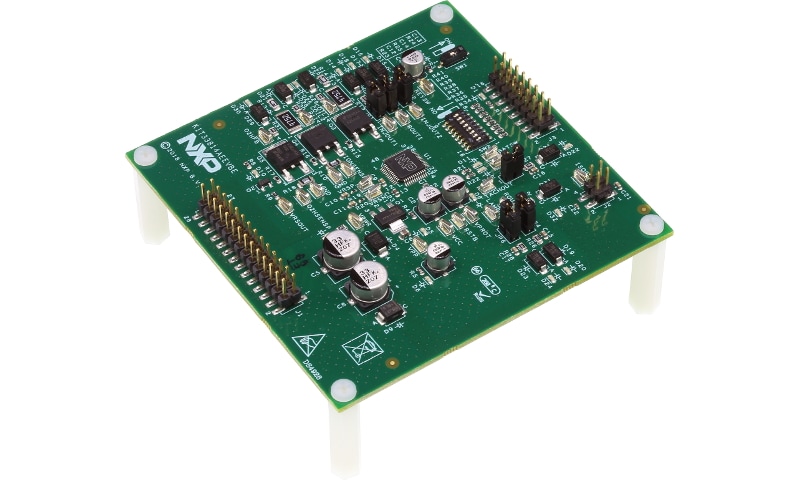

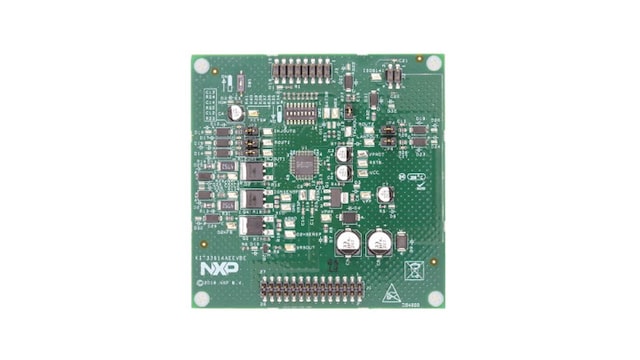

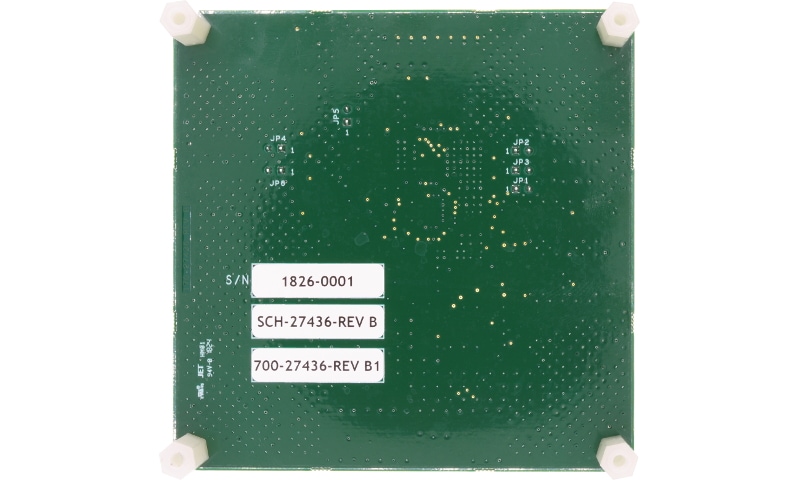

The KIT33814AEEVBE evaluation board (EVB) is an easy-to-use circuit board that allows you to exercise the functions of the NXP® MC33814 two cylinder small engine control IC.

A PC communicates to the EVB through a USB/SPI Dongle (KITUSBSPIDGLEVME) connected to the PC’s USB port. The NXP SPIGen program provides the user interface to the MC33814 SPI (serial peripheral interface) port and allows you to send commands to the IC and receive status from the IC.

製品詳細

対応製品

パワーマネージメント

パワートレイン＆エンジン制御

  • MC33814: Two Cylinder Small Engine Control IC

Features

Key Features

  • MCU reset generator - system integrity monitor (watchdog)

Connectivity

  • Interfaces directly to MCU using a 5.0 V SPI and logic I/O

Power Management

  • Designed to operate over supply voltage range of 4.5 V ≤ VPWR ≤ 36 V
  • Logic stability guaranteed down to 2.5 V
  • VPROT protected sensor supply tracks VCC +5.0 V regulator
  • VPP preregulator provides power for VCC and VPROT regulators
  • Keyswitch logic with provision for power relay and MCU controlled shutdown

Drivers

  • One O2 sensor (HEGO) heater general-purpose gate pre-driver
  • Two fuel injector drivers - typically 1.3 A
  • Two ignition IGBT or general-purpose gate predrivers
  • Relay 1 driver, typically 2.0 A, can be used for fuel pump control
  • Relay 2 driver, typically 1.0 A, can be used as power relay control
  • Lamp driver, typically 1.0 A can also be used to drive an LED

Components

  • Independent fault protection with all faults reported via the SPI
  • ISO 9141 K-Line interface for communicating diagnostic messages

購入オプション

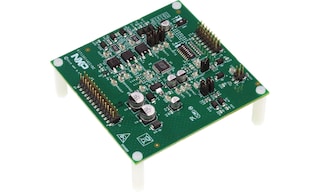

KIT33814AEEVBE-Image

クリックして展開

  • KIT33814AEEVBE
    アクティブ

  • Evaluation Kit - MC33814, Two Cylinder Small Engine Control IC.

    • KIT33814AEEVBE Hardware
    • Quick Reference Guide
  • $228.00 USD
  • の数量に対して 1
    • 在庫: 保留中の在庫
カートに入れる
代理店からの注文
N true 0 TSPKIT33814AEEVBEja 2 データ・シート Data Sheet t520 1 ユーザ・ガイド User Guide t792 1 ja 2 1 14.0 English The 33814 is an engine control analog power IC intended for two cylinder motorcycle and other small engine control applications. The IC consists of low side drivers, pre-drivers, a Variable Reluctance Sensor (VRS) input circuit, a voltage pre-regulator and two 5 volt internal regulators. Also included is a microcontroller unit (MCU), reset control circuit with watchdog, an ISO 9141 K-Line interface for diagnostic communication and a Serial Peripheral Interface (SPI). 1345133750403711686776 TSP 3.5 MB None None documents None 1345133750403711686776 /docs/en/data-sheet/MC33814.pdf 3470833 /docs/en/data-sheet/MC33814.pdf MC33814 N N 2017-07-11 Two cylinder small engine control IC - Data sheet /docs/en/data-sheet/MC33814.pdf /docs/en/data-sheet/MC33814.pdf Data Sheet N Y 980000996212993340 2022-12-07 pdf N en Oct 23, 2020 Data Sheet t520 データ・シート Data Sheet Y N Two cylinder small engine control IC - Data sheet 2 3.0 English The KIT33814AEEVBE Evaluation Board is an easy-to-use circuit board that allows the user to exercise all the functions of the MC33814 two cylinder small engine control IC. 1357583465612702223411 TSP 8.5 MB None None documents Y None 1357583465612702223411 /docs/en/user-guide/KT33814UG.pdf 8485280 /docs/en/user-guide/KT33814UG.pdf KT33814UG N N 2018-11-05 KIT33814AEEVBE, Evaluation Board - User Guide /docs/en/user-guide/KT33814UG.pdf /docs/en/user-guide/KT33814UG.pdf User Guide N Y 132339537837198660 2023-06-19 pdf N en Nov 5, 2018 User Guide t792 ユーザ・ガイド User Guide Y N KIT33814AEEVBE, Evaluation Board - User Guide false ja 0 false ja false 0 KIT33814AEEVBE downloads ja true 0 Y TSP データ・シート 1 /docs/en/data-sheet/MC33814.pdf 2017-07-11 1345133750403711686776 TSP 1 Oct 23, 2020 Data Sheet データ・シート The 33814 is an engine control analog power IC intended for two cylinder motorcycle and other small engine control applications. The IC consists of low side drivers, pre-drivers, a Variable Reluctance Sensor (VRS) input circuit, a voltage pre-regulator and two 5 volt internal regulators. Also included is a microcontroller unit (MCU), reset control circuit with watchdog, an ISO 9141 K-Line interface for diagnostic communication and a Serial Peripheral Interface (SPI). None /docs/en/data-sheet/MC33814.pdf English 3470833 None Data Sheet 2022-12-07 N /docs/en/data-sheet/MC33814.pdf Two cylinder small engine control IC - Data sheet /docs/en/data-sheet/MC33814.pdf documents 980000996212993340 Data Sheet N Y en None Y t520 pdf 14.0 N N Two cylinder small engine control IC - Data sheet 3.5 MB MC33814 N 1345133750403711686776 ユーザ・ガイド 1 /docs/en/user-guide/KT33814UG.pdf 2018-11-05 1357583465612702223411 TSP 2 Nov 5, 2018 User Guide ユーザ・ガイド The KIT33814AEEVBE Evaluation Board is an easy-to-use circuit board that allows the user to exercise all the functions of the MC33814 two cylinder small engine control IC. Y None /docs/en/user-guide/KT33814UG.pdf English 8485280 None User Guide 2023-06-19 N /docs/en/user-guide/KT33814UG.pdf KIT33814AEEVBE, Evaluation Board - User Guide /docs/en/user-guide/KT33814UG.pdf documents 132339537837198660 User Guide N Y en None Y t792 pdf 3.0 N N KIT33814AEEVBE, Evaluation Board - User Guide 8.5 MB KT33814UG N 1357583465612702223411 true Y Tools
