AP13192USLK
-
ZIGBEE MODULE FOR UNIVERSITY PROJECT BRD.
設計・ファイル
1 設計・ファイル
-
プリント基板と回路図
AP13192USLKSCHEM_F

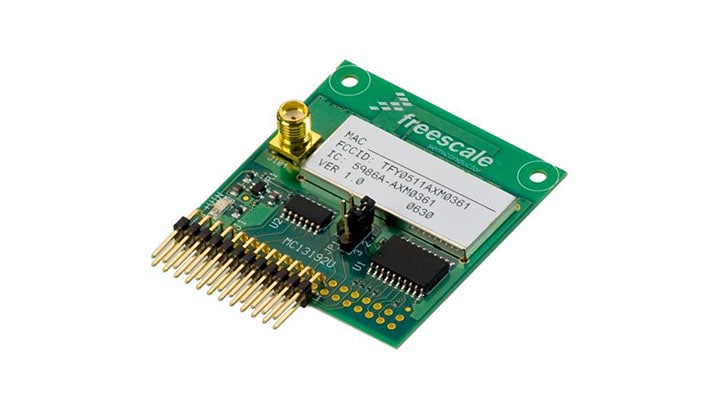

AP13192USLK ZigBee-ready RF Transceiver Student Learning Kit
ZIGBEESLK アラートの受信
Easily add RF capability to course or projects
Can be used for Simple MAC or Zigbee communications
Common Course Applications
- Wireless sensing and control
- Introduction to communication protocols
- Wireless home automation
Use for courses/projects that…
- require low-power, medium data rate wireless communication
- want to show a variety of network deployment configuration
- are targeted for intermediate to advanced level
This application module can be...
- connected directly to a Application Module
- plug the RF Transceiver directly into the application module (*connector gender changers may be required)
- increased I/O features
- more hand-on approach
- accepts multiple microcontrollers
- integrated BDM interface
- large bread-board area
- Purchase AP13192USLK to receive TWO RF-Transceivers
購入オプション
ドキュメンテーション
クイック・リファレンス ドキュメンテーションの種類.
1-5 の 16 ドキュメント
-
リファレンス・マニュアル
MC13192 Reference Manual注目
-
リファレンス・マニュアル
802.15.4 MAC/PHY Software Reference Manual
-
アプリケーション・ノート
AN1902: Assembly guidelines for QFN and SON packages
