MPC5777C|Engine Control MCU

The MPC5777C Power Architecture^® MCU targets industrial and automotive engine control applications that require advanced performance, timing systems, security, and functional safety capabilities. The family offers a high-performance multicore architecture with industry standard eTPU based timer system. A Flash offering that supports code expansion, a security module, and packaging options are available along with the highest level of functional safety (ASIL-D) support.

データシート

リファレンス・マニュアル

製品詳細

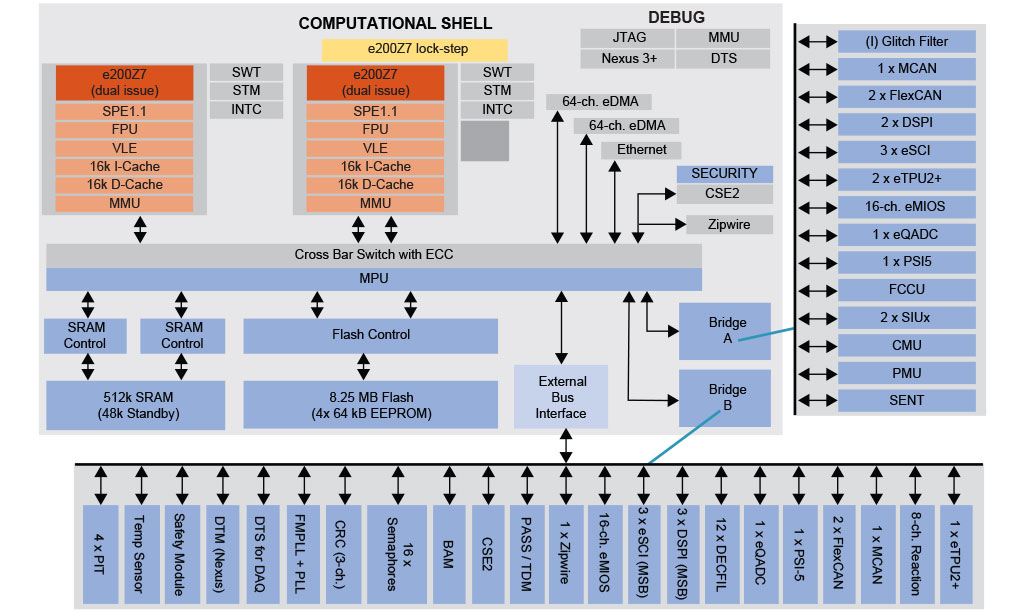

ブロック図

MPC5777C Block Diagram

図を取得する PDF

Features

General

Two independent Power Architecture z7 cores with up to 300 MHz operation
Single z7 core in Lockstep with one of the main cores
8M Flash
512kB total SRAM
3 eTPU2 timers with 96 channels
eMIOS timer with 32 channels
Ethernet 10/100
Four Sigma Delta and four eQADC converters
Built to support functional safety (ISO 26262/ASIL-D)
416 and 516 BGA
-40 to 125C Ta Operation

部品番号： SPC5777CDK3MME3, SPC5777CDK3MME4, SPC5777CDK3MMO3, SPC5777CDK3MMO4.

SafeAssure Program

When it comes to functional safety, NXP stands for quality and reliability. Our SafeAssure program simplifies system-level safety requirements in accordance with ISO 26262.
Read more
