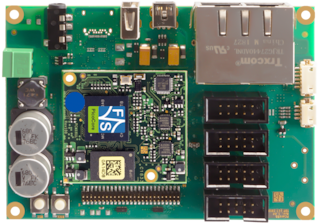

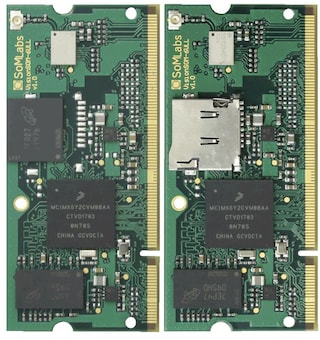

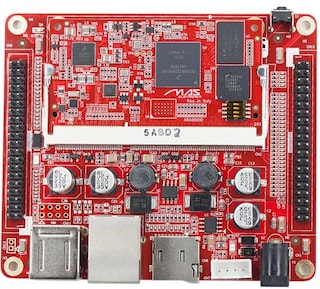

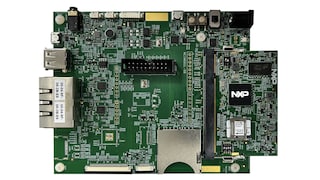

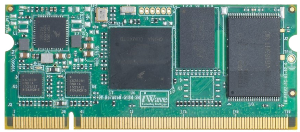

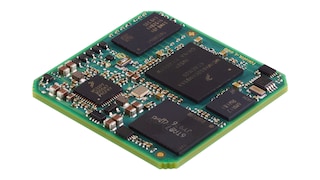

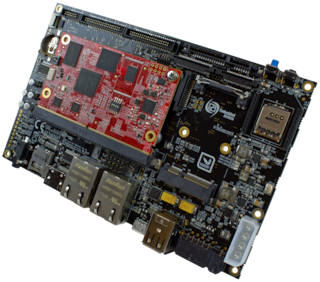

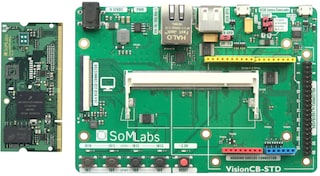

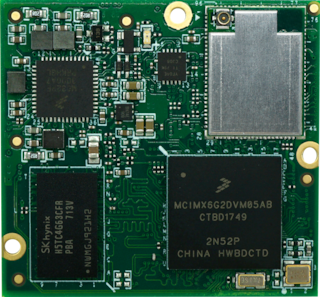

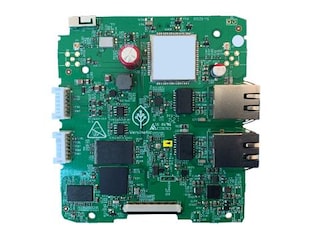

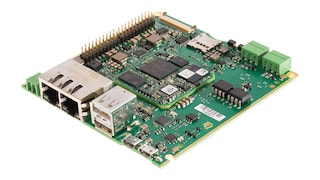

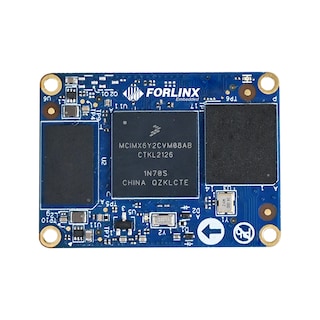

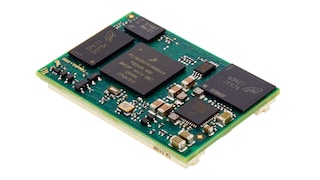

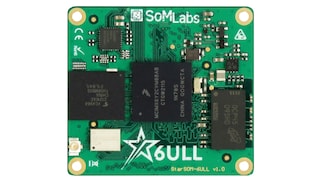

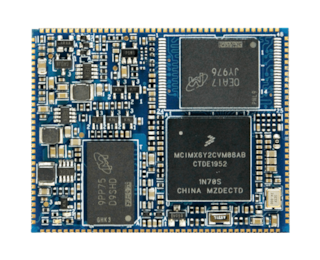

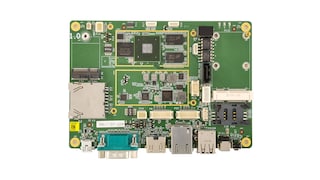

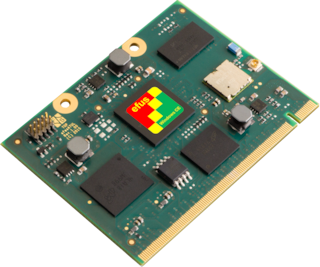

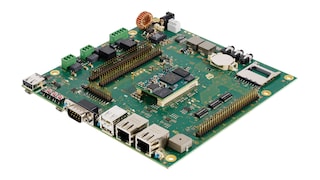

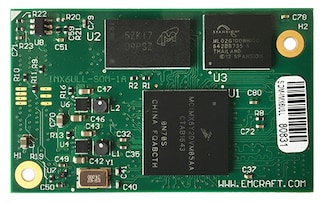

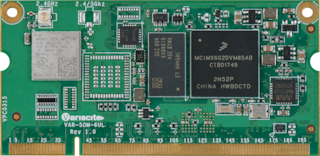

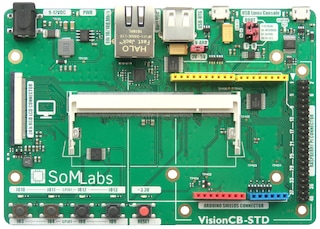

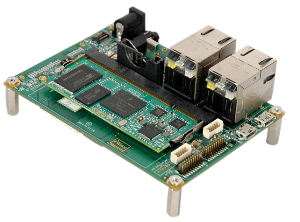

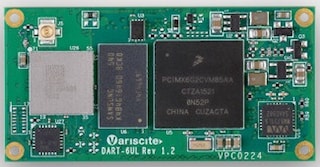

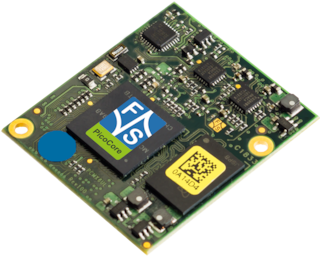

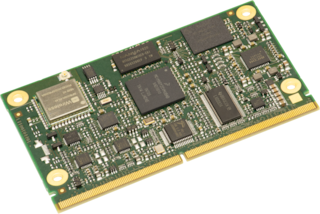

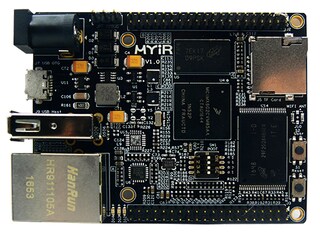

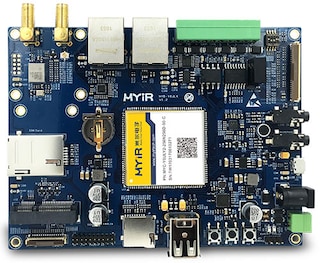

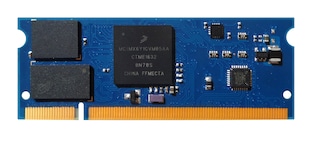

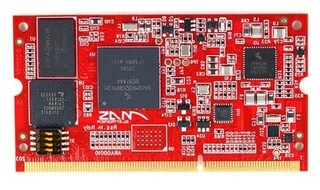

i.MX 6ULL Applications Processor | Single Arm® Cortex®-A7 @ 900 MHz

動画の上をクリックすると再生されます。

The i.MX 6ULL is a power efficient and cost-optimized applications processor family featuring an advanced implementation of a single Arm Cortex-A7 core, which operates at speeds up to 900 MHz. The i.MX 6ULL applications processor includes an integrated power management module that reduces the complexity of an external power supply and simplifies power sequencing. Each processor in this family provides various memory interfaces, including 16-bit LPDDR2, DDR3, DDR3L, raw and managed NAND flash, NOR flash, eMMC, Quad SPI and a wide range of other interfaces for connecting peripherals such as WLAN, Bluetooth^®, GPS, displays and camera sensors.

データシート

リファレンス・マニュアル

製品詳細

ブロック図

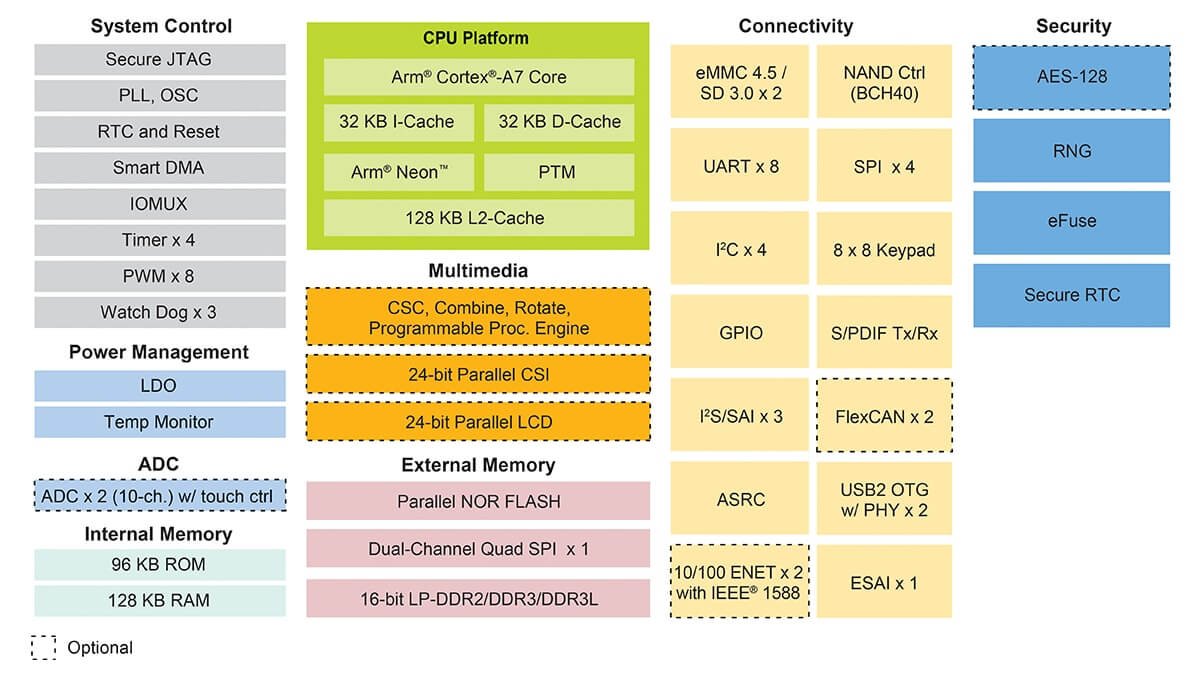

i.MX 6ULL Block Diagram

図を取得する PDF

Features

CPU Complex

Cortex-A7 core up to 900 MHz, 128 KB L2 cache

Display

Parallel LCD Display up to WXGA (1366x768)
8/10/16/24-bit Parallel Camera Sensor Interface
Electrophoretic display controller support direct-driver for E-Ink EPD panel, with up to 2048x1536 resolution at 106 Hz

Memory

16-bit LP-DDR2, DDR3/DDR3L
8/16-bit Parallel NOR FLASH / PSRAM
Dual-channel Quad-SPI NOR FLASH
8-bit Raw NAND FLASH with 40-bit ECC

Connectivity

2x MMC 4.5/SD 3.0/SDIO Port
2x USB 2.0 OTG, HS/FS, Device or Host with PHY
Audio Interfaces include 3x I2S/SAI, S/PDIF Tx/Rx
2x 10/100 Ethernet with IEEE 1588
2x 12-bit ADC, up to 10 input channel total, with resistive touch controller (4-wire/5-wire)

Advanced Power Management

Partial PMU Integration

Security

Security Block: TRNG, Crypto Engine (AES with DPA, TDES/SHA/RSA), Secure Boot

Package

14x14 289 MAPBGA 0.8mm pitch
9x9 272 MAPBGA 0.5 mm pitch
