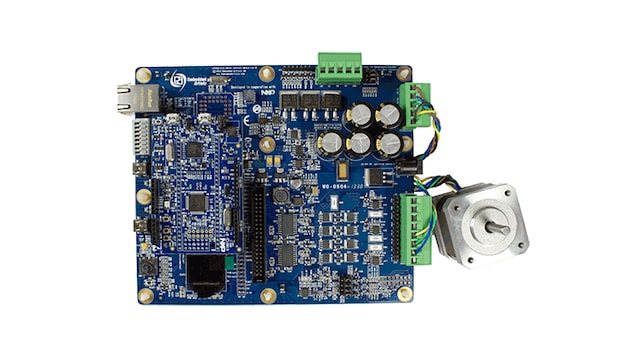

LPC1549 LPCXpresso Motor Control Kit (BLDC)
- このページには、製造中止（生産終了）となった製品の情報が記載されています。本ページに記載されている仕様および情報は、過去の参考情報です。
This board is no longer manufactured and will only be available while supplies last.
The OM13068UL is being discontinued, please pick your MCU with either the FRDM-KE16Z, FRDM-KV11Z, or FRDM-KV31F development board depending on your application and then mate that with either the FRDM-MC-LVBLDC for BLDC applications or FRDM-MC-LVPMSM PMSM applications. If you don’t have your own motor, buy the FRDM-MC-LVMTR as well. All the links are listed below.
Select your MCU:
Select your type of Motor:
Add a motor if you don’t have one:
The LPC1500 family is still available for new designs and is supported by the LPCXpresso1549 development board.
LPC1500 marketing category page製品詳細
Features
Microcontroller
- LPC1549 Arm Cortex-M3-based microcontroller
Memory
- 256 kB of flash memory, 32 kB of ROM, 4 kB EEPROM, and up to 36 kB of SRAM I2C-E2PROM
Connectivity
- SWD/JTAG connector
- 2.1 mm input jack, or via screw terminals
Power Management
- Voltage measurement (on three phases and virtual ground)
- Current measurement (on three phases and common low-side)
- Input current measurement, including over-current trip
- 12 - 30 V input voltage, 17 A max. current (max. 300 W output)
- On-board 15 W power supply (+11 V, +5 V, +3.3 V)
- 12 - 30 V, 17 A max
Interface
- USB interface (must be supported by controlled MCU)
- Ethernet interface (must be supported by controlled MCU)
- CAN interface (must be supported by controlled MCU)
- RS422/485 interface
- UART-to-USB interface
Sensors
- Hall and QEI sensor inputs, connected via screw terminals
- Temperature sensor
Display
- 96 x 64 pixel OLED
- Socket for LPC1xxx in PLCC44
- Expansion connector for control by LPC1800/LPC4000/LPC2900 families, or other 4 phases (based on NXP® PSMN2R6-40YS N-channel MOSFET), accessed via screw terminals
- Phase control support 100 % duty cycle
- Break functionality
User Components
- 5-key joystick switch
- Reset pushbutton
