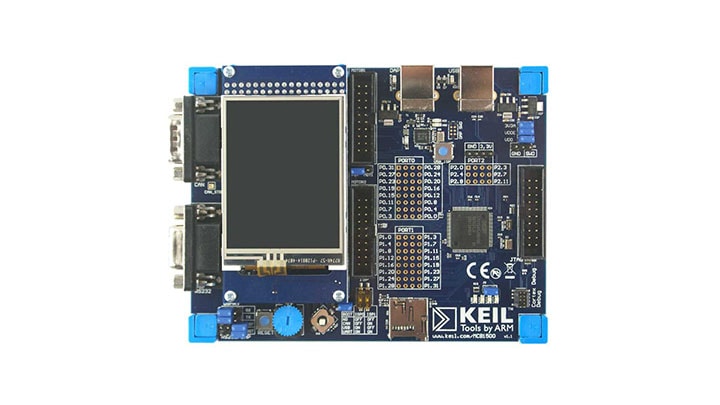

Keil MCB1549 Evaluation Board

OM13064

画像にカーソルを合わせると拡大表示されます。

This board is no longer in production. The replacement for this board is the OM13056

The Keil MCB1549 Evaluation Board introduces you to the NXP® LPC1500 family and allows you to create and test working programs for this advanced architecture.

The MCB1549 Evaluation Board include MDK-Arm Evaluation Tools . These tools help you get started writing programs and testing the microcontroller and its capabilities. Many sample applications including several USB examples and quick start guide for the MCB1549 are included.

製品詳細

セクションを選択:

対応製品

プロセッサ＆マイクロコントローラ

LPC1500 Cortex-M3

  • LPC1517JBD48: Motion Control 32-bit Microcontroller based on Arm® Cortex®-M3
  • LPC1517JBD64: Motion Control 32-bit Microcontroller based on Arm® Cortex®-M3
  • LPC1518JBD100: Motion Control 32-bit Microcontroller based on Arm® Cortex®-M3
  • LPC1518JBD64: Motion Control 32-bit Microcontroller based on Arm® Cortex®-M3
  • LPC1519JBD100: Motion Control 32-bit Microcontroller based on Arm® Cortex®-M3
  • LPC1519JBD64: Motion Control 32-bit Microcontroller based on Arm® Cortex®-M3
  • LPC1547JBD48: Motion Control 32-bit Microcontroller based on Arm® Cortex®-M3
  • LPC1547JBD64: Motion Control 32-bit Microcontroller based on Arm® Cortex®-M3
  • LPC1548JBD100: Motion Control 32-bit Microcontroller based on Arm® Cortex®-M3
  • LPC1548JBD64: Motion Control 32-bit Microcontroller based on Arm® Cortex®-M3
  • LPC1549JBD100: Motion Control 32-bit Microcontroller based on Arm® Cortex®-M3
  • LPC1549JBD48: Motion Control 32-bit Microcontroller based on Arm® Cortex®-M3
  • LPC1549JBD64: Motion Control 32-bit Microcontroller based on Arm® Cortex®-M3

Features

Processor

  • 72 MHz LPC1549 with Cortex-M3 processor in LQFP100 package

Memory

  • 36 kB On-Chip SRAM
  • 256 kB On-Chip Flash
  • MicroSD Card Interface

Connectivity

  • CAN interfaces
  • Serial/UART Port
  • DAP connector
  • Full speed USB 2.0

Power Management

  • Analog Voltage Control for ADC Input

Debug

    Debug Interface Connectors:

  • 20-pin JTAG (0.1 inches)
  • 10-pin Cortex debug (0.05 inches)
  • 20-pin Cortex debug + ETM Trace (0.05 inches)

Display

  • Color QVGA TFT LCD with touchscreen

購入オプション

  • OM13064

  • Keil MCB1549 Evaluation Board.

    • MCB1549 Development Board
  • JP¥40,474
  • の数量に対して 1
