Power Management for i.MX50/53 Processors

画像にカーソルを合わせると拡大表示されます。

製品詳細

セクションを選択:

ブロック図

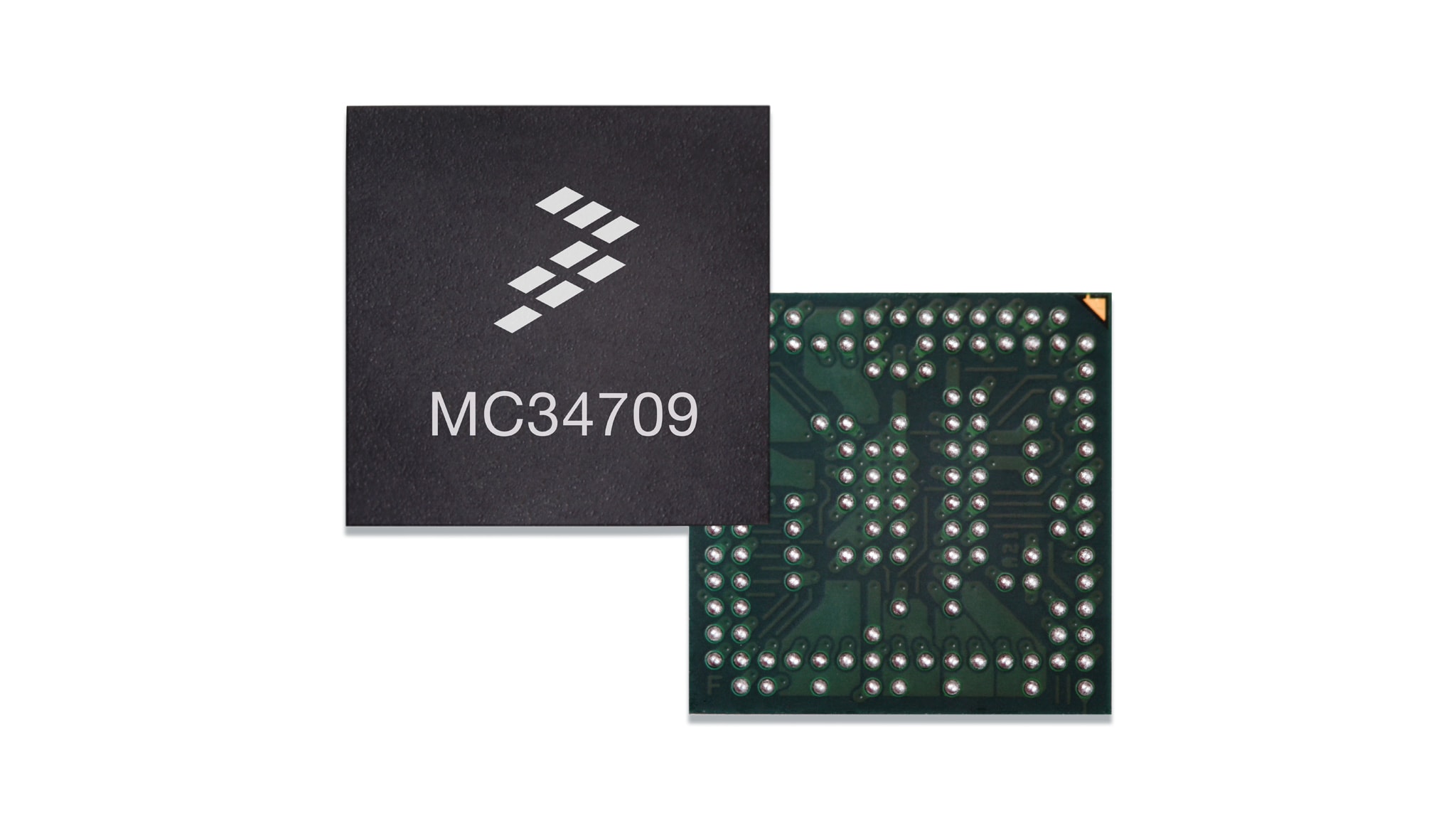

MC34709

MC34709 Block Diagram

Features

Power Supplies

  • Six multi-mode buck regulators
    • Two single/dual-phase buck regulators
    • Three single-phase buck regulators
    • Up to six independent outputs
    • PFM/PWM operation mode
    • Dynamic voltage scaling
  • 5 V boost regulator
    • Support for USB physical layer on i.MX processor (USB PHY)
  • Eight LDO regulators
    • Two with selectable internal or external pass devices
    • Four with embedded pass devices
    • One with an external PNP device
    • Voltage reference for DDR memory with internal PMOS device
  • Hardware programmable power-up sequence

10-Bit ADC Core

  • Seven general purpose ADC channels
  • Dedicated channels for monitoring die temperature and coin cell voltage
  • Resistive touchscreen interface

Auxiliary Circuits

  • General purpose I/Os
  • PWM outputs

Clocking and Oscillators

  • Real time clock
  • Time and day counters
  • Time of day alarm
  • 32.768 kHz crystal oscillator
  • Coin cell battery backup and charger

Serial Interface

  • SPI / I2C communication protocol

Key Features

  • I2C interface and input control
  • i.MX35, i.MX37, i.MX50, i.MX51 and i.MX53 MCU supported
