PF Series Programmer

KITPFPGMEVME アクティブ

画像にカーソルを合わせると拡大表示されます。

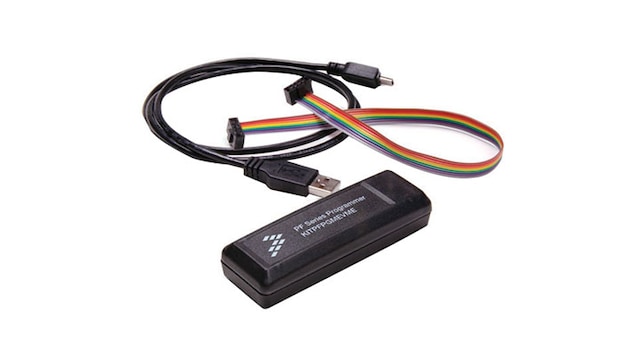

The NXP® PF series programmer is a development tool designed to provide easy configuration of PF series devices and to facilitate programming the device’s one-time programmable (OTP) registers.

For additional information and sample availability, contact your local NXP Sales Office.

NXP recommends the use of the KITPF0100SKTEVBE to support programming and verification of the MMPF0100 devices, while using the KITPFPGMEVME.

Note: Please download the Rev 4.0 GUI for Revision B KITPFPGMEVME boards.

製品詳細

対応製品

パワーマネージメント

PMIC

  • MMPF0100: 14-Channel Configurable PMIC

Features

Connectivity

  • USB to I2C interface to access device registers
  • Standard mini-USB (Type B) connector for communication with PC

Power Management

  • Generates voltage for programming the OTP registers

User Components

  • LED indicators for easy monitoring of programming status

General Specifications

  • Graphical user interface (GUI) to program regulator voltages and start up sequences, save, and recall user-defined configuration files and develop configuration macros with a powerful scripting tool

購入オプション

KITPFPGMEVME-Image

クリックして展開

  • KITPFPGMEVME
    アクティブ

  • Evaluation Kit Programmer - PF Series Programmer.

    • KITPFPGMEVME hardware
    • Various Cables (2)
    • Quick Reference Guide
  • $135.70 USD
  • の数量に対して 1
    • 在庫: 在庫あり
    • 在庫: 4
    • 配送: 通常 1～2営業日以内に配送
カートに入れる
代理店からの注文
