High-Voltage I²C Controlled Overvoltage Protection Load Switch

ブロック図

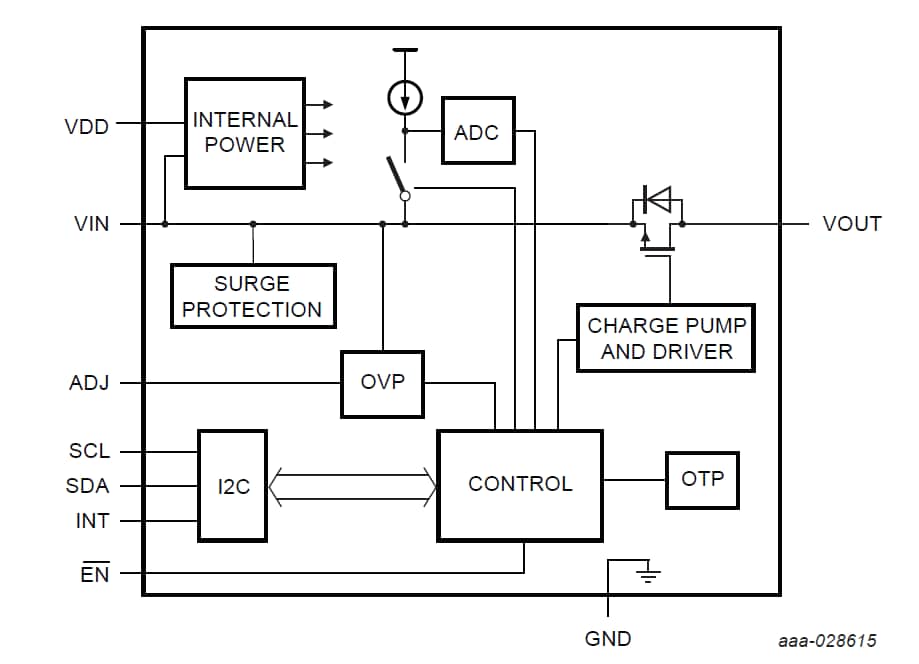

NX30P6093 Block Diagram

NX30P6093 Block Diagram

Features

Microcontrollers (MCUs)

  • Wide supply voltage range for VIN from 2.8 V to 20.0 V
  • System Power supply VDD from 3.0 V to 4.5 V
  • ISW maximum 8 A continuous current
  • 29 V tolerance on VIN pin
  • 8.95 mΩ (typical) ultra-low ON resistance
  • Adjustable VIN overvoltage protection by both external resistor and I²C
  • Built-in slew rate control for inrush current limit
  • Integrated current source for VIN pin impedance detection

Protection Circuitry

  • Overtemperature protection
  • Overvoltage protection
  • Undervoltage lockout

Surge Protection

  • IEC61000-4-5 exceeds ±100 V on VIN

ESD Protection

  • IEC61000-4-2 contact discharge exceeds 8 kV on VIN
  • IEC61000-4-2 air discharge exceeds 15 kV on VIN
  • HBM ANSI/ESDA/JEDEC JS-001 Class 2 exceeds 3 kV on all pins
  • MM Class B exceeds 100 V on all the pins

Product Longevity Program

  • This product is included in the NXP Product Longevity Program ensuring a stable supply of products for your embedded designs. TheNX30P6093UK is included in the 10-year program

部品番号: NX30P6093UK.
