LPCXpresso54618 CAN-FD kit

OM13094

画像にカーソルを合わせると拡大表示されます。

This board is no longer in production. The replacement for this board is the OM13098 and OM13099

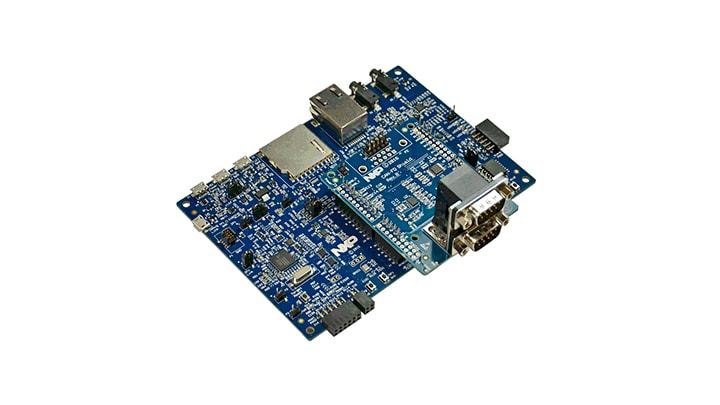

The LPCXpresso54618 CAN-FD kit provides a flexible platform for developers wanting to evaluate and develop with CAN-FD on the LPC5461x family of devices. This kit is comprised of an LPCXpresso54618 board featuring an LPC54618 MCU with an onboard, CMSIS-DAP / SEGGER J-Link compatible debug probe, and a daughter card (also known as a shield board) with a dual CAN-FD transceiver and RS232C interface. The onboard probe is compatible with MCUXpresso IDE and other leading toolchains such as those from Keil and IAR. The board is also equipped with a standard 10-pin header enabling the use of 3rd party to debug probes. In addition to standard LPCXpresso V3 features, this board includes a complete set of peripheral interfaces to enable developers to fully explore the capabilities of LPC5461x devices.

MCUXpresso configuration tools and extensive SDK drivers/examples for use are available for the board at http://mcuxpresso.nxp.com. Note that CAN-FD drivers are not included in SDK2.2 but are available as a separate download under the Downloads tab on this page.

製品詳細

セクションを選択:

対応製品

プロセッサ＆マイクロコントローラ

LPC54000 Cortex-M4

  • LPC546XX: Power-Efficient Microcontrollers (MCUs) With Advanced Peripherals Based on Arm® Cortex®-M4 Core

アナログとミックスド・シグナル

アナログ・スイッチ

  • NX3DV2567: Low-Ohmic Four-Pole Double-Throw Analog Switch

インターフェース

3.3 V/5 V IO CANトランシーバ

  • TJA1059TK: Dual High-Speed CAN Transceiver with Standby Mode

Features

Memory

  • 128 Mb Micron MT25QL128 Quad-SPI flash
  • 16 MB Micron MT48LC8M16A2B4 SDRAM

Connectivity

  • Full-size SD/MMC card slot
  • High and full speed USB ports with micro A/B connector for host or device functionality
  • 10/100 Mbps Ethernet (RJ45 connector)

Power Management

  • Built-in power consumption measurement for target LPC54618 MCU

Audio

  • Knowles SPH0641LM4H digital microphone
  • Stereo audio codec with line in/out

Debug

  • Link2 debug probe with CMSIS-DAP and SEGGER® J-Link protocol options
  • UART and SPI port bridging from LPC54618 target to USB via the onboard debug probe
  • Support for external debug probe

Sensors

  • NXP MMA8652FCR1 accelerometer

Expansion Port

  • Multiple Expansion options, including Arduino® UNO and PMod

Components

  • 3 x user LEDs, plus Reset, ISP (3), and user buttons
  • Shield board with dual CAN/CAN-FD transceiver (TJA1059) and RS232C transceiver.

Software and support application development

    null

購入オプション

OM13094-Image

クリックして展開

  • OM13094

  • LPCXpresso54618 CAN-FD kit.

    • 1x LPCXpresso54618 Development Board, pre-loaded with demonstration program showing CAN loopback example.
    • 1x CAN/CAN-FD transceiver shield board
  • JP¥8,959
  • の数量に対して 1

ドキュメンテーション

クイック・リファレンス ドキュメンテーションの種類.

フィルタ

2 ドキュメント

設計・リソース

セクションを選択:

設計・ファイル

フィルタ

3 設計・ファイル

  • プリント基板と回路図

    Design files for OM13094 CAN-FD kit shield

    ZIP改訂 CMar 31, 2017 17:08:00850.1 KBOM13094-CAN-FD-kit-shield
    ダウンロード
  • プリント基板と回路図

    OM13094 Board Files

    ZIP改訂 CApr 14, 2017 09:31:003.5 MBOM13094-BOARD-FILES
    ダウンロード
  • プリント基板と回路図

    Schematic design source files in OrCAD format

    ZIP改訂 EApr 6, 2018 01:21:00620.8 KBSCH-LPC546xx-LPC540xx
    ダウンロード
