Getting Started with the S32G-VNP-RDB Board
最終更新日時：
2021-03-12 09:57:00サポート
S32G2 Vehicle Networking Reference Design
このドキュメントの内容
-
Out of the Box
-
Get Software
-
Plug It In
-
Run
サインイン 進行状況を保存するには アカウントをお持ちでない方 アカウントを作成する。
お客様の S32G2 Vehicle Networking Reference Design
Out of the Box

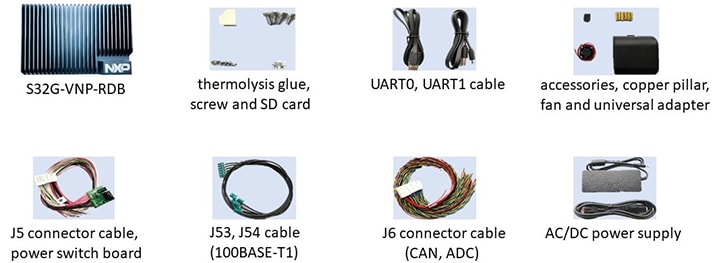

1.1 Get to Know the S32-VNP-RDB

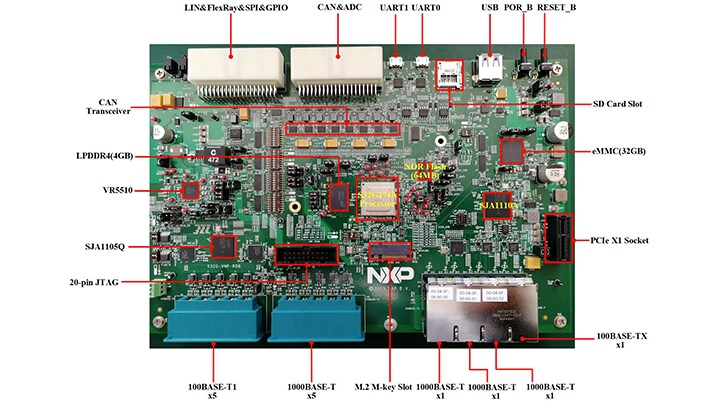

1.2 Main Hardware Components
Get Software
2.1 Install Terminal Emulator for Console
User can install any one which is familiar to you, such as Tera Term, Putty and so on.
The below link is to download Tera Term 2.3.
DOWNLOAD TERA TERM2.2 Install FTDI CDM WHQL Driver
FTDI CDM v2.12.28 WHQL driver for serial configuration from FTDI chip.
DOWNLOAD FTDI CDM DriverPlug It In
3.1 Plug in the SD card
The SD card has pre-loaded Linux BSP image which runs on Cortex-A53 cores.
3.2 Plug in the UART cable
Use UART0 cable to connect UART0 port and PC.

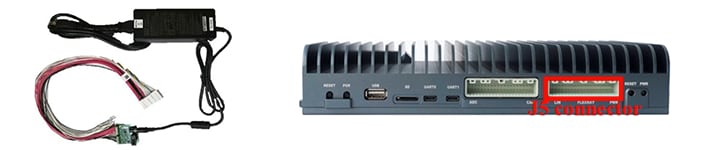

3.3 Plug in the 12V Power Supply
Connect the power supply and power switch board and then plug the cable into J5 connector.
Run
4.1 Setup Tera Term Console
- Open Tera Term on Windows PC.
- Select the serial port to which can be found in “Device Manager” of the PC and click OK.
- Go to Setup > Serial Port and select 115200 as the baud rate.
4.2 Power On the S32G-VNP-RDB
Open the switch of power switch board.
4.3 Run Linux BSP
The Linux BSP is automatically executed from the SD card. The console display on Tera Term shows the running logs of Linux BSP.
Linux BSP running logs
47045] 000: sit: IPv6, IPv4 and MPLS over IPv4 tunneling driver
2.947558] 000: NET: Registered protocol family 17
2.947589] 000: bridge: filtering via arp/ip/ip6tables is no longer available by default. Update your scripts to load br_netfilter if you need this.
2.947593] 000: can: controller area network core (rev 20170425 abi 9)
2.947645] 000: NET: Registered protocol family 29
[ 2.947651] 000: can: raw protocol (rev 20170425)
2.947656] 000: can: broadcast manager protocol (rev 20170425 t)
2.947664] 000: can: netlink gateway (rev 20190810) max_hops=1
2.947692] 000: 8021q: 802.1Q VLAN Support v1.8
2.957187] 001: i2c i2c-4: IMX I2C adapter registered
2.957232] 001: i2c i2c-4: using dma0chan6 (tx) and dma0chan7 (rx) for DMA transfers
2.959260] 000: mmc0: new high speed SDHC card at address aaaa
2.959955] 000: mmcblk0: mmc0:aaaa SA16G 14.8 GiB
2.962560] 000: mmcblk0: p1 p2
2.969720] 001: s32gen1-rtc 40060000.rtc: setting system clock to 2018-08-10T18:00:00 UTC (1533924000)
3.006124] 001: EXT4-fs (mmcblk0p2): mounting ext3 file system using the ext4 subsystem
3.071456] 001: EXT4-fs (mmcblk0p2): recovery complete
3.072613] 001: EXT4-fs (mmcblk0p2): mounted filesystem with ordered data mode. Opts: (null)
3.072643] 001: ext3 filesystem being mounted at /root supports timestamps until 2038 (0x7fffffff)
3.072709] 001: VFS: Mounted root (ext3 filesystem) on device 179:2.
3.073702] 001: devtmpfs: mounted
3.073958] 001: Freeing unused kernel memory: 384K
3.220567] 001: Run /sbin/init as init process
3.268071] 000: random: fast init done
4.248926] 001: udevd[98]: starting version 3.2.8
4.256669] 001: random: udevd: uninitialized urandom read (16 bytes read)
4.257673] 001: random: udevd: uninitialized urandom read (16 bytes read)
4.257718] 001: random: udevd: uninitialized urandom read (16 bytes read)
4.285677] 003: udevd[99]: starting eudev-3.2.8
4.601072] 001: loading NXP PHY driver: [autonomous mode]
4.700577] 001: sja1105pqrs: loading out-of-tree module taints kernel.
4.703556] 001: sja1105pqrs spi1.0: Loading SJA1105P SPI driver
4.703713] 001: sja1105pqrs spi1.0: Detected Device ID ae00030e ()
4.703817] 001: sja1105pqrs spi1.0: Detected device id is invalid: 00000000
4.703868] 001: sja1105pqrs spi1.0: Detected device id is invalid: 00000000
4.703918] 001: sja1105pqrs spi1.0: Detected device id is invalid: 00000000
4.703968] 001: sja1105pqrs spi1.0: Detected device id is invalid: 00000000
4.704020] 001: sja1105pqrs spi1.0: Detected device id is invalid: 00000000
4.704071] 001: sja1105pqrs spi1.0: Detected device id is invalid: 00000000
4.718551] 001: sja1105pqrs spi1.0: 1 switch initialized successfully!
4.741025] 000: EXT4-fs (mmcblk0p2): re-mounted. Opts: (null)
4.741059] 000: ext3 filesystem being remounted at / supports timestamps until 2038 (0x7fffffff)
Starting udev
sysctl: cannot stat /proc/sys/net/ipv4/tcp_syncookies: No such file or directory
Fri Nov 20 06:06:14 UTC 2020
INIT: Entering runlevel: 5
Configuring network interfaces... [ 5.271546] 002: s32cc-dwmac 4033c000.ethernet eth0: Enabling Safety Features
[ 5.271584] 002: s32cc-dwmac 4033c000.ethernet eth0: IEEE 1588-2008 Advanced Timestamp supported
[ 5.271869] 002: s32cc-dwmac 4033c000.ethernet eth0: registered PTP clock
[ 5.271886] 002: s32cc-dwmac 4033c000.ethernet eth0: configuring for fixed/rgmii link mode
[ 5.272203] 002: s32cc-dwmac 4033c000.ethernet eth0: Link is Up - 1Gbps/Full - flow control off
[ 5.272783] 002: 8021q: adding VLAN 0 to HW filter on device eth0
Starting rpcbind daemon...[ 5.720204] 001: urandom_read: 5 callbacks suppressed
[ 5.720226] 001: random: sshd: uninitialized urandom read (32 bytes read)
done.
Starting OpenBSD Secure Shell server: sshd
starting statd: [ 5.772841] 000: random: sshd: uninitialized urandom read (32 bytes read)
done.
done
Starting irqbalance: done
Starting network benchmark server: netserver.
exportfs: can't open /etc/exports for reading
NFS daemon support not enabled in kernel
Starting syslogd/klogd: done
Starting internet superserver: xinetd.
Starting random number generator daemon.
[ 5.975449] 002: random: crng init done
Auto Linux BSP 1.0 s32g274ardb ttyLF0
s32g274ardb login:
