FreeMASTER Sensor Tool

画像にカーソルを合わせると拡大表示されます。

FreeMASTER Sensor Tool is the sensor evaluation, data-visualization and application development software based on NXP FreeMASTER framework for IoT/Industrial/Medical sensors. It provides out-of-box sensor demonstration GUIs for quick sensor evaluation and development framework for end users to extend/create their custom applications.

FreeMASTER Sensor Tool enables quick out-of-box sensor demonstration along with flexibility to allow rapid prototyping to create custom GUIs. This software is integrated with the IoT Sensing SDK embedded software framework using FreeMASTER host communication for supported platforms.

Get started with the FreeMASTER Sensor Tool page

ソフトウェア詳細

図

図を選択する。:

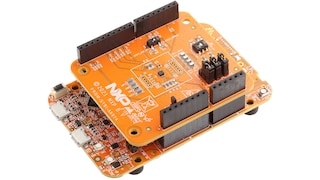

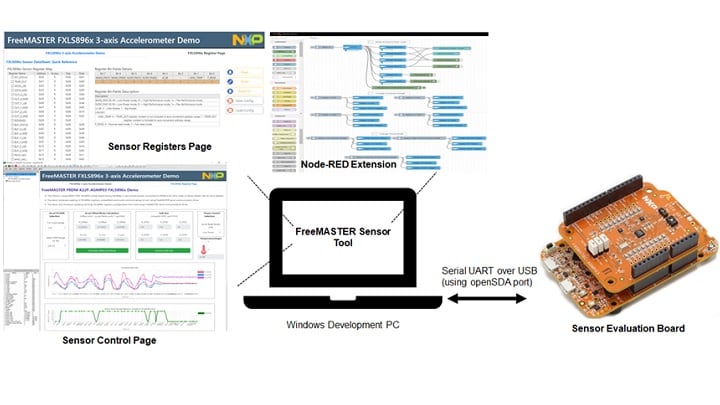

FreeMASTER Sensor Tool Framework

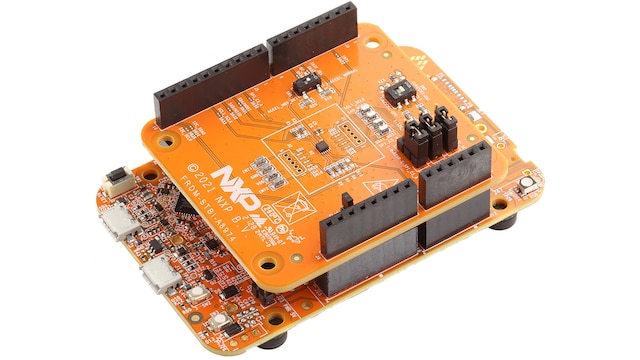

FreeMASTER Sensor Tool Demo

FreeMASTER Sensor Tool Framework

FreeMASTER Sensor Tool Demo

図を取得する PDF

Features

Real-Time Sensor Registers Control

Modify memory variables/registers real time
Control hardware with Real-time registers, control variables write capability

Real-Time Sensor Output Monitoring

Read multiple memory variables at individual sampling rates
Display multiple sensor outputs in the oscilloscope/graph view

Sensor Register Page

Provides detailed register map for the sensors and allows real-time read and write of register bit fields, allowing detailed sensor evaluation
Allows auto-population of sensor register page by uploading csv file

Loss-Less Streaming

Character or binary I/O streaming using pipes feature enabling buffering to better utilize the communication line

Out of Box Sensor Demonstration

Enables quick visualization of sensor Data and embedded functions based on the preconfigured sensor settings in the ISSDK firmware

Development Platforms Integration

Integration with MCUXpresso SDK using ISSDK and FreeMASTER drivers for embedded application development
Integration with FreeMASTER v 3.x with flexibility to extend JavaScript-powered HTML control forms. Users can provide an arbitrary collection of open source instrumentation gauges, dials, knobs and sliders to create complex, elegant custom visual dashboards

対応製品

FXLS8961AF: ±2g/±4g/±8g/±16g、低消費電力12ビット・デジタル加速度センサ

FXLS8971CF: ±2g/±4g/±8g/±16g、低消費電力12ビット・デジタル加速度センサ

FXLS8964AF: ±2g/±4g/±8g/±16g, Low-Power 12-Bit Digital Accelerometer

FXLS8967AF: ±2g/±4g/±8g/±16g, Low Power 12-bit Digital Accelerometer

FXLS8974CF: ±2g/±4g/±8g/±16g, Low-Power 12-Bit Digital IoT Accelerometer

NMH1000: NMH1000 超低消費電力、低電圧磁気スイッチ

FXLS8471Q: ±2g/±4g/±8g, Low g, 14-Bit Digital Accelerometer

FXOS8700CQ: Digital Motion Sensor - 3D Accelerometer (±2g/±4g/±8g) + 3D Magnetometer

FXLS8962AF: ±2g/±4g/±8g/±16g, Low Power 12-bit Digital Accelerometer

MMA8652FC: ±2g/±4g/±8g, Low g, 12-Bit Digital Accelerometer

Supported Development Platforms

Sensor Kit	MCU Board	Sensor Shield Board	Sensor Demo
FRDM-K22F-A8974	FRDM-K22F	FRDM-STBI-A8974	FXLS8974CF
FRDM-K22F with FRDM-STBA-A8967	FRDM-K22F	FRDM-STBA-A8967	FXLS8967AF
FRDM-K22F with FRDM-STBA-A8964	FRDM-K22F	FRDM-STBA-A8964	FXLS8964AF
LPCXpresso55S16 with FRDM-STBA-A8964	LPCXpresso55S16-EVK	FRDM-STBA-A8964	FXLS8964AF
LPCXpresso55S16 with FRDM-STBA-A8967	LPCXpresso55S16-EVK	FRDM-STBA-A8967	FXLS8967AF
LPCXpresso55S16 with FRDM-STBI-A8974	LPCXpresso55S16-EVK	FRDM-STBI-A8974	FRDM-STBI-A8974
LPCXpresso55S16 with FRDM-STBA-A8961	LPCXpresso55S16-EVK	FRDM-STBA-A8961	FXLS8961AF
LPCXpresso55S16-A8971	LPCXpresso55S16-EVK	FRDM-STBI-A8971	FXLS8971CF
FRDM-K22F with FRDM-STBA-A8961	FRDM-K22F	FRDM-STBA-A8961	FXLS8961AF
FRDM-K22F with FRDM-STBI-A8971	FRDM-K22F	FRDM-STBI-A8971	FXLS8971CF
FRDM-KE15Z with FRDMSTBI-NMH1000	FRDM-KE157	FRDMSTBI-NMH1000	NMH1000
FRDM-K64F-AGMO4	FRDM-K64F	FRDM-STBC-AGM01	MMA8652
FRDM-K22F-AGMPO3	FRDM-K22F	FRDM-STBC-AGMP03	FXLS8962
FRD-K64F-AGMO1	FRDM-K64F	FRDM-STBC-AGM01	FXOS8700
FRDM-KL257-A8471	FRDM-KL257	FRDM-STBC-A8471	FXLS8471

ダウンロード

2 ダウンロード

^{使用例とクイック・スタート・ソフトウェア}
FreeMASTER Sensor Tool Firmware Projects

ZIP改訂 1.3Jul 5, 2023 10:46:0017.9 MBFreeMASTER_Sensor_Projects
サインインが必要です

ダウンロード
^{デバッグと可視化ツール}
FreeMASTER Sensor Tool

EXE改訂 1.3Jul 5, 2023 10:46:0013.8 MBFreeMASTER_Sensor_Tool
サインインが必要です

ダウンロード

注: より快適にご利用いただくために、ソフトウェアのダウンロードはデスクトップで行うことを推奨します。

ドキュメンテーション

クイック・リファレンスドキュメンテーションの種類.

3 ドキュメント

^{ユーザ・ガイド}
Get Started with the FreeMASTER Sensor Toolはじめに

HTMLFeb 9, 2021GS-FREEMASTER-SENSOR-TOOLEnglish
^{ドキュメント}
UM11555: FreeMASTER Sensor Tool, User Manual

PDF改訂 1.4Jun 6, 20235.1 MBUM11555English
^{リリース・ノート}
FreeMASTER_Sensor_Tool_RN, Release Notes for the FreeMASTER Sensor Tool

PDF改訂 1.3May 30, 2023141.5 KBFreeMASTER_Sensor_Tool_RNEnglish
