Sensor Toolbox Development Boards for FXLS8471Q 3-Axis Linear Accelerometer

FRDMSTBC-A8471 アーカイブス
  • このページには、製造中止（生産終了）となった製品の情報が記載されています。本ページに記載されている仕様および情報は、過去の参考情報です。

画像にカーソルを合わせると拡大表示されます。

Sensor Toolbox provides a wide variety of sensor boards with compatible software tools for the FXLS8471Q 3-axis linear accelerometer.

Sensor Boards:

Embedded Software Framework:

Evaluation and Visualization Software:

製品詳細

Features

Demonstration Kit

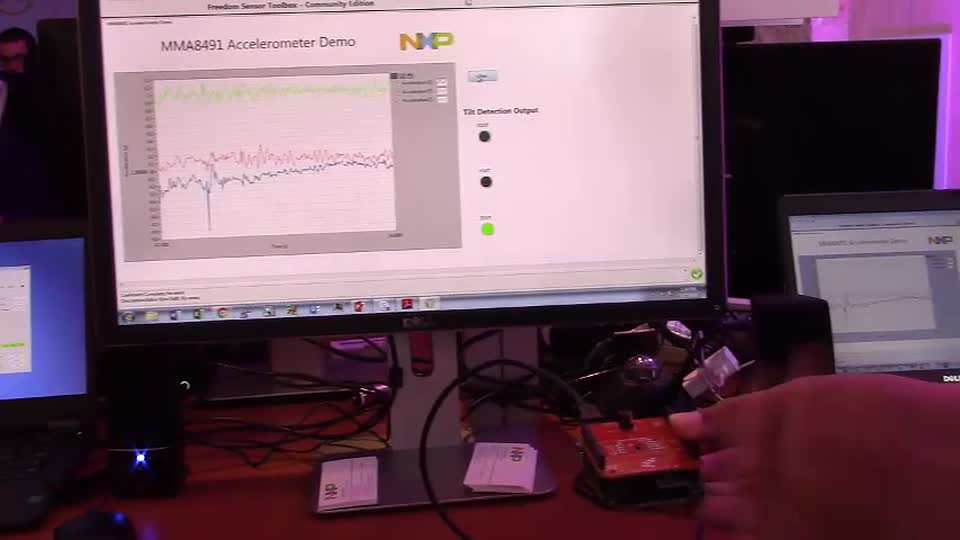

  • Enables ‘Out of the box’ demo and evaluation using the Sensor Toolbox – CE

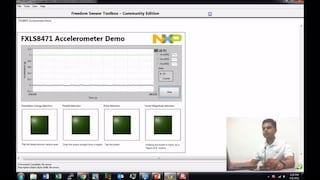

    • Graph Data Visualization, Register level analysis, real-time interrupt evaluation, and data logging for FXLS8471 sensor.
  • Enables embedded sensor project development using IoT Sensing SDK.
    • Example SPI-based projects for FXLS8471 sensor such as interrupt, polling, and FIFO based streaming.

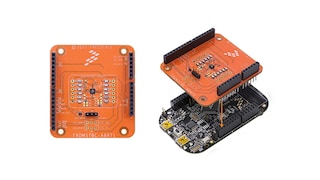

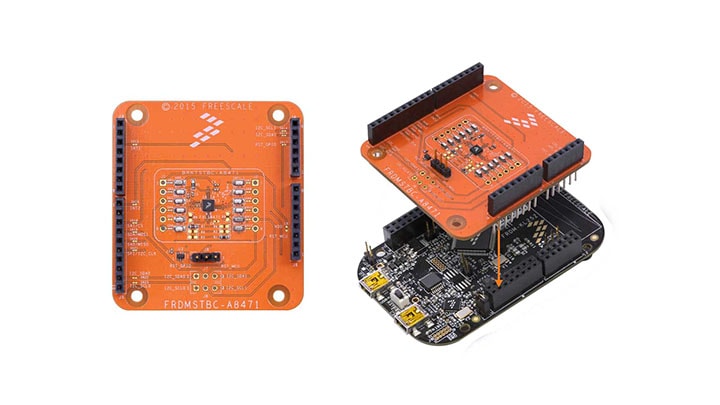

Sensor Shield Board

  • Compatible with Arduino® and most NXP Freedom development boards.
  • Allows evaluation of current consumption and pin voltage characteristics

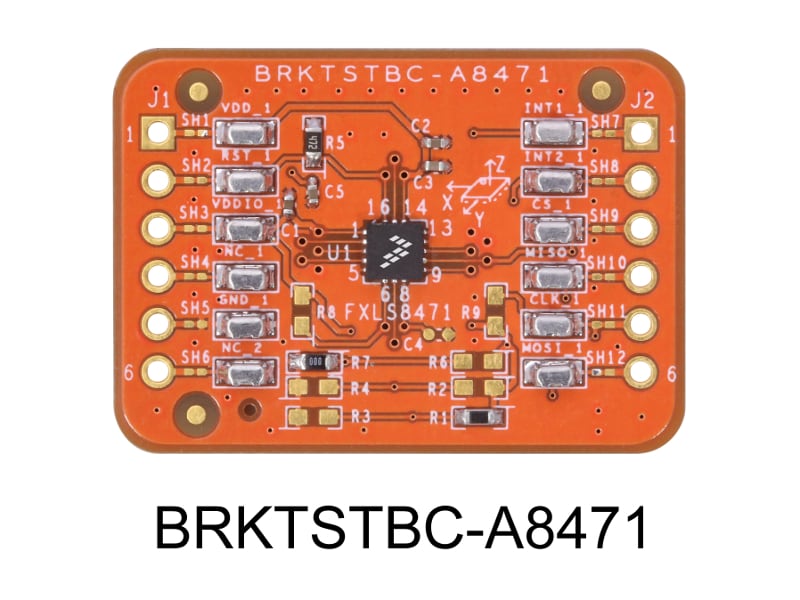

Breakout board

  • Small form factor with the same design as the FRDMSTBC-A8471
  • Enables easy prototyping: Can be easily wired or clipped onto host systems.
