TWRPI-MMA6900
-
Tower System, Plug-In, MMA6900, Auto Low-g Accelerometer, use w/ Twr System Modules w/ TWRPI Sockets.
デザイン・ファイル
1 設計・ファイル
-
プリント基板と回路図
TWRPI-MMA6900 Schematic
Automotive Low-g Accelerometer Tower® System Plug-In
TWRPI-MMA6900 アラートの受信

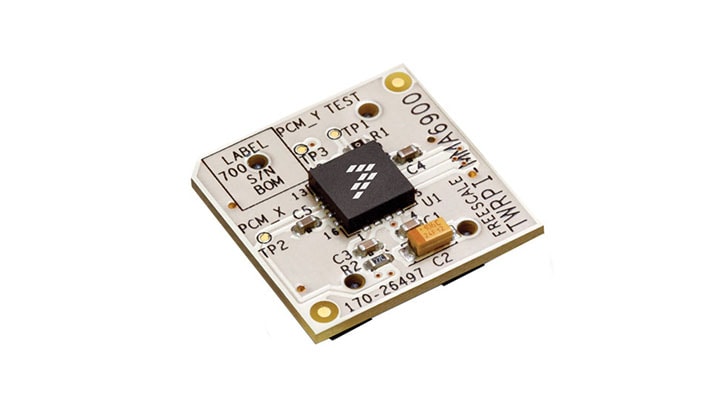

The TWRPI-MMA6900 is a Tower® System plug-in board that contains the Xtrinsic MMA6900Q inertial sensor that can be used in automotive and industrial applications.
- Designed to interface to the Tower System, a modular development platform which aids in rapid prototyping and tool-reuse
- An integrated open-source BDM, software tools, and examples provided with the development board make application development and debug quick and easy
製品詳細
Features
Key Features
- 11-bits digital data output
- Sensitivity in X and Y axes
- ±3.5 or ±5.0 g full-scale range per axis
- AEC-Q100 qualified, Rev. G, grade 2 (-40 < TA < 105 °C)
- 50 Hz second order low-pass filter
- Bidirectional internal self-test
- Pb-free 16-pin QFN package
- Pulse-code modulated output available for device evaluation
Connectivity
- SPI-compatible serial interface
Power Management
- 3.3 or 5.0 V single supply operation
- On-chip temperature sensor and voltage regulator
Support
- Capture/hold input for system-wide synchronization support
- Minimal external component requirements
購入オプション
設計・リソース
ソフトウェア
3 ソフトウェア・ファイル
-
BSPとデバイスドライバ
FreeMASTER Communication Driver 2.0 (DSC, S08, S12, S16, MPC)
-
デバッグと可視化ツール
FREEMASTER FOR TWR-SENSOR-PAK-AUTO
-
ソフトウェア開発リソース
Firmware Download
注: より快適にご利用いただくために、ソフトウェアのダウンロードはデスクトップで行うことを推奨します。
