S12XF 2-Node Starter Kit

S12XFSTARTERKITE

画像にカーソルを合わせると拡大表示されます。

The S12XFSTARTERKITE contains everything required to set up a two-node FlexRay network in less than an hour. Based on the NXP S12XF512 16-bit MCU with an XGATE co-processor and embedded FlexRay controller, the S12XFSTARTERKITE contains hardware, software, tools and an easy to follow Quick Start Guide.

製品詳細

対応製品

プロセッサ＆マイクロコントローラ

16ビットS12/S12Xマイクロコントローラ

  • S12XF: S12XF Automotive and Industrial Microcontrollers (MCUs)

Features

Microcontroller

  • S12XF512MLM MCU
  • NXP MC33742 system basic chip for hi-speed CAN communication
  • Selectable 16 MHz oscillator module (socketed) or a 4 MHz crystal

Connectivity

  • BDM connector for external in-circuit debugging
  • Header connectors with all microcontroller signals
  • One CAN connector with transceiver integrated in the MC33742
  • Two FlexRay connectors with two transceivers

Components

  • NXP TJA1080 FlexRay transceiver
  • Eight User LEDs
  • Two push-buttons
  • Reset push button for the MCU and/or the SBC
  • NOTE: The EVB9S12XF512E evaluation board comes assembled with the PC9S12XF512MLM (112-pin LQFP). This board is designed to support also the PC9S12XF512MLH (64-pin LQFP). To order this part, contact your NXP sales representative. Refer to for guidelines to enable the support for the 64-pin LQFP device.

購入オプション

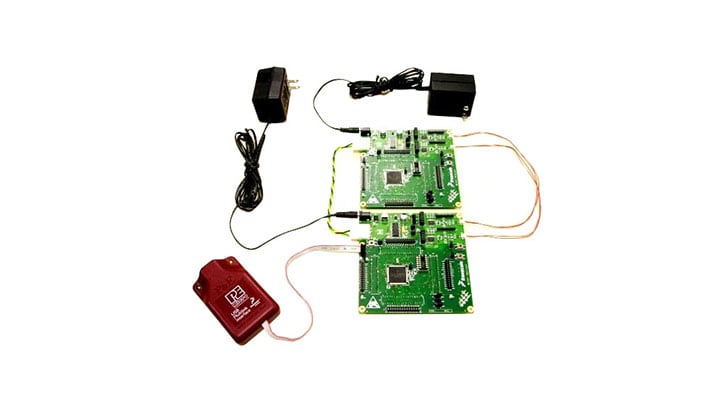

S12XFSTARTERKITE-Image

クリックして展開

  • S12XFSTARTERKITE

  • S12XFSTARTERKITE STARTER KIT.

    • NXP EVB9S12XF512E information CD
    • Two 12 Vdc 500 mA DC power supplies with interchangeable AC prongs
    • Two EVB9S12XF512E boards (EVBs) fit with jumpers
    • One P&E USB BDM Multilink with USB and BDM cable
    • One CAN cable assembly in plastic bag
    • Two FlexRay cable assemblies in plastic bag
    • Eight aluminum standoffs, eight screws, and four 9-pin headers
    • Decomsys Designer Pro Evaluation version CD
    • Warranty registration card
    • Technical information center support sheet
    • CodeWarrior Special Edition Tri-pak including
      • Development Studio for HCS12(x) v. 4.6 CD
      • Development Studio for Microcontrollers v. 6.0 CD
      • Service pack CD
  • JP¥57,591
