WCT-15WAUTO13
-
Automotive 15W Wireless Charging Transmitter.
Automotive 15W Wireless Charging Transmitter
WCT-15WAUTO13 アラートの受信

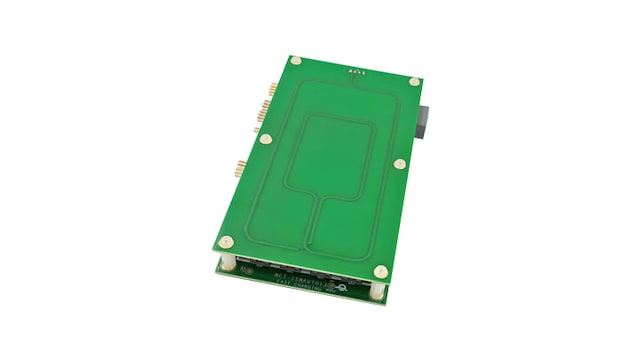

The NXP WCT-15WAUTO13 multi-coil transmitter reference platform is first Qi® 1.3 certified 15W reference design for in-vehicle wireless charging applications based on the NXP MWCT2xx3A controller IC family. System supports 40W power delivery to meet all customized fast charging requirements.
The platform uses auto grade components and other vital automotive functions including EMC optimization, safety features and MISRA C compliance software with flexible application to ensure that the system can be seamlessly integrated. Complies with the Wireless Power Consortium's latest Qi v1.3 specification including authentication and is certified as an MP-A13 transmitter type.
製品詳細
Features

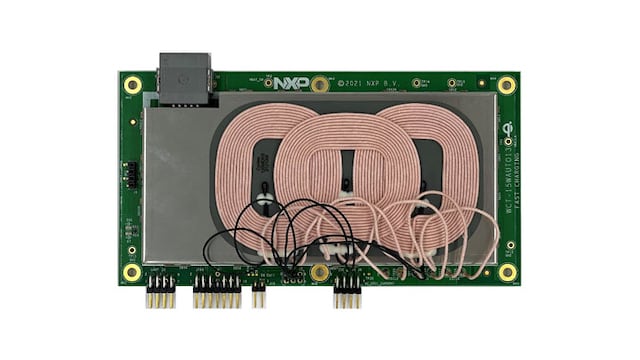

- Free positioning (multi coil)
- On chip digital demodulation (reduced BOM)
- Firmware updates in the field
- Fixed frequency rail voltage control (better EMC)
- Q-factor and power loss FOD methods
- Key fob and AM band interference avoidance
- AEC-Q100 grade 2 certification
- Temperature sensing
- CAN, LIN interfaces
-
Wireless Power Standard
- Qi 1.3
-
Power Profile
- EPP (15 W)
-
Transmitter Type
- MP-A13 (all types supported)
-
Operating Frequency
- 127.7 kHz
-
Safety
- Foreign objects detection
-
Efficiency
- 75%
-
Device
- MWCT2xx3A
-
Memory
- ECC Flash 256 kB
-
CAN
- CAN-FD
-
Safety
- NFC card detection
-
Connectivity
- Bluetooth®/Wi-Fi® pairing
-
Convenience
- Engine start function, personalization
