The BMS communication monitoring and debugging toolkit is used to monitor and decode BMS internal communication. It is composed of separate hardware and software components.
The KIT-TPLSNIFEVB hardware board facilitates the acquisition of electrical transport protocol link (ETPL) signals by a logic analyzer. It is a listen-only tool that can be used at the end of an ETPL bus or directly included in a daisy chain, as it is designed not to be intrusive on the ETPL bus.
The TPL Decoder is a high level analyzer (HLA) extension for the Saleae Logic Software. It eases decoding of the NXP TPL protocols on several physical layers.

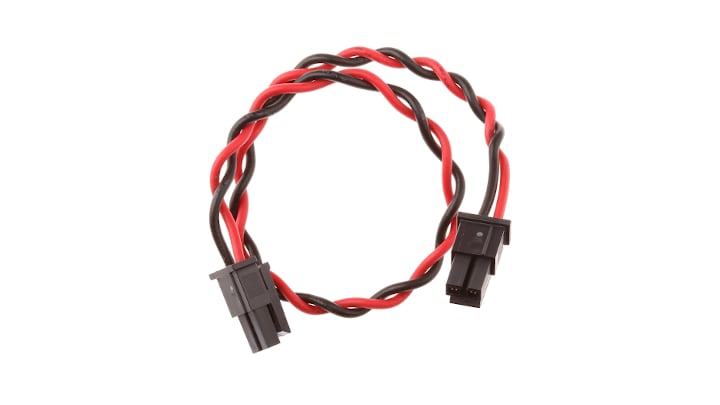

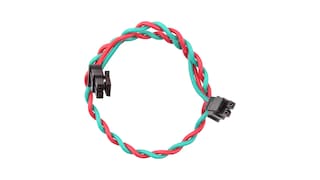

Electrical transport protocol link (ETPL), two-wire, twisted, 20 cm-long cable.

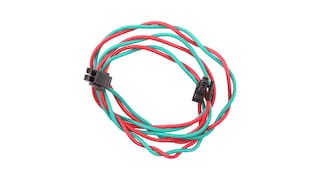

Electrical transport protocol link (ETPL), two-wire, twisted, 50 cm-long cable.
Battery Management System (BMS) Communication Monitoring and Debugging Toolkit.

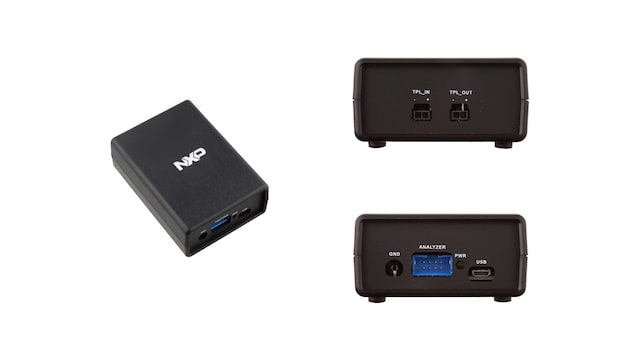

The KIT-TPLSNIFEVB board, also called TPL sniffer, is a tool working with a logic analyzer and its software to help analyze any TPL signals
