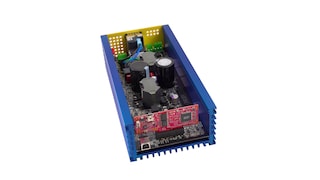

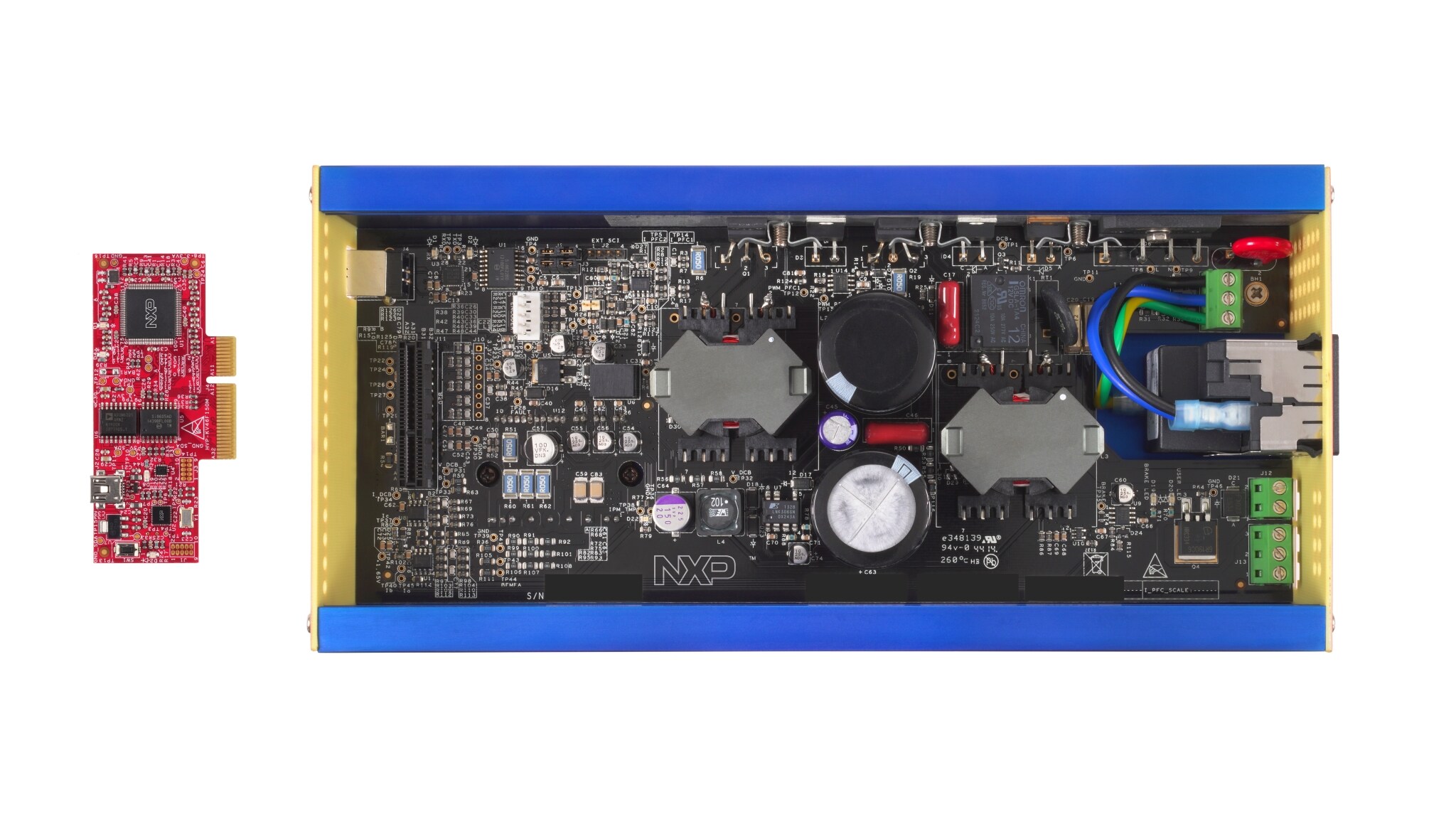

高電圧モータ開発プラットフォーム

HVP-MC3PH
アクティブ

画像にカーソルを合わせると拡大表示されます。

NXP®高電圧モータ開発プラットフォームは、Kinetis® VシリーズMCU、Kinetis EシリーズMCU、NXPデジタル・シグナル・コントローラに対応する評価/開発用ソリューションです。

  • このプラットフォームにより、高電圧環境における三相PMSM/BLDC/ACIMモータ制御ソリューションや力率補正ソリューションを安全に開発することができます
  • これはNXP製MCUをサポートするコントローラ・カードを開発するための基盤となる絶縁型ソリューションです
  • このプラットフォームは、すべてのKinetis VシリーズMCU、Kinetis EシリーズMCU、DSCコントローラ・カードに対応しています。この開発プラットフォームにはHVP-KV46F150Mコントローラ・カードが付属します。

ブロック図

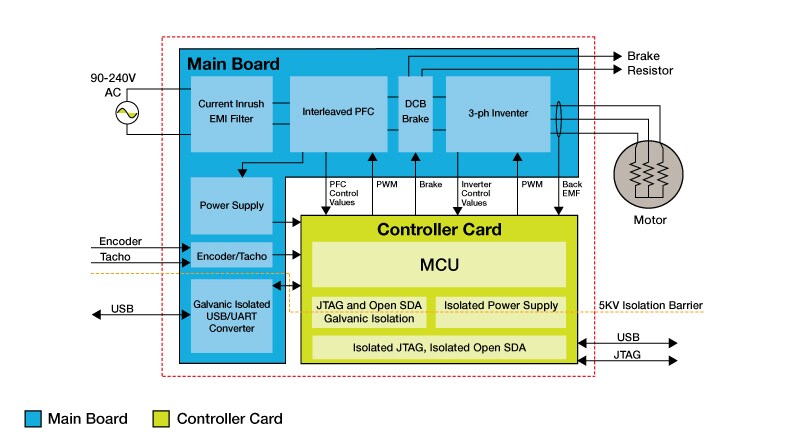

高電圧モータ開発プラットフォームのブロック図

HVP-MC3PH High-Voltage Development Platform Block Diagram
図を取得する PDF

対応製品

プロセッサ＆マイクロコントローラ

KEシリーズArm Cortex-M4/M0+

  • KE1xF: Kinetis KE1xF-168MHz, Performance with CAN 5V Microcontrollers based on Arm® Cortex®-M4

KVシリーズArm Cortex-M4/M0+/M7

  • KV1x: Kinetis® KV1x-75 MHz,  Entry-Level 3ph FOC / Sensorless Motor Control MCUs based on Arm® Cortex®-M0+
  • KV3x: Kinetis® KV3x-100–120 MHz,  Advanced 3ph FOC / Sensorless Motor Control MCUs based on Arm® Cortex®-M4
  • KV4x: Kinetis KV4x-168 MHz, High Performance Motor / Power Conversion MCUs based on Arm® Cortex®-M4
  • KV5x: Kinetis® KV5x-240 MHz, Motor Control and Power Conversion, Ethernet, MCUs based on Arm® Cortex®-M7

LPC5500シリーズ Arm Cortex-M33

  • LPC553x: LPC553x/S3x：高度なアナログArm®Cortex®-M33ベースMCUファミリ

32ビット56800EX/EFコア

  • MC56F82xxx: MC56F826xx and MC56F827xx Digital Signal Controllers
  • MC56F81xxx: Up to 100MHz Digital Signal Controllers with DSASS and Operational Amplifier
  • MC56F80xxx: DSCs with Integrated FPU and Trigonometric Math Engine with OPAMP and Quadrature Decoder
  • MC56F83xxx: Performance Level Digital Signal Controllers, USB FS OTG, CAN FD

特長

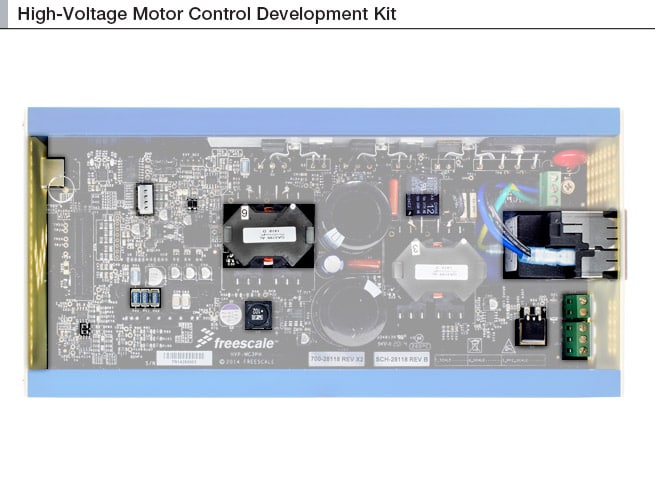

メインボード（パワー・ステージ）

  • 入力電圧：85～240 V AC、110～390 VDC
  • 出力電力：1 kW（PFCなし）、0.8 kW（PFCあり）
  • 出力電流：8 A（ピーク）
  • アナログ・センシング機能（入力電圧、DCB電圧、DCB電流、相電流、逆起電力電圧、PFC電流、IGBTモジュール温度のモニタリング）
  • モーター速度/位置センサ・インターフェース（エンコーダ、ホール、タコ・ジェネレータ）
  • 過電圧コンパレータ（DCブレーキ抵抗器インターフェース搭載）
  • 突入電流回路
  • ハードウェアの過電流故障保護機能

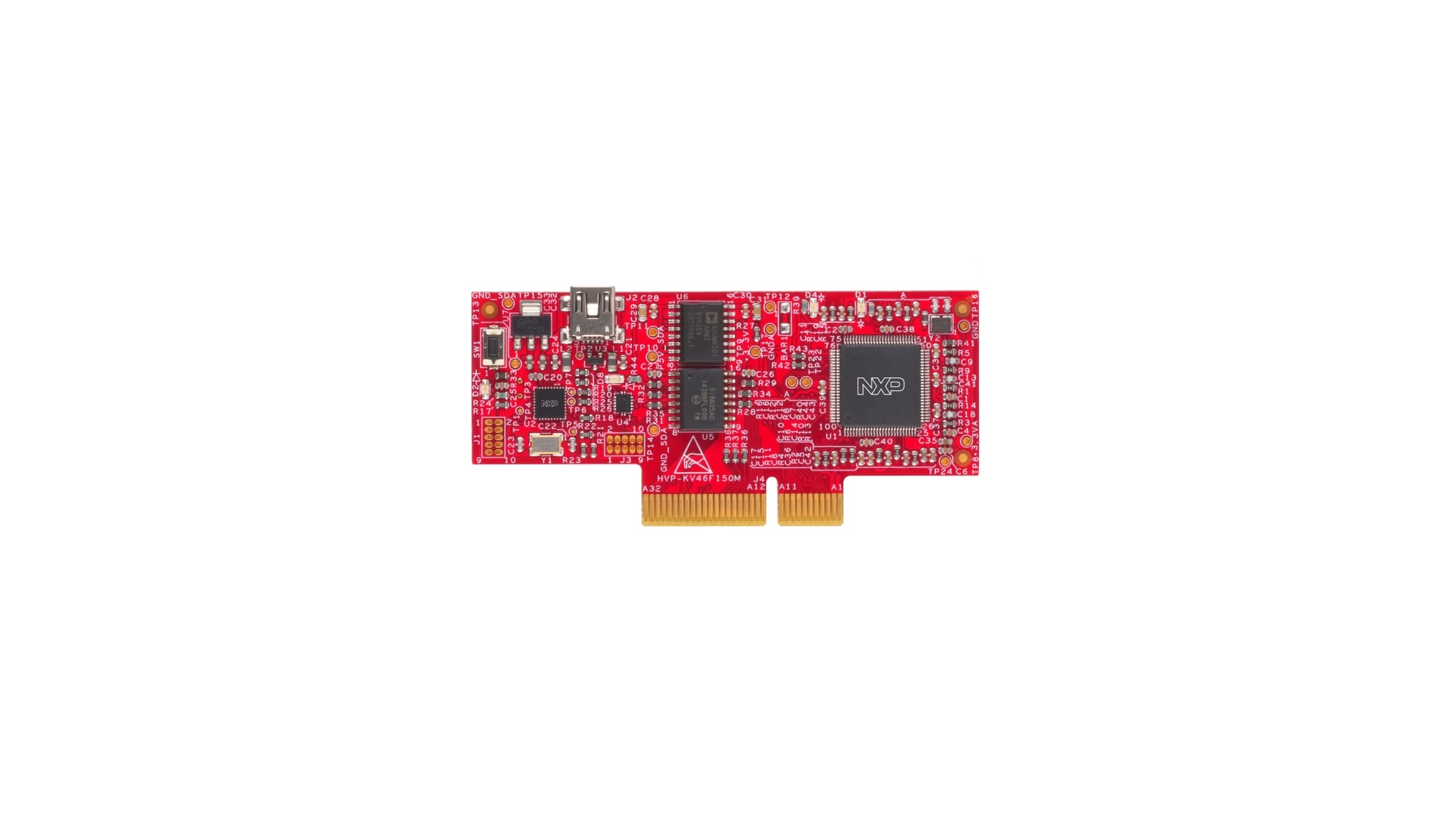

コントローラ・カード

  • 対応するターゲットMCU：KE1xF、KV10、KV31、KV46、KV58、MC56F81768、MC56F80748、MC56F82748、MC56F83783
  • SWD/JTAGおよびSCI絶縁：最大5 kV
  • 安全なデバッグを実現するオンボードの絶縁型電源
  • コントローラ・カードはスタンドアロンでも動作
  • 新しいOpenSDAデバッグ・インターフェース
  • マス・ストレージ・デバイス・フラッシュ向けプログラミング・インターフェース（デフォルト）
  • P&E Multilinkデバッグ・インターフェース：実行制御デバッグとIDEツールとの互換性を提供
  • SEGGER J-Link Lite：フラッシュの超高速ダウンロード、超高速デバッグ、無料で使用可能なGDBServerなど、ほとんどのJ-Link機能を利用可能
  • miniUSBまたはメイン・ボードから給電可能

購入オプション

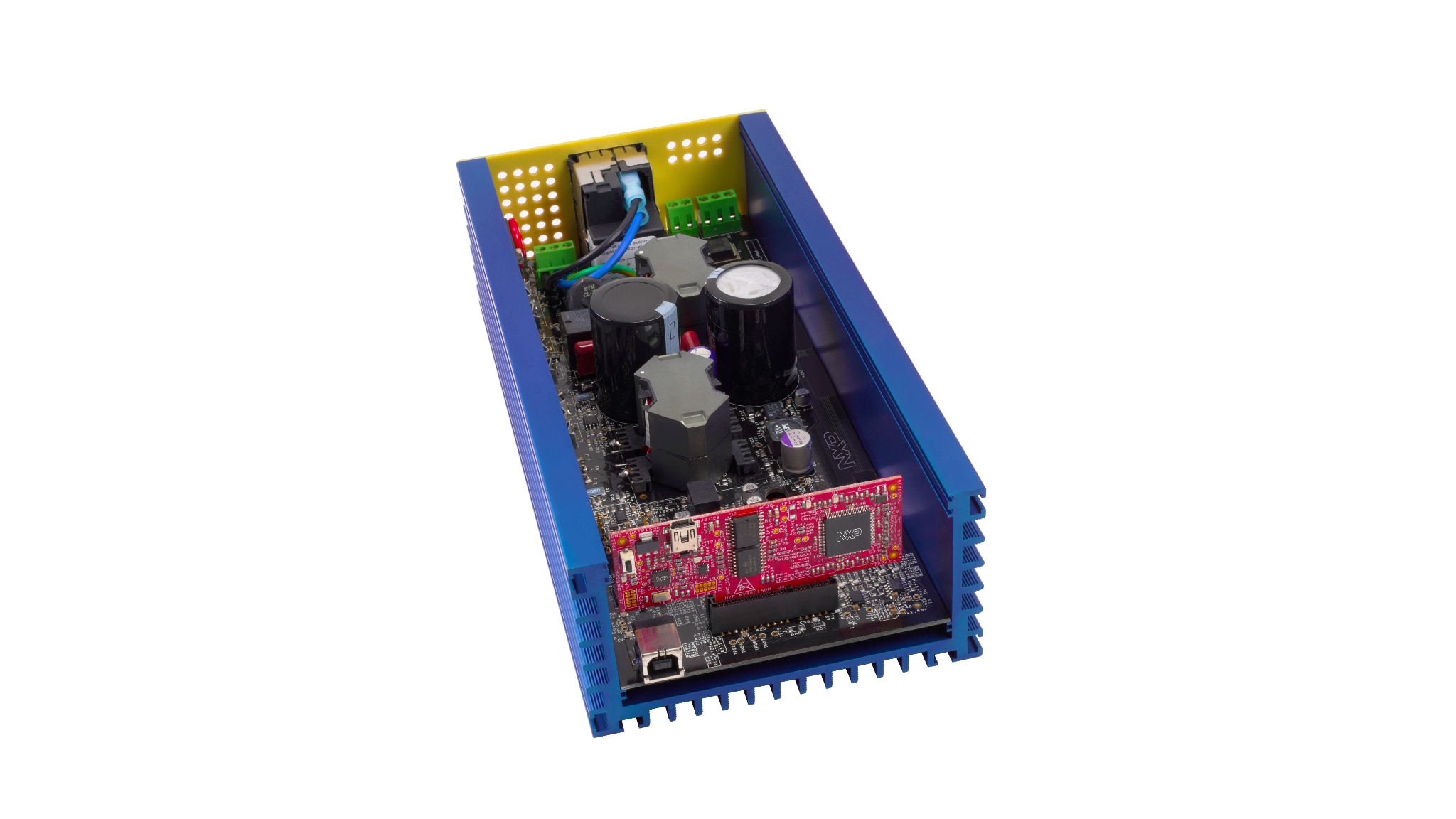

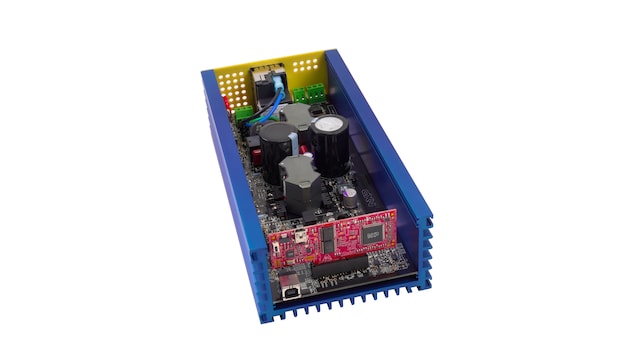

HVP-MC3PH-Image

クリックして展開

  • HVP-MC3PH
    アクティブ

  • High-Voltage Development Platform.

    • HVP-MC3PH高電圧モータ開発プラットフォーム（メイン・ボード）
    • HVP-KV46F150Mコントローラ・カード
    • USB 2.0ケーブル（A-Bタイプ）
    • USB 2.0ケーブル（A-miniBタイプ）
    • ACケーブル：アメリカ、カナダ、イギリス、日本、EU
  • $690.00 USD
  • の数量に対して 1
    • 在庫: 在庫あり
    • 在庫: 1
    • 配送: 通常 1～2営業日以内に配送
カートに入れる
代理店からの注文
HVP-KE18F-Image

クリックして展開

  • の数量に対して 1
代理店からの注文
HVP-KV58F-Image

クリックして展開

  • $57.50 USD
  • の数量に対して 1
    • 在庫: 保留中の在庫
カートに入れる
代理店からの注文
HVP-KV46F150M-Image

クリックして展開

  • HVP-KV46F150M
    アクティブ

  • High-Voltage Development Platform Controller Card, Kinetis V MCU, KV46, 150 MHz.

  • $57.50 USD
  • の数量に対して 1
    • 在庫: 在庫あり
    • 在庫: 1
    • 配送: 通常 1～2営業日以内に配送
カートに入れる
代理店からの注文
HVP-KV31F120M-Image

クリックして展開

  • HVP-KV31F120M
    アクティブ

  • High-Voltage Development Platform Controller Card, Kinetis V MCU, KV31, 120 MHz.

  • $90.85 USD
  • の数量に対して 1
    • 在庫: 保留中の在庫
カートに入れる
代理店からの注文
HVP-KV11Z75M-Image

クリックして展開

  • $57.50 USD
  • の数量に対して 1
    • 在庫: 保留中の在庫
カートに入れる
代理店からの注文
HVP-KV10Z32-Image

クリックして展開

  • HVP-KV10Z32
    アクティブ

  • High-Voltage Development Platform Controller Card, Kinetis V MCU, KV10, 75 MHz.

  • $90.85 USD
  • の数量に対して 1
    • 在庫: 保留中の在庫
カートに入れる
代理店からの注文
HVP-56F83783-Image

クリックして展開

  • HVP-56F83783
    アクティブ

  • High-Voltage Development Platform.

  • 高電圧モータ開発プラットフォーム・コントローラ・カード、32ビットDSC、100 MHz
  • $57.50 USD
  • の数量に対して 1
    • 在庫: 在庫あり
    • 在庫: 15
    • 配送: 通常 1～2営業日以内に配送
カートに入れる
代理店からの注文
HVP-56F82748-Image

クリックして展開

  • HVP-56F82748
    アクティブ

  • High-Voltage Development Platform Controller Card, 32-bit DSC, 100 MHz.

  • $57.50 USD
  • の数量に対して 1
    • 在庫: 保留中の在庫
カートに入れる
代理店からの注文
HVP-56F81768-Image

クリックして展開

  • HVP-56F81768
    アクティブ

  • High-Voltage Development Platform.

  • $57.50 USD
  • の数量に対して 1
    • 在庫: 保留中の在庫
カートに入れる
代理店からの注文

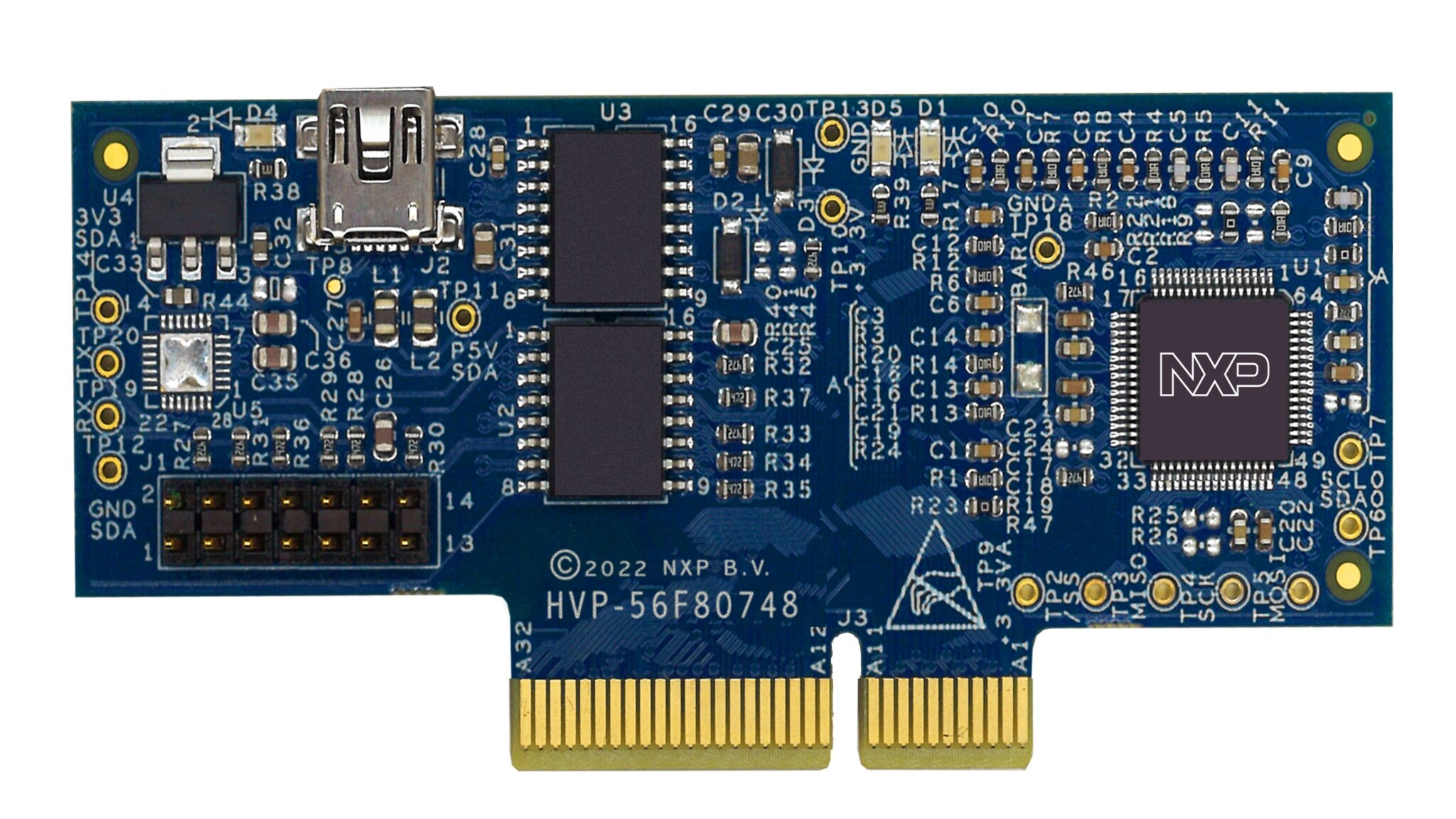

HVP-56F80748-Image

クリックして展開

  • HVP-56F80748
    アクティブ

  • High-Voltage Development Platform.

  • $57.50 USD
  • の数量に対して 1
    • 在庫: 在庫あり
    • 在庫: 3
    • 配送: 通常 1～2営業日以内に配送
カートに入れる
代理店からの注文
