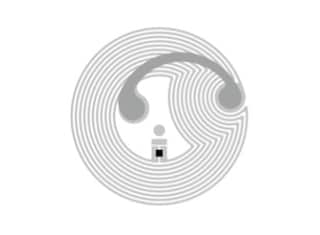

NTAG® 424 DNA / 424 DNA TagTamper – Advanced Security and Privacy for Trusted IoT Applications
NTAG 424 DNA sets a new standard in secure NFC and IoT applications. The new chip generation offers state-of-the-art features for security and privacy protection, on attack-resistant certified silicon. The NTAG 424 DNA is architected to provide AES-128 cryptographic operation, new SUN authentication mechanism upon each read-out by an NFC enabled mobile device, as well as sensitive data protection with crypto-secure access permissions. This enables advanced product and content protection, plus secured and unique user experiences served in real-time.
The NTAG 424 DNA TagTamper tags go further and facilitate even more customized engagements by serving up status-aware, relevant consumer messages once the tag’s seal on a label or container has been broken.
Both the NTAG 424 DNA and 424 DNA TagTamper are sampling now with select customers.
Detailed documentation and support tools available upon request.
Certified EdgeLock® Assurance
The NTAG 424 DNA and the NTAG 424 DNA TagTamper, part of the Certified EdgeLock Assurance program, are designed to meet industry standards and follows NXP's security-by-design approach. They have been certified by an independent lab.
製品詳細
Features
- NFC interoperability: ISO/IEC 14443-A communication, NFC Forum Type 4 Tag
- 416 bytes memory organized in an ISO/IEC 7816-4 file system: 32 bytes capability container, 256 bytes NDEF file, and a 128 bytes protected data file
- Common Criteria® EAL4 certification for hardware and software
- Standard AES-128 cryptography for authentication/secure messaging, or LRP wrapped AES operation for even stronger attack resistance
- SUN message authentication for advanced data protection within standard NDEF read operation
- 3-pass mutual authentication to access the protected data file
- Protected communication on a contactless air interface
- ECC-based NXP® originality signature and AES-128 based NXP originality check for assurance of tag origin
- Random ID and encrypted UID for enhanced privacy protection
- On-chip assembly of item URLs with flexible ASCII mirrors
- Attack resistant hardware
- Ultra-fast communication (up to 848 Kbits/s), benchmark authentication time
- High input capacitance (50 pF) for compact antenna design

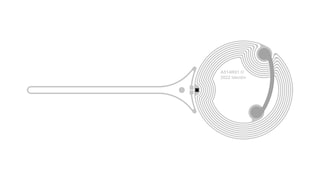

- Tamper loop for once-opened and current-status detection (NTAG 424 DNA TagTamper)
CC EAL4 Certification
