GPS Low-Noise Amplifier Front-End Evaluation Board Using BGU7008

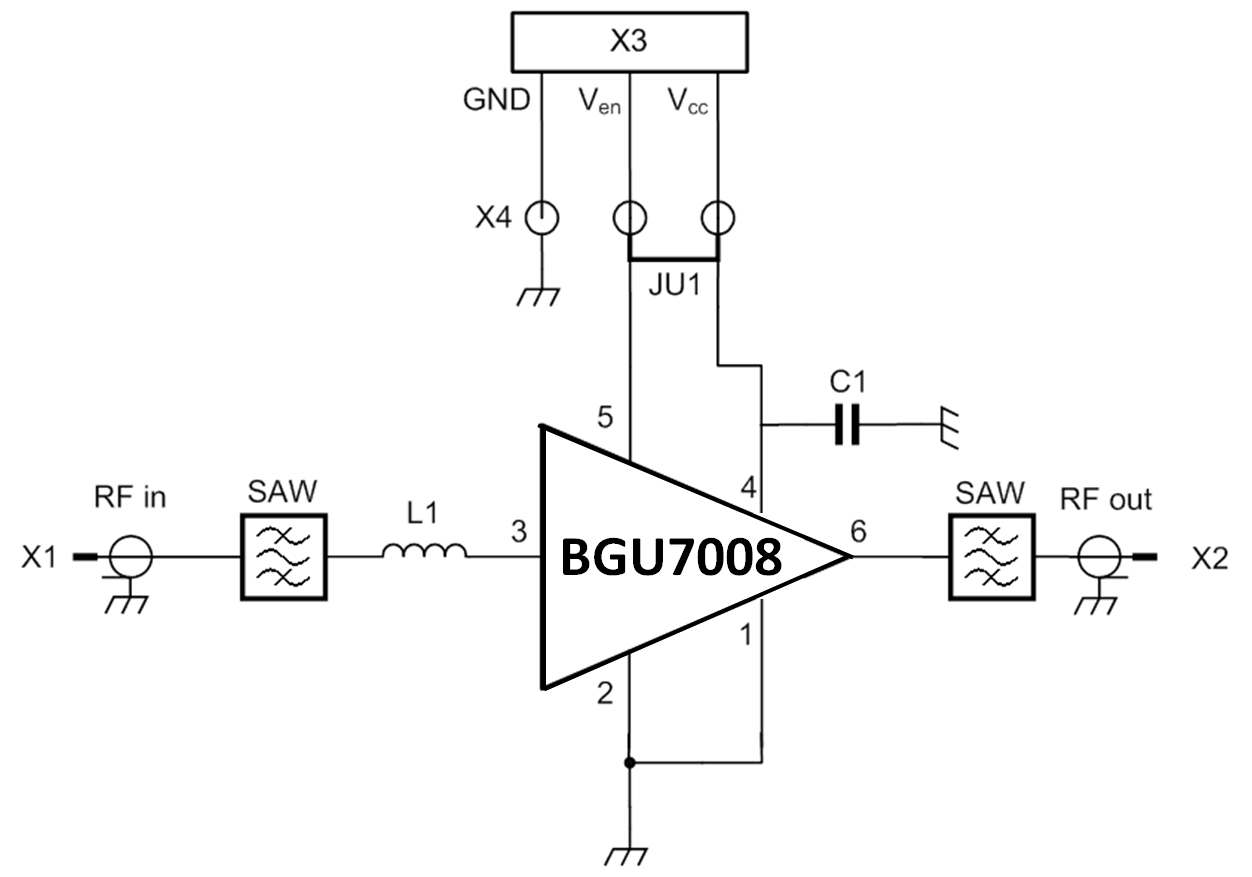

The BGU7008 GPS front-end evaluation board simplifies the evaluation of the BGU7008 LNA for the GPS application. Two Surface Acoustic Wave filters have been added to facilitate the evaluation of the complete GPS front-end. The board is fully assembled with the BGU7008, two identical SAW filters, the input series inductor and a decoupling capacitor. The board is supplied with two SMA connectors for input and output connection to RF test equipment. The BGU7008 can operate from a 1.5 V to 2.85 V single supply and consumes about 4.7 mA.
製品詳細
対応製品
RF
レガシーRFロー/ミディアム・パワーアンプ
- BGU7008: SiGe:C Low Noise Amplifier MMIC for GPS, GLONASS, Galileo and Compass
Features
Connectivity
- Two SMA connectors for input and output connection to RF test equipment
Power Management
- Evaluation of the power on settling time ton and the power off settling time toff
