OM7820
アクティブ -
BGU8009 GNSS LNA evaluation board.
- BGU8009 LNA evaluation board in ESD safe packing
BGU8009 GNSS LNA Evaluation Board

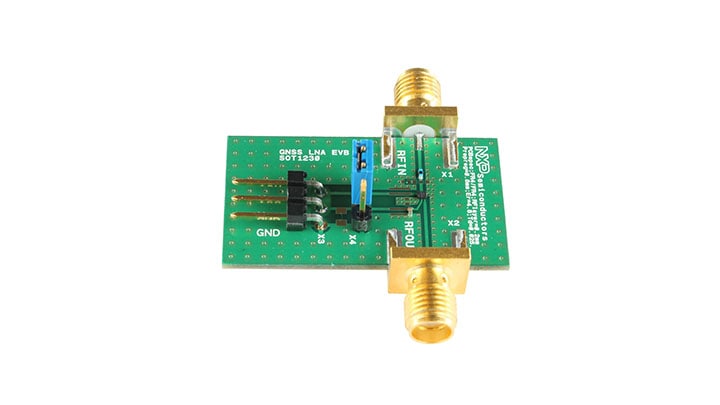

The BGU8009 GPS LNA evaluation board simplifies the evaluation of the BGU8009 LNA for the GPS application. The evaluation board enables testing of the device performance and requires no additional support circuitry. The board is fully assembled with the BGU8009, the input series inductor and a decoupling capacitor. The board is supplied with two SMA connectors for input and output connection to RF test equipment. The BGU8009 can operate from a 1.5 V to 3.1 V single supply and consumes about 4.4 mA.
製品詳細
対応製品
RF
レガシーRFロー/ミディアム・パワーアンプ
- BGU8009: SiGe:C Low Noise Amplifier MMIC for GPS, GLONASS, Galileo and Compass
Features
Key Features
- Covers full GNSS L1 band, from 1559 MHz to 1610 MHz
- Noise figure (NF) = 0.70 dB
- Gain = 17.8 dB
- High input 1 dB compression point of -7 dBm
- High out of band IP3I of 6 dBm
- Integrated temperature stabilized bias for easy design
- Requires only one input matching inductor and one supply decoupling capacitor
- ESD protection on all pins (HBM > 2 kV)
- Integrated matching for the output
- 1.1 x 0.9 x 0.5 mm³; 0.4 mm pitch: SOT1230
- 180 GHz transit frequency - SiGe:C technology
Power Management
- Supply voltage 1.5 V to 3.1 V
- Power-down mode current consumption < 1 µA
- Input and output DC decoupled
- Optimized performance at very low supply current of 4.4 mA
