Demonstration Board for 56F8014 Digital Signal Controller

DEMO56F8014
アクティブ

画像にカーソルを合わせると拡大表示されます。

The 56F8014 Demonstration Board is an evaluation module board that includes a 56F8014 digital signal controller, RS-232 interface, user LEDs, user pushbutton switches and a daughter card connector. The daughter card connector allows signal monitoring and expandability of user features.

製品詳細

対応製品

プロセッサ＆マイクロコントローラ

16ビット56800E DSCコア

  • 56F801X: Digital Signal Controller for Motor Control Applications

Features

  • 56F8014, a 16-bit +3.3 V hybrid controller operating at 32 MHz

Connectivity

  • RS-232 interface, for easy connection to a host processor [U2 and P3]
  • Daughter card connector, to allow the user to connect his own PWM, ADC, SCI, SPI, or GPIO-compatible peripheral to the digital signal controller

Power Management

  • On-board power regulation provided from an external +9 VDC-supplied power input

Debug

  • Joint Test Action Group (JTAG) port interface connector, for an external debug Host Target Interface

User Components

  • Light Emitting Diode (LED) power indicator
  • Six onboard real-time user debugging LEDs
  • Manual RESET push button
  • Manual interrupt #1 push button
  • Manual interrupt #2 push button

購入オプション

DEMO56F8014-EE-Image

クリックして展開

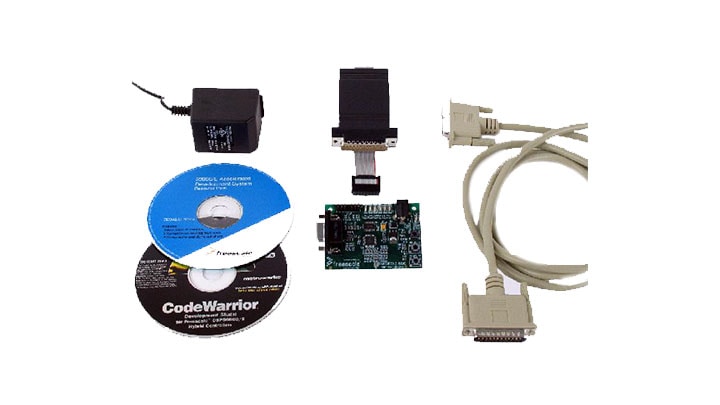

  • DEMO56F8014-EE
    アクティブ

  • MC56F8014 BD W/UNIV PS.

    • Installation Guide
    • Demonstration Board
    • CodeWarrior™ Software
    • Adapter cable
    • Resource CD–ROM
  • の数量に対して 1
代理店からの注文
N true 0 TSPDEMO56F8014ja 7 セレクタ・ガイド Selector Guide t528 1 データ・シート Data Sheet t520 1 ファクト・シート Fact Sheet t523 3 ユーザ・ガイド User Guide t792 2 ja 3 1 MC56F8014MFAE,MC56F8014VFAE 11 English The 56F8014 is a member of the 56800E core-based family of Digital Signal Controllers (DSCs). Because of its low cost, configuration flexibility, and compact program code, the 56F8014 is well-suited for many applications such as industrial control, motion control, home appliances, general purpose inverters, smart sensors, fire and security systems, switched-mode power supplies, power management, and medical monitoring applications. 1114038876005711225875 TSP 1.8 MB None None documents None 1114038876005711225875 /docs/en/data-sheet/56f8014.pdf 1820506 /docs/en/data-sheet/56f8014.pdf MC56F8014 N 2005-04-21 56F8014 Technical Data - Data Sheet /docs/en/data-sheet/56f8014.pdf /docs/en/data-sheet/56f8014.pdf Data Sheet N Y 980000996212993340 2022-12-07 pdf en May 23, 2008 Data Sheet t520 データ・シート Data Sheet Y N 56F8014 Technical Data - Data Sheet 2 0 English This document provides instructions on how to set up the NXP 56F8014 Demonstration Board with the CodeWarrior IDE. 1116289630810688032408 TSP 55.0 KB None None documents None 1116289630810688032408 /docs/en/fact-sheet/8014DemoBoard_kigbw.pdf 54981 /docs/en/fact-sheet/8014DemoBoard_kigbw.pdf DEMO56F8014KIG N 2005-05-16 56F8014 Demo Board Kit Installation Guide /docs/en/fact-sheet/8014DemoBoard_kigbw.pdf /docs/en/fact-sheet/8014DemoBoard_kigbw.pdf Fact Sheet N Y 736675474163315314 2022-12-07 pdf en Mar 30, 2005 Fact Sheet t523 ファクト・シート Fact Sheet N N 56F8014 Demo Board Kit Installation Guide 3 0 English This reference manual describes the hardware on the 56F8014 Demonstration Board in detail. 1114039028706710234559 TSP 333.2 KB None None documents Y None 1114039028706710234559 /docs/en/user-guide/56F8014DEMO.pdf 333196 /docs/en/user-guide/56F8014DEMO.pdf MC56F8014DBUG N 2005-04-20 56F8014 Demonstration Board User Guide /docs/en/user-guide/56F8014DEMO.pdf /docs/en/user-guide/56F8014DEMO.pdf User Guide N Y 132339537837198660 2023-06-19 pdf en Mar 15, 2005 User Guide t792 ユーザ・ガイド User Guide N N 56F8014 Demonstration Board User Guide true ja 1 4 0 English The 56800E Flash Programmer provides a means to program the on-chip Flash of the 56800E DSC family. The Flash Memory blocks are programmed in circuit, using the JTAG/EOnCE interface. The 56800E Flash Programmer runs under a 32-bit Windows environment on PC compatible computers. A Parallel Command Converter or CodeWarrior USB TAP is needed to provide the interface between the JTAG/OnCE interface of the target system and the computer. 1128116417222721579465 TSP 578.2 KB None None documents Y None 1128116417222721579465 /docs/en/user-guide/56800EFPUG.pdf 578182 /docs/en/user-guide/56800EFPUG.pdf 56800EFPUG N 2005-09-30 56800E Flash Programmer - User's Guide /docs/en/user-guide/56800EFPUG.pdf /docs/en/user-guide/56800EFPUG.pdf User Guide N 132339537837198660 2023-06-19 pdf en Sep 30, 2005 User Guide t792 ユーザ・ガイド User Guide Y N 56800E Flash Programmer - User's Guide false ja ファクト・シート Fact Sheet 2 5 0 English 1158967608816732628155 TSP 114.0 KB None None documents None 1158967608816732628155 /docs/en/fact-sheet/56F8000EVMFS.pdf 113974 /docs/en/fact-sheet/56F8000EVMFS.pdf 56F8000EVMFS documents N 2006-09-22 56F8000 Hardware Development Tools Fact Sheet /docs/en/fact-sheet/56F8000EVMFS.pdf /docs/en/fact-sheet/56F8000EVMFS.pdf Fact Sheet N 736675474163315314 2022-12-07 pdf en Sep 21, 2006 736675474163315314 Fact Sheet Y N 56F8000 Hardware Development Tools Fact Sheet 6 0 English The MC56F8013 and MC56F8014 demonstration kits allow designers to develop and evaluate applications for 56F8000 digital signal controllers. 1127491886406710454668 TSP 116.7 KB None None documents None 1127491886406710454668 /docs/en/fact-sheet/56F8000DEMOFS.pdf 116715 /docs/en/fact-sheet/56F8000DEMOFS.pdf 56F8000DEMOFS documents N 2005-09-23 56F8000 Demonstration Kits - Fact Sheet /docs/en/fact-sheet/56F8000DEMOFS.pdf /docs/en/fact-sheet/56F8000DEMOFS.pdf Fact Sheet N 736675474163315314 2022-12-07 pdf en May 30, 2005 736675474163315314 Fact Sheet Y N 56F8000 Demonstration Kits - Fact Sheet セレクタ・ガイド Selector Guide 1 7 0 English Digital Signal Processors and Controller, Quarter 2, 2009, SG1004Q22009 L1010004267257 TSP 1.1 MB None None documents None L1010004267257 /docs/en/product-selector-guide/SG1004.pdf 1146625 /docs/en/product-selector-guide/SG1004.pdf SG1004Q22009 documents N N 2016-10-31 Digital Signal Processors and Controllers, SG1004 /docs/en/product-selector-guide/SG1004.pdf /docs/en/product-selector-guide/SG1004.pdf Selector Guide N 553557935274807777 2022-12-07 pdf N en Apr 17, 2009 553557935274807777 Selector Guide Y N Digital Signal Processors and Controllers, SG1004 false 0 DEMO56F8014 downloads ja true 0 Y TSP セレクタ・ガイド 1 /docs/en/product-selector-guide/SG1004.pdf 2016-10-31 L1010004267257 TSP 7 Apr 17, 2009 Selector Guide Digital Signal Processors and Controller, Quarter 2, 2009, SG1004Q22009 None /docs/en/product-selector-guide/SG1004.pdf English documents 1146625 None 553557935274807777 2022-12-07 N /docs/en/product-selector-guide/SG1004.pdf Digital Signal Processors and Controllers, SG1004 /docs/en/product-selector-guide/SG1004.pdf documents 553557935274807777 Selector Guide N en None Y pdf 0 N N Digital Signal Processors and Controllers, SG1004 1.1 MB SG1004Q22009 N L1010004267257 データ・シート 1 /docs/en/data-sheet/56f8014.pdf 2005-04-21 1114038876005711225875 TSP 1 May 23, 2008 Data Sheet データ・シート The 56F8014 is a member of the 56800E core-based family of Digital Signal Controllers (DSCs). Because of its low cost, configuration flexibility, and compact program code, the 56F8014 is well-suited for many applications such as industrial control, motion control, home appliances, general purpose inverters, smart sensors, fire and security systems, switched-mode power supplies, power management, and medical monitoring applications. None /docs/en/data-sheet/56f8014.pdf English 1820506 None Data Sheet 2022-12-07 /docs/en/data-sheet/56f8014.pdf 56F8014 Technical Data - Data Sheet /docs/en/data-sheet/56f8014.pdf documents 980000996212993340 Data Sheet N Y en None Y t520 pdf 11 N 56F8014 Technical Data - Data Sheet MC56F8014MFAE,MC56F8014VFAE 1.8 MB MC56F8014 N 1114038876005711225875 ファクト・シート 3 /docs/en/fact-sheet/56F8000EVMFS.pdf 2006-09-22 1158967608816732628155 TSP 5 Sep 21, 2006 Fact Sheet None /docs/en/fact-sheet/56F8000EVMFS.pdf English documents 113974 None 736675474163315314 2022-12-07 /docs/en/fact-sheet/56F8000EVMFS.pdf 56F8000 Hardware Development Tools Fact Sheet /docs/en/fact-sheet/56F8000EVMFS.pdf documents 736675474163315314 Fact Sheet N en None Y pdf 0 N 56F8000 Hardware Development Tools Fact Sheet 114.0 KB 56F8000EVMFS N 1158967608816732628155 /docs/en/fact-sheet/56F8000DEMOFS.pdf 2005-09-23 1127491886406710454668 TSP 6 May 30, 2005 Fact Sheet The MC56F8013 and MC56F8014 demonstration kits allow designers to develop and evaluate applications for 56F8000 digital signal controllers. None /docs/en/fact-sheet/56F8000DEMOFS.pdf English documents 116715 None 736675474163315314 2022-12-07 /docs/en/fact-sheet/56F8000DEMOFS.pdf 56F8000 Demonstration Kits - Fact Sheet /docs/en/fact-sheet/56F8000DEMOFS.pdf documents 736675474163315314 Fact Sheet N en None Y pdf 0 N 56F8000 Demonstration Kits - Fact Sheet 116.7 KB 56F8000DEMOFS N 1127491886406710454668 /docs/en/fact-sheet/8014DemoBoard_kigbw.pdf 2005-05-16 1116289630810688032408 TSP 2 Mar 30, 2005 Fact Sheet ファクト・シート This document provides instructions on how to set up the NXP 56F8014 Demonstration Board with the CodeWarrior IDE. None /docs/en/fact-sheet/8014DemoBoard_kigbw.pdf English 54981 None Fact Sheet 2022-12-07 /docs/en/fact-sheet/8014DemoBoard_kigbw.pdf 56F8014 Demo Board Kit Installation Guide /docs/en/fact-sheet/8014DemoBoard_kigbw.pdf documents 736675474163315314 Fact Sheet N Y en None N t523 pdf 0 N 56F8014 Demo Board Kit Installation Guide 55.0 KB DEMO56F8014KIG N 1116289630810688032408 ユーザ・ガイド 2 /docs/en/user-guide/56F8014DEMO.pdf 2005-04-20 1114039028706710234559 TSP 3 Mar 15, 2005 User Guide ユーザ・ガイド This reference manual describes the hardware on the 56F8014 Demonstration Board in detail. Y None /docs/en/user-guide/56F8014DEMO.pdf English 333196 None User Guide 2023-06-19 /docs/en/user-guide/56F8014DEMO.pdf 56F8014 Demonstration Board User Guide /docs/en/user-guide/56F8014DEMO.pdf documents 132339537837198660 User Guide N Y en None N t792 pdf 0 N 56F8014 Demonstration Board User Guide 333.2 KB MC56F8014DBUG N 1114039028706710234559 /docs/en/user-guide/56800EFPUG.pdf 2005-09-30 1128116417222721579465 TSP 4 Sep 30, 2005 User Guide ユーザ・ガイド The 56800E Flash Programmer provides a means to program the on-chip Flash of the 56800E DSC family. The Flash Memory blocks are programmed in circuit, using the JTAG/EOnCE interface. The 56800E Flash Programmer runs under a 32-bit Windows environment on PC compatible computers. A Parallel Command Converter or CodeWarrior USB TAP is needed to provide the interface between the JTAG/OnCE interface of the target system and the computer. Y None /docs/en/user-guide/56800EFPUG.pdf English 578182 None User Guide 2023-06-19 /docs/en/user-guide/56800EFPUG.pdf 56800E Flash Programmer - User's Guide /docs/en/user-guide/56800EFPUG.pdf documents 132339537837198660 User Guide N en None Y t792 pdf 0 N 56800E Flash Programmer - User's Guide 578.2 KB 56800EFPUG N 1128116417222721579465 true Y Tools
