8-Bit MCU with Integrated Vreg, Configurable H-B, LIN

製品詳細

セクションを選択:

ブロック図

MM908E625

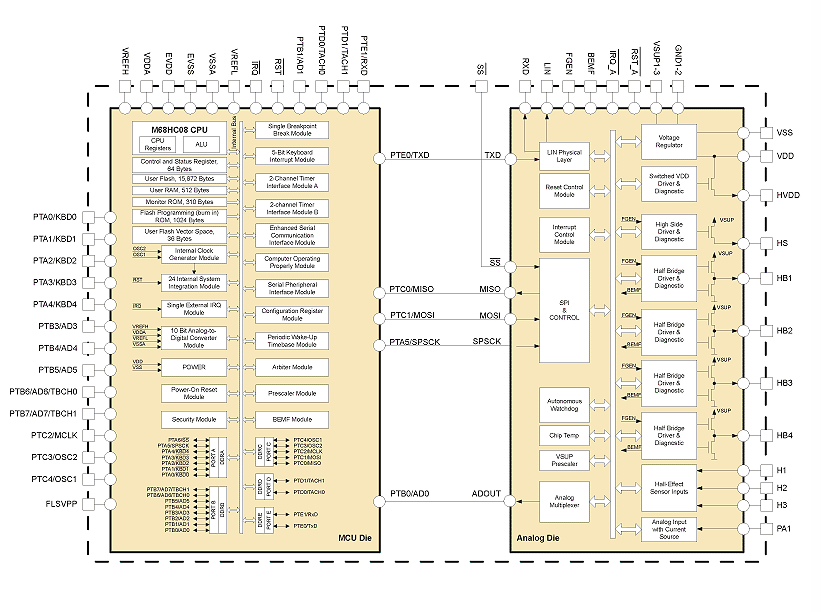

 MM908E625 Block Diagram

Features

Key Features

  • High-performance M68HC908EY16 core
  • 16 KB of on-chip flash memory and 512 B of RAM
  • Internal clock generation module
  • Two 16-bit, two-channel timers
  • 10-bit ADC
  • LIN physical layer
  • Autonomous watchdog with cyclic wake-up
  • Three two-pin Hall effect sensor input ports
  • One analog input with switchable current source
  • Four low RDS(ON) half-bridge outputs
  • One low RDS(ON) high side output
  • 13 micro controller I/Os
