Getting Started with the KITPF5300SKTEVM Evaluation Board

最終更新日時： Jun 28, 2023サポート KITPF5300SKTEVM

このドキュメントの内容

  • 1

    Out of the Box

  • 2

    Get Hardware

  • 3

    Configure Hardware

お客様の KITPF5300SKTEVM

このドキュメントの内容

1. Out of the Box

The NXP analog product development boards provide an easy-to-use platform for evaluating NXP products. The boards support a range of analog, mixed-signal and power solutions. They incorporate monolithic integrated circuits and system-in-package devices that use proven high-volume technology. NXP products offer longer battery life, a smaller form factor, reduced component counts, lower cost and improved performance in powering state-of-the-art systems.

This page will guide you through the process of setting up and using the KITPF5300SKTEVM board.

1.1 Kit Content and Packing List

The KITPF5300SKTEVM kit contents include:

  • Assembled and tested evaluation board and preprogrammed FRDM-KL25Z microcontroller
  • 3.0 ft USB-STD A to USB-B-mini cable
  • Jumpers mounted on board

1.2 Software

The software listed here must be installed before working with this evaluation board.

  • NXP GUI installation package

次へGet Hardware

2. Get Hardware

2.1 Board Features

  • VIN and PVIN connectors
  • SW1 output capability up to 15 A
  • Load slammer connector
  • PGOOD output
  • Emulation mode capabilities
  • USB connection and GUI for register access, OTP emulation and programming

2.2 Bundle Description

The KITPF5300SKTEVM provides a way to OTP program the PF5300 and conduct basic power-up testing of a programmed part. Loading of the DC-DC converter is not allowed.

2.3 Bundle Components

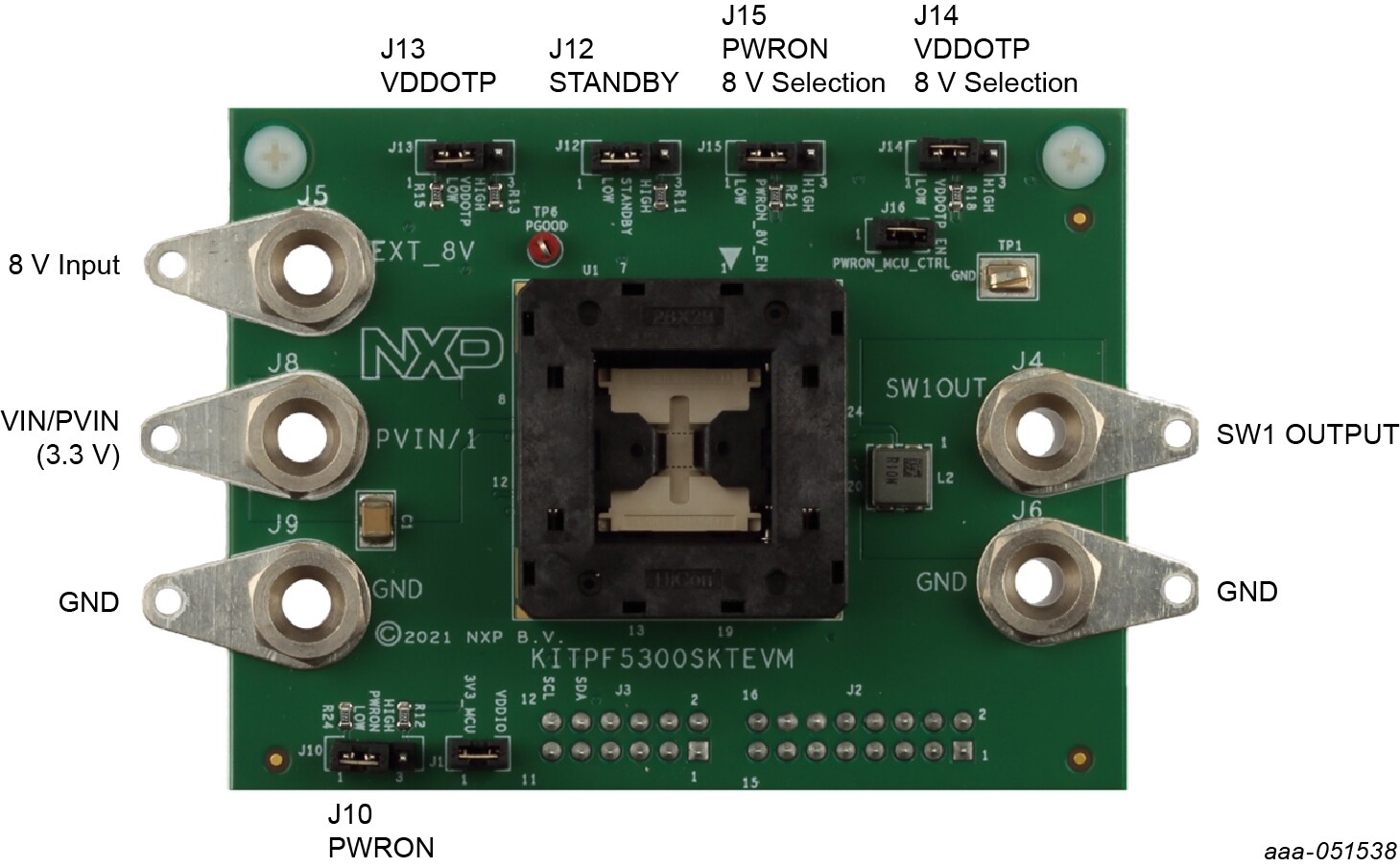

Overview of the KITPF5300SKTEVM board

Overview of the KITPF5300SKTEVM board

Table 1. Board description

Position Function Description
J5 EXT_8V 8.0 V supply input needed for OTP programming
J8 VIN / PVIN Input power supply (3.3 V)
J9, J6 GND Ground
J4 Output voltage Output voltage
J12 STANDBY 1-2: Default. STANDBY = GND
2-3: STANDBY = VDDIO
J10 PWRON
Functional control		 Open: Default. PWRON controlled through J16.
1-2: PWRON = GND
2-3: PWRON = VDDIO
Use only if J16 is open.
J13 VDDOTP configuration Open: Default. Use for OTP programing.
1-2: Connect to ground.
2-3: Pull up to VDDIO. Use if trying XFAILB functionality.
J4 VDDOTP 8V selection 1-2: Do not apply EXT_8V to VDDOTP/XFAILB pin
2-3: Default. Apply 8V_EXT to VDDOTP/XFAILB pin
Open: If evaluating XFAILB functionality
J5 PWRON configuration Control PWRON voltage in relation to EXT_8V
1-2: Apply EXT_8V/2 to PWRON pin
2-3: Default. Apply EXT_8V to PWRON pin
J6 PWRON connectivity Open: PWRON controlled by J10
Closed: Default. PWRON controlled by J15/MCU.
J1 VDDIO supply Closed: Default

前へOut of the Box
次へConfigure Hardware

3. Configure Hardware

3.1 Configure the Hardware

Once the user has installed the NXP GUI, follow these instructions to quickly power up the board.

Powering up the board with pre-programmed OTP configuration:

  1. Make sure that the board has the right jumper configuration.
  2. Ensure that SW4 is in the NORMAL position.
  3. Verify that the FRDM-KL25Z microcontroller is plugged in, and the USB cable on the FRDM-KL25Z microcontroller connector side is attached. It is important that the USB cable is connected to a PC because the cable enables communication with the NXP GUI and provides the VDDIO reference for the IC.
  4. Apply VIN and PVIN with PWRON = 0.
  5. Move J10 from 1-2 to 2-3 to turn on the PF53.
  6. Open the GUI and communicate as required.

Overview of the KITPF5300SKTEVM board

Overview of the KITPF5300SKTEVM board

Powering up the board in Debug mode:

Debug mode allows the user to modify OTP mirror registers before powering up. This facilitates exercising different features of the PF5300 while deciding on the best configuration for a given application.

  1. Ensure that jumpers in the board are configured.
  2. Connect the FRDMKL25Z board to the socketed board.
  3. Connect the mini-USB cable from the USB port of the KL25Z to the PC that runs the GUI.
  4. Apply 8.0 V to the EXT_8V connector J5.
  5. Apply 3.3 V to the VIN/PVIN connector J8.
  6. Open the GUI and click Start in the top-left.
  7. Select Test Mode from the menu selection as shown below, then click Apply.
  8. Go to the PROG tab in the left side selection.
  9. Select the programming source – either from a script file, or to use the existing GUI configuration.
  10. Click the Program button to program the OTP fuses with the selected configuration.

前へGet Hardware
