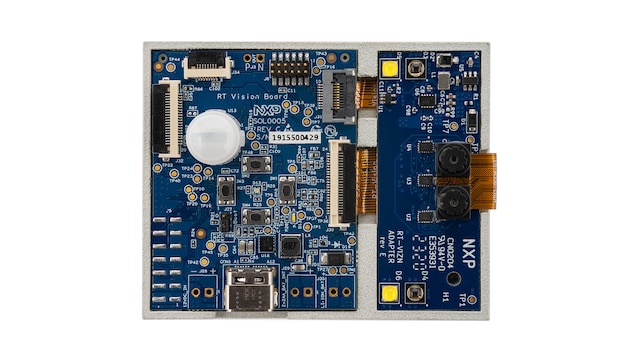

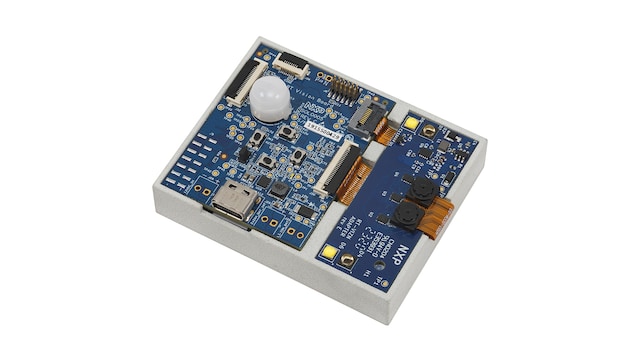

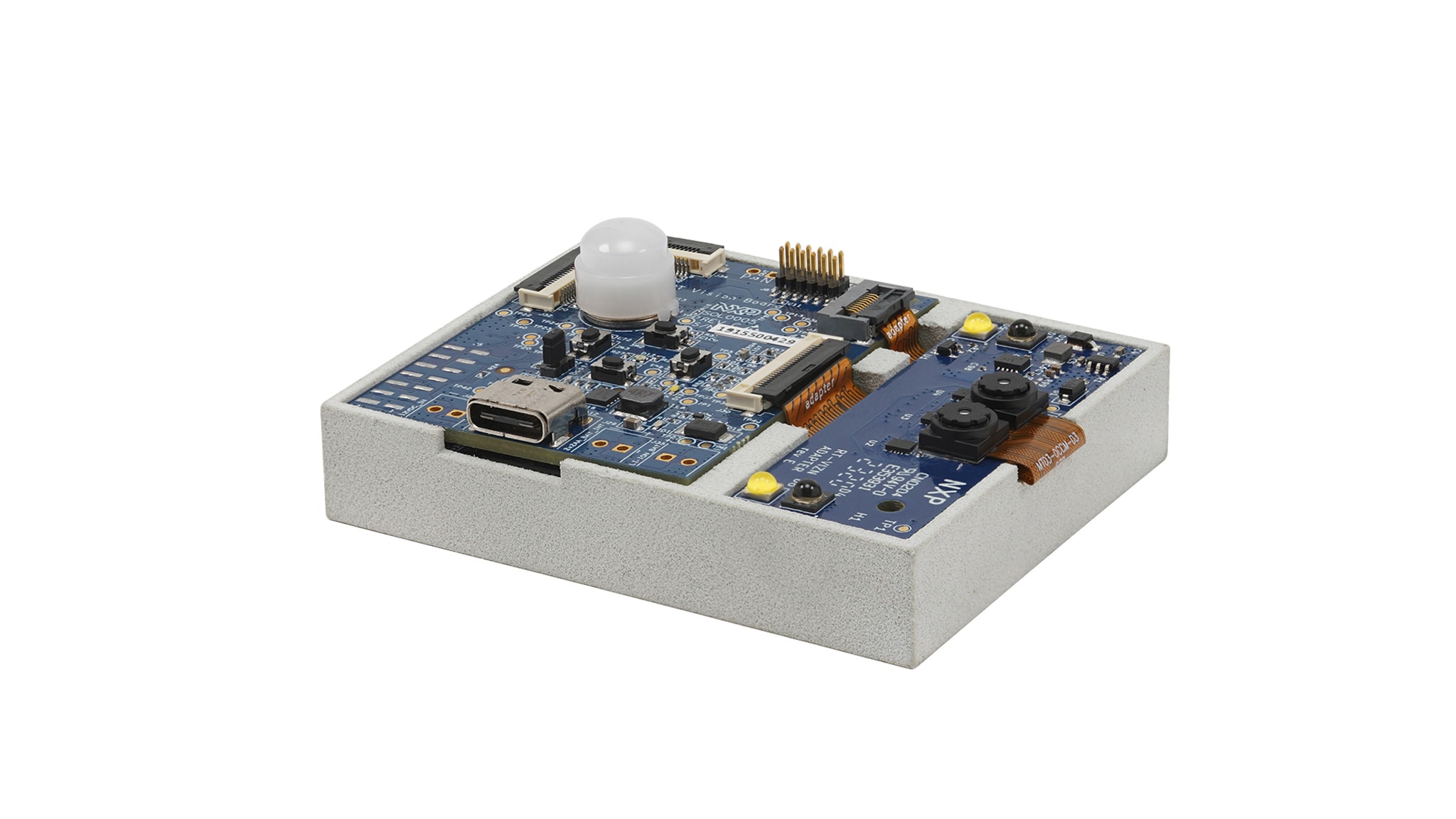

NXP EdgeReady MCU-Based Solution for Face Recognition with Liveness Detection

SLN-VIZNAS-IOT

画像にカーソルを合わせると拡大表示されます。

ブロック図

図を選択する。:

i.MX RT106F Block Diagram

i.MX RT106F Anti-Spoofing Face Recognition Hardware Block Diagram

i.MX RT106F Software Block Diagram

i.MX RT106F Anti-Spoofing Face Recognition Software Block Diagram

対応製品

プロセッサ&マイクロコントローラ

i.MX RTクロスオーバーMCU

Features

MCU

  • MIMXRT106FDVL6A/B Crossover MCU

Memory

  • 1 MB integrated SRAM
  • 32 MB HyperFlash
  • 32 MB SDRAM

Cameras and Display

  • Camera Module with OnSemi MT9M114 image sensors (parallel CSI interface and RGB or IR pass filter) Compatible Camera Module also available with GalaxyCore GC0308 image sensors
  • Optional LCD Display (SPI and GPIO)

Connectivity

  • Murata 1DX Wi-Fi/Bluetooth module
  • Ethernet (100/100) controller

Sensors

  • PIR Sensor (IRA-S210ST01)

Software and support

  • MCUXpresso SDK with FreeRTOS support
  • MCUXpresso IDE
  • MCUXpresso Config Tools
  • VIZNAS SDK including NXP OASIS Lite machine learning vision engine

購入オプション

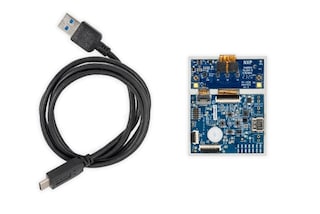

SLN-VIZNAS-IOT-Image

クリックして展開

  • SLN-VIZNAS-IOT

  • NXP EdgeReady MCU-Based Solution for Face Recognition with Liveness Detection.

  • JP¥29,288
  • の数量に対して 1
代理店から購入する

ドキュメント

クイック・リファレンス ドキュメンテーションの種類.

3 ドキュメント

デザイン・ファイル

3 設計・ファイル

ソフトウェア

3 ソフトウェア・ファイル
