LPC8N04 Development Board for LPC8N04 MCU

OM40002 アクティブ

画像にカーソルを合わせると拡大表示されます。

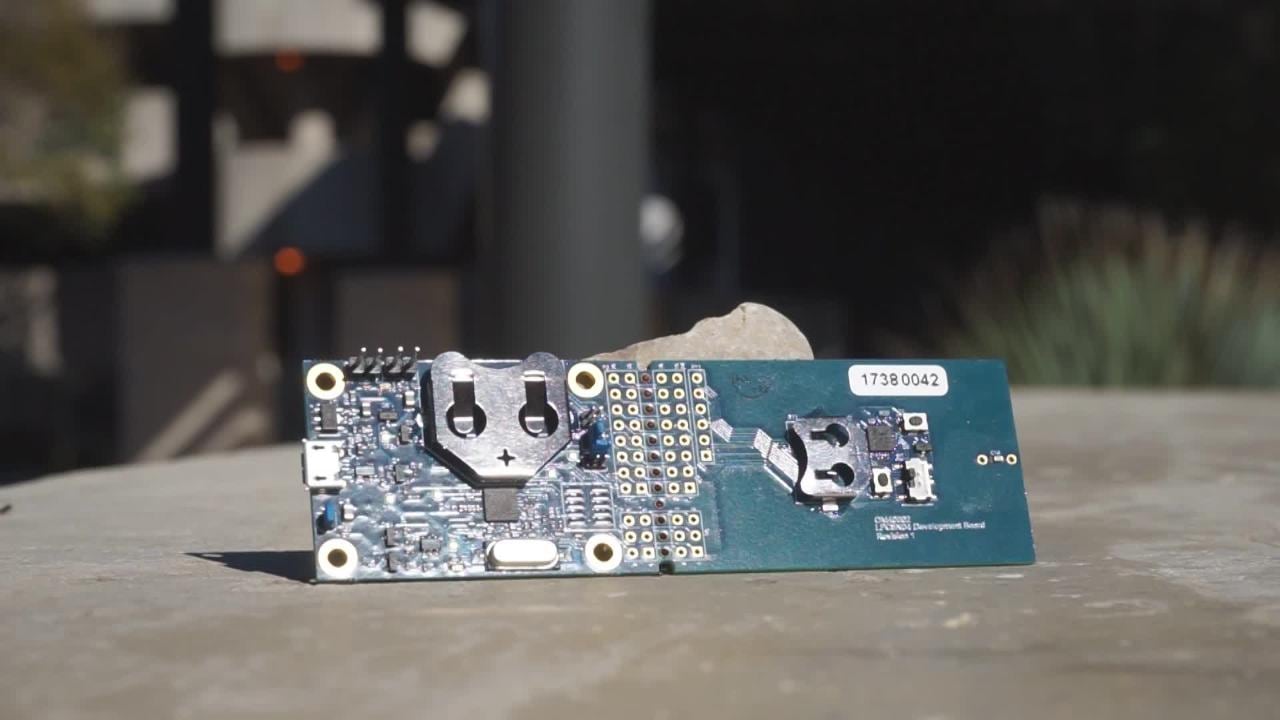

The LPC8N04 Development Board provides a powerful and flexible development system for NXP's innovative, NFC-enabled LPC8N04 Arm® Cortex®-M0+ based MCU. The board can be used with a range of development tools, including the MCUXpresso IDE toolchain. The board is complemented by a simple smartphone application and firmware to utilize the built-in LED array and speaker in a scrolling message demo application with an option for music playback. The LPC8N04 process section of the board, with its integral antenna, can be detached for deployment in prototype or proof-of-concept designs. The board also includes an onboard CMSIS-DAP debug probe which is supported by many IDEs, so development can be started with no additional cost.

製品詳細

対応製品

プロセッサ＆マイクロコントローラ

LPC800 Arm Cortex-M0+

  • LPC8N04: Arm® Cortex®-M0+コア・ベースの低価格マイクロコントローラ (MCU)

Features

Microcontroller

  • LPC8N04 Arm® Cortex®-M0+ MCU running at up to 8 MHz

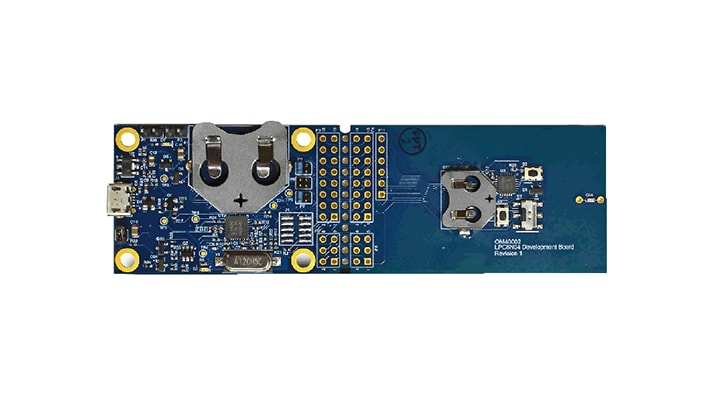

  • Detachable LPC8N04 minimal target with integrated PCB antenna

Debug

  • Onboard CMSIS-DAP (debug probe), based on LPC11U35 MCU
  • Debug connector to allow debug of target MCU using an external probe

Audio

  • Surface mount speaker with an amplifier for PWM-based sound output

Power Management

  • Supports energy harvesting operation with no battery or external power connection
  • Capable of operating from a choice of coin battery types (not supplied)

Tools and OS Support

  • Compatible with MCUXpresso IDE and other popular toolchains (incl. IAR and Keil®)

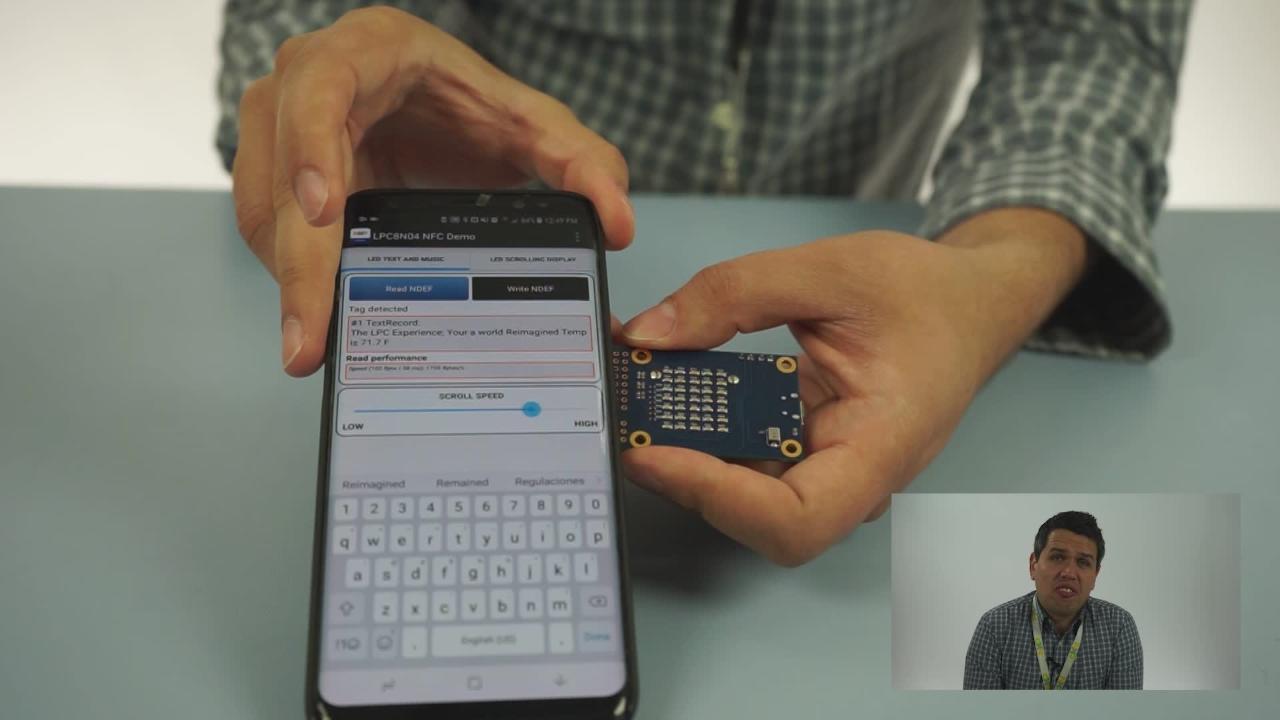

  • Preprogrammed with demo message scrolling/tune playing application (requires NFC-enabled Android phone to use)

User Components

  • User and target reset buttons

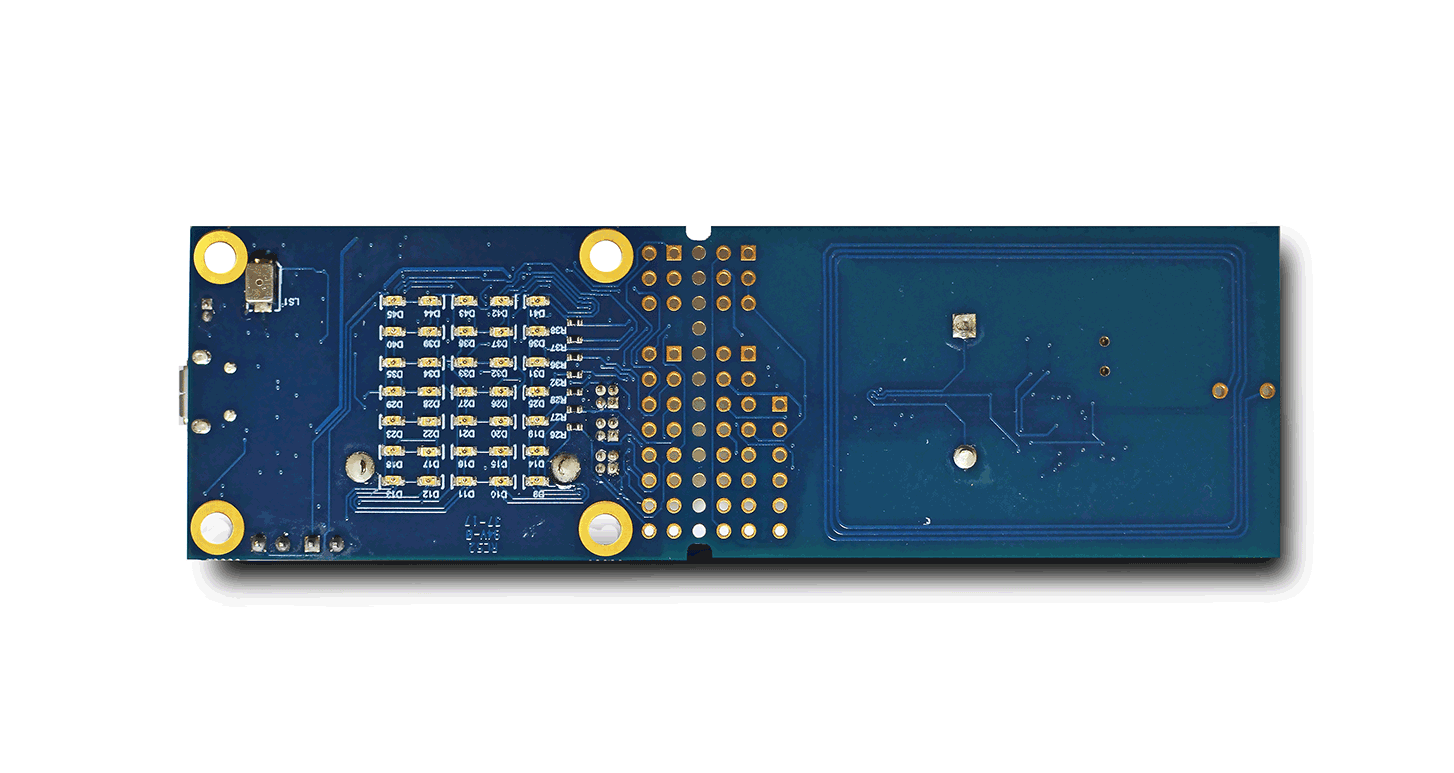

  • 5x7 LED array for user applications

購入オプション

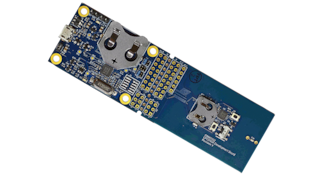

OM40002-Image

クリックして展開

  • OM40002
    アクティブ

  • LPC8N04 Development Kit.

  • LPC8N04 Development Board

  • $22.94 USD
  • の数量に対して 1
    • 在庫: 在庫あり
    • 在庫: 57
    • 配送: 通常 1～2営業日以内に配送
カートに入れる
代理店からの注文
