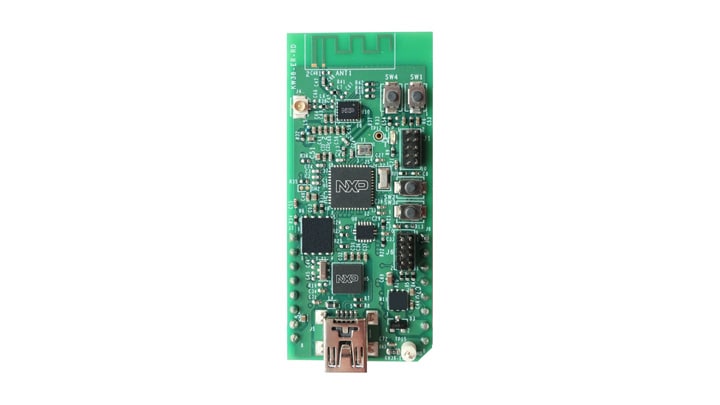

KW38 +20dBm Extended Range Reference Design Board
- This board is not for sale. Design files provided below.
The KW38-ER-RD extended range module reference design uses an external power amplifier to boost the transmitter output power to +20 dBm. This enables a wider range for applications that require communications over long distances or in harsh RF environments. The module uses the KW38 wireless MCU, which is pin-to-pin compatible with KW37 and KW39. The KW38-ER-RD extended range module is a small form-factor reference design compatible with the mikroBUS click board standard.
製品詳細
対応製品
ワイヤレス・コネクティビティ
Bluetooth Low Energy
- KW39-38-37: KW39/38/37: 32-Bit Bluetooth 5.0 Long-Range MCUs with CAN FD and LIN Bus Options, Arm® Cortex®-M0+ Core
プロセッサ＆マイクロコントローラ
K2x / KS2x USB
- K22_120: Kinetis® K22-120 MHz, Cost Effective, Full-Speed USB Microcontrollers (MCUs) based on Arm® Cortex®-M4 Core
Features
Processor

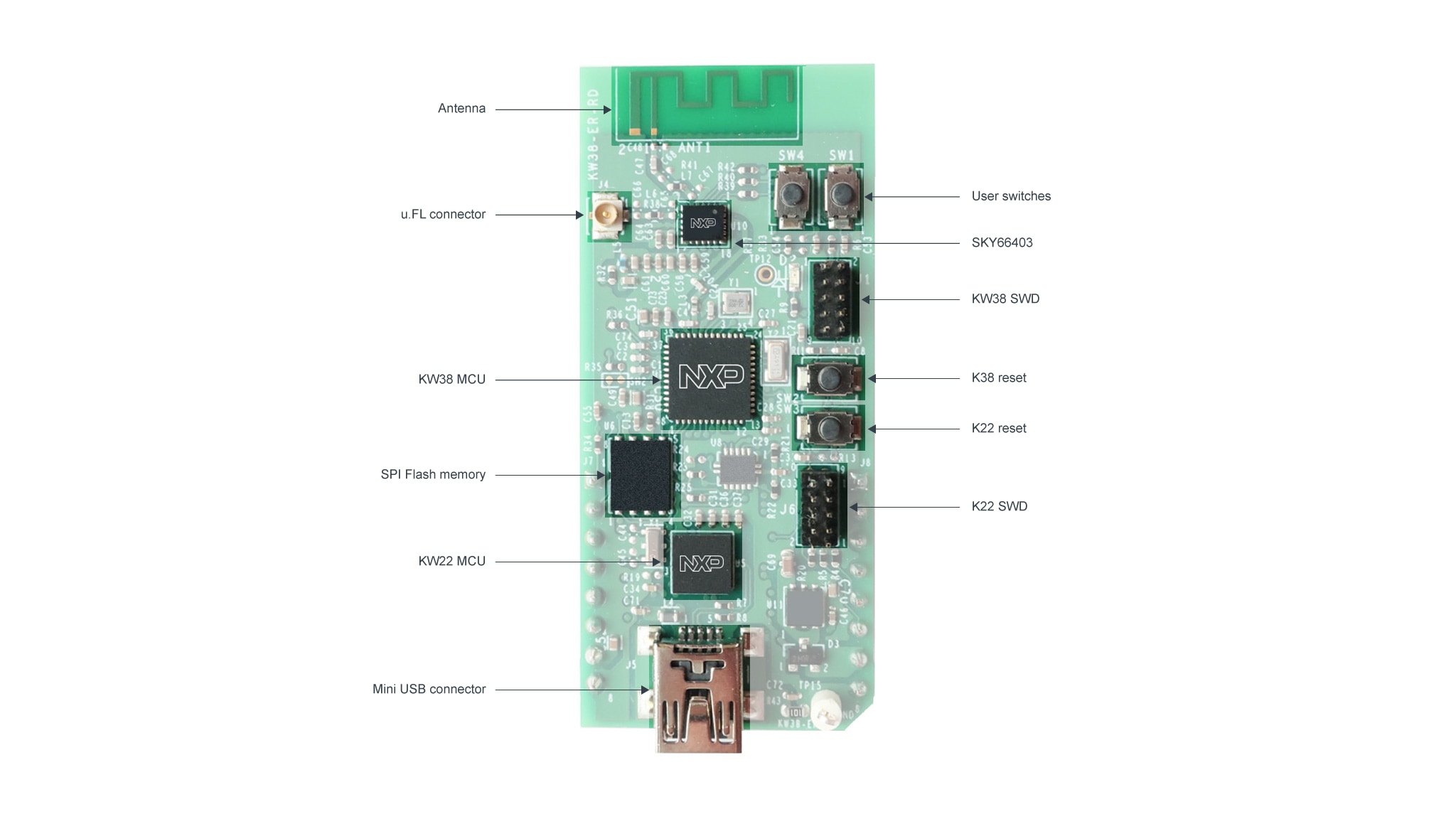

- ER-RD-KW38 FRDM Development Board includes
- Can be configured as Host or Shield for connection to Host Processor.
- MKW38Z512VFT4
Form Factor

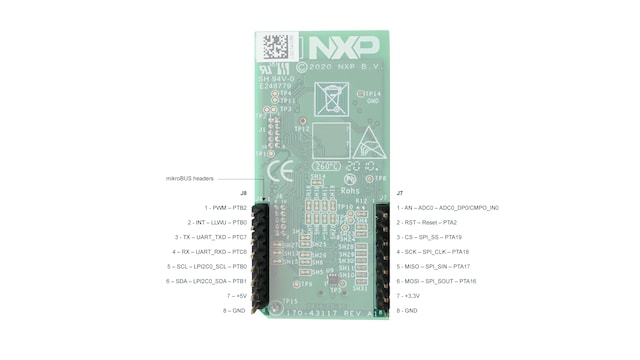

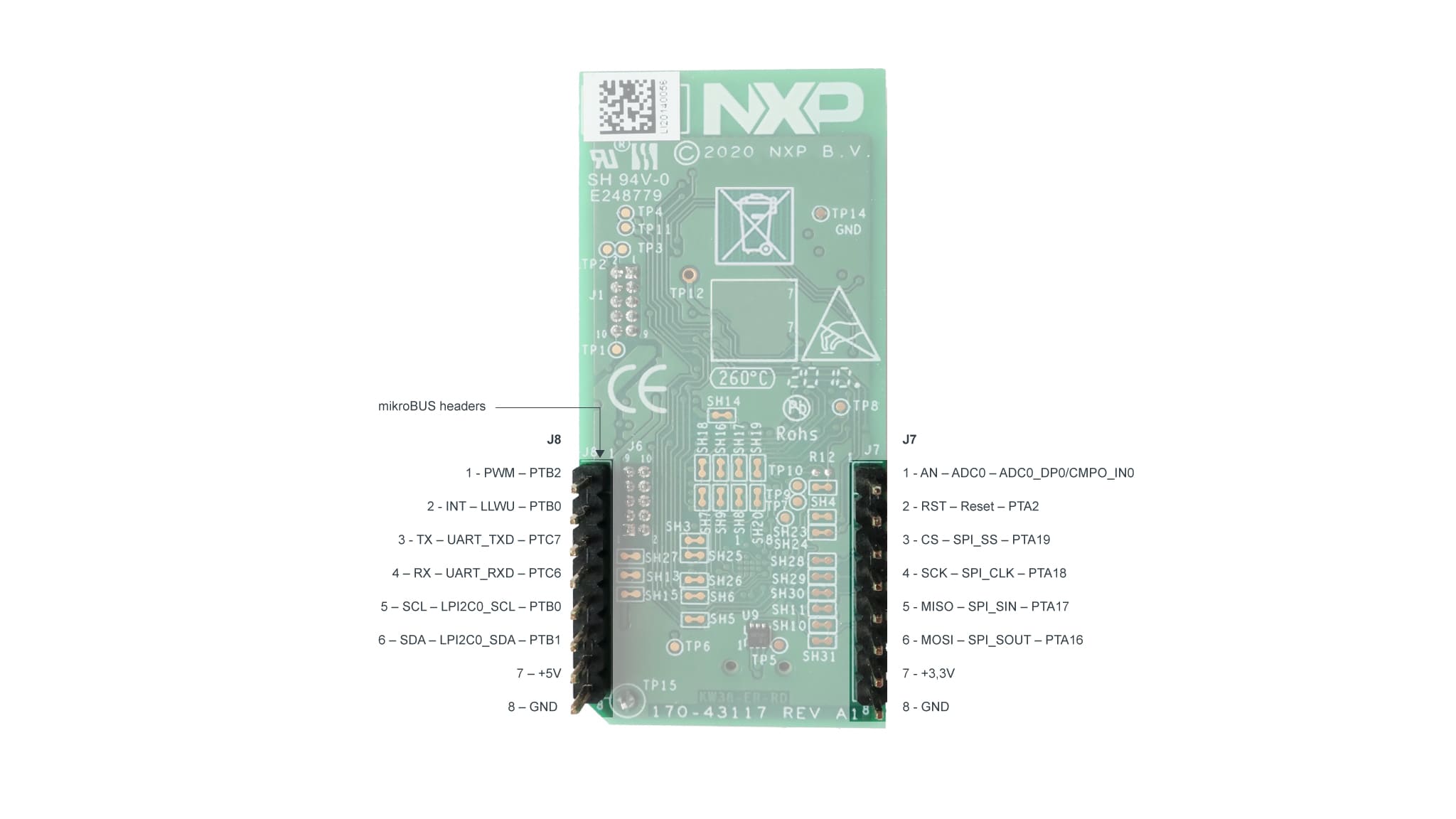

- PCB (25.4 x 57.15 mm) – compatible with the MikroBUS Click module L size
Debug
- OSBDM onboard open source programming and debugging tool
- CMSIS-DAP debug interface
- OpenSDA
- JTAG
Software and Support Application Development
ドキュメント
クイック・リファレンス ドキュメンテーションの種類
2 ドキュメント
アプリケーション・ノート (1)
-
AN13084 KW38-ER-RD RF System Evaluation Report for Bluetooth LowEnergy Applications[AN13084-KW38-ER-RD-RF-SERBLE]
ユーザ・ガイド (1)
-
KW38-ER-RD Module Board User's Guide[KW38EREDMBUG]はじめに
