S12ZVHY family Development Board

TRK-S12ZVHY64

画像にカーソルを合わせると拡大表示されます。

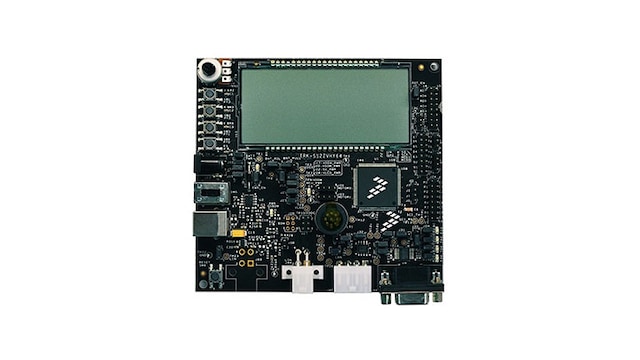

The TRK-S12ZVHY64 is a development board for the S12 MagniV® S12ZVHY family of 16-bit MCUs, which are targeted for motorcycle and small vehicle instrument cluster applications. It is designed to enable rapid prototyping and development for applications requiring a segment LCD and Analog Gauges. It takes full advantage of the MagniV high voltage technology alowing it to operate with up to 18V of power supply. The board features a custom LCD, two stepper motor headers and a low power speaker for alert tone generation.

The TRK-S12ZVHY64 operates as a standalone debug tool featuring the open-source debugging tool OSBDM compatible with the BDM protocol.

製品詳細

対応製品

プロセッサ＆マイクロコントローラ

S12 MagniVミックスド・シグナルMCU

  • S12ZVH: S12ZVH MagniV Mixed-Signal MCU

Features

Microcontroller

  • S12ZVFP64 S12 MagniV® MCU in a 144 LQFP package

Connectivity

  • LIN connector interfaced with on-chip LINPHY transceiver
  • CAN physical transceiver and connector (unpopulated)
  • SCI serial communication interface (unpopulated, available through OSDM)
  • Unused pins available on GPIO headers

Debug

  • On-board BDM connection via open source OSBDM circuit using the MPC9S08JM MCU

Audio

  • Low-power piezoelectric speaker

Display

  • Custom 160 segment LCD

Components

  • CAN physical transceiver and connector (unpopulated)
  • 4 user LEDs, 4 user buttons, and 1 potentiometer

購入オプション

TRK-S12ZVHY64-Image

クリックして展開

  • TRK-S12ZVHY64

  • Customer Evaluation Board for the Lumen2W Device.

    • TRK-S12ZVHY64 Board
    • TRK-S12ZVHY64 DVD-ROM (includes CodeWarrior software)
    • USB A-to-B Cable
    • NXP Warranty Card
