TRK-USB-MPC5604B
-
StarterTRAK USB Dev Kit for Qorivva MPC5604B, Primary Tower connector, OSBDM debug through USB.
デザイン・ファイル
1 設計・ファイル
-
プリント基板と回路図
TRK-USB-MPC5604B Schematic
MPC5604B StarterTRAK USB Development System
TRK-USB-MPC5604B アラートの受信

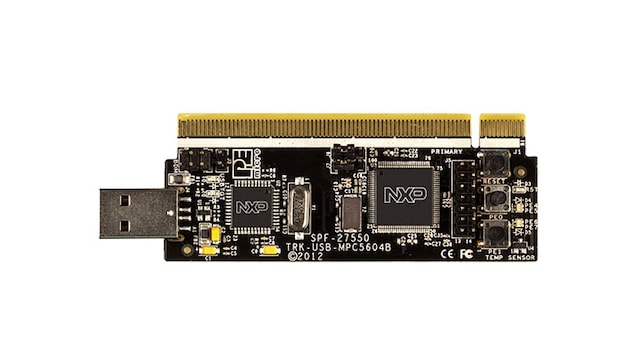

Our StarterTRAK USB kit (TRK-USB-MPC5604B) is designed to easily and inexpensively test drive the NXP® 32-bit MPC5xxx MCUs. Along with the MPC5604B MCU, it features a PCI card-edge for compatibility with the NXP Tower® System so you can create a custom development system based on your design needs.
For a full-featured NXP MPC560xB development kit, please refer to the TRK-MPC5606B StarterTRAK Development Kit.
The NXP MPC560xB family of 32-bit MCUs includes the latest in integrated devices for auto body electronics applications. These scalable Power Architecture® devices are supported by an enablement ecosystem that helps you quickly implement your designs.
製品詳細
対応製品
プロセッサ＆マイクロコントローラ
超高信頼性MPC56xx MCU
- MPC560xB: Ultra-Reliable MPC56xB MCU for Automotive and Industrial General Purpose
Features
Microcontroller
- MPC5604B MCU in a 100 LQFP package
Connectivity
- Primary Tower® System connector
Debug
- OSBDM debugger through USB
Sensors
- Temperature sensor
User components
- Two bicolor LEDs
- Two push buttons
Support
- CodeWarrior® Development Studio evaluation license
- RAppID evaluation license
- Software labs and code examples
購入オプション
ドキュメント
クイック・リファレンス ドキュメンテーションの種類.
1-5 の 7 ドキュメント
-
ファクト・シート
StarterTRAK USB Development Kit – Fact Sheet注目
-
ユーザ・ガイド
TRK-USB-MPC5604B User Manual注目
-
クイック・リファレンス・ガイド
TRK-USB-MPC5604B Quick Start Guide注目
-
ファクト・シート
NXP® MPC560xB Family Fact Sheet注目
