OM27160: Development Kits for PN7160 Plug’n Play NFC Controller

PN7160-EVK

画像にカーソルを合わせると拡大表示されます。

The PN7160 customer development kit, designed to help simplify development and reduce time to market, includes a PN7160 controller board with I²C or SPI interface, Arduino and Raspberry Pi interface boards and a sample card. Standalone controller boards are also available.

対応製品

RFID

NFCリーダ

  • PN7160: 統合型ファームウェアおよびNCIインターフェース搭載NFC Plug and Playコントローラ

Features

Interfaces

  • SPI or I²C

Compatibility

  • Connection header compatible with Raspberry Pi or Arduino

Connectivity

  • NFC

Tools and OS support

  • Linux, Android FreeRTOS and no OS

購入オプション

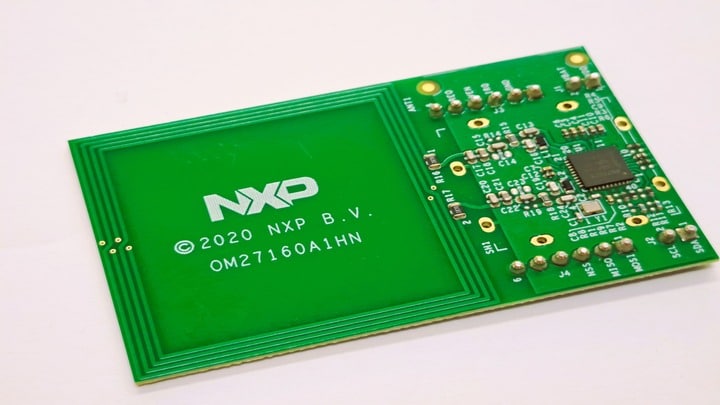

OM27160A1-Image

クリックして展開

  • OM27160A1
    アクティブ

  • OM27160: Development Kits for PN7160 Plug’n Play NFC Controller.

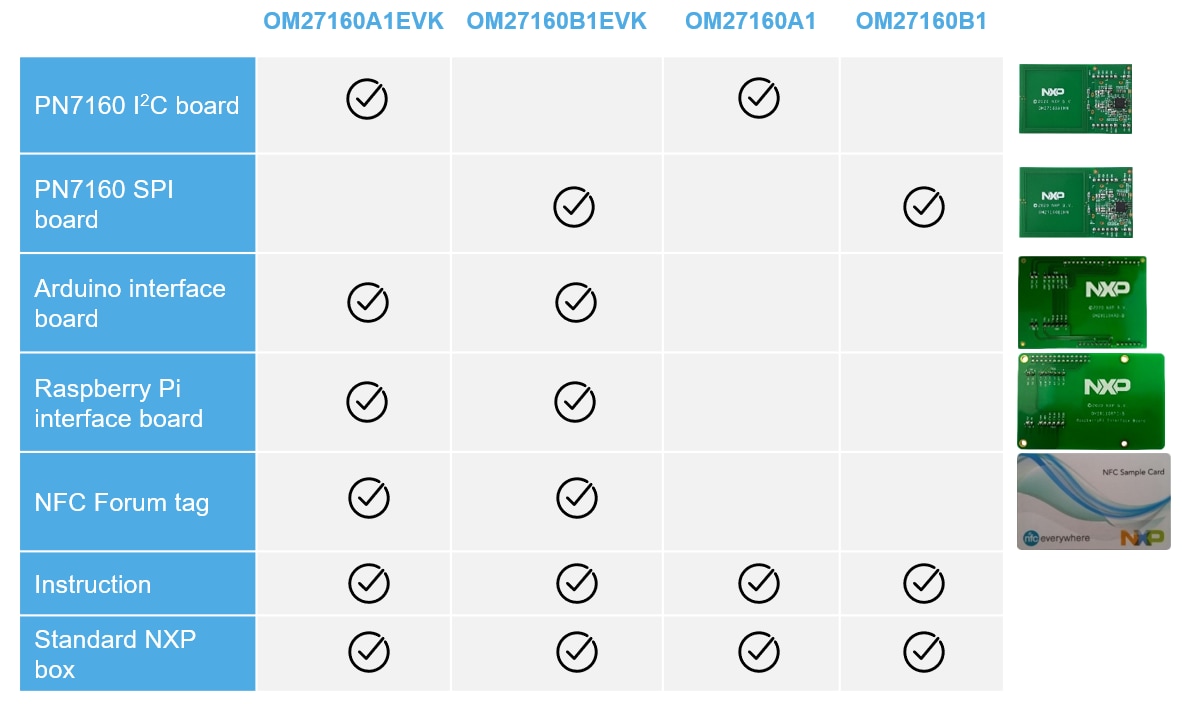

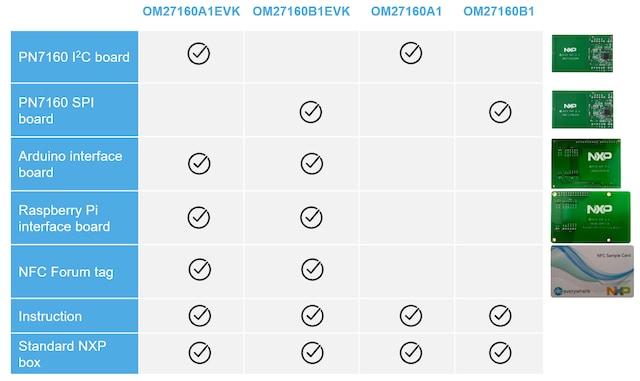

  • Kit Contains:

    • 1 development board with I²C interface
  • $51.75 USD
  • の数量に対して 1
    • 在庫: 在庫あり
    • 在庫: 3
    • 配送: 通常 1～2営業日以内に配送
カートに入れる
代理店からの注文

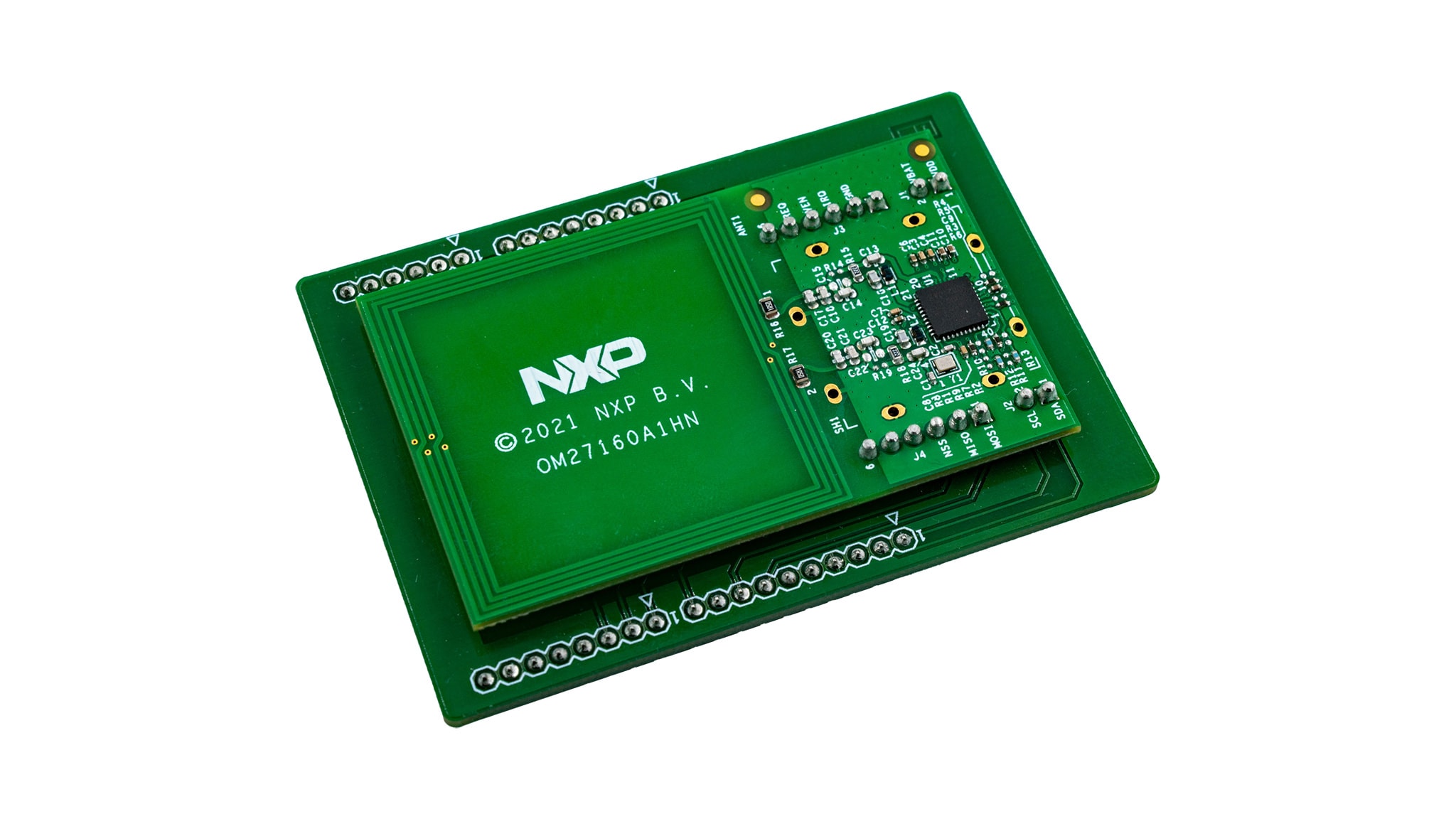

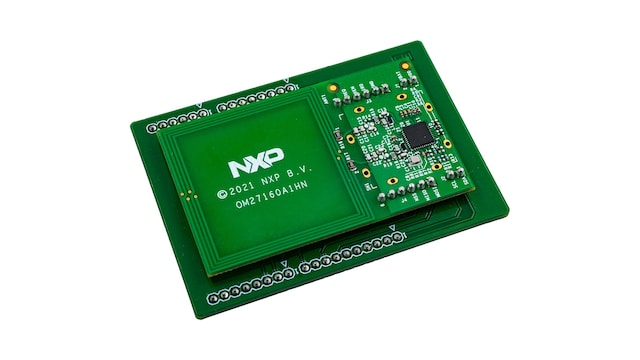

OM27160A1EVK-Image

クリックして展開

  • OM27160A1EVK
    アクティブ

  • OM27160: Development Kits for PN7160 Plug’n Play NFC Controller.

  • Kit Contains:

    • 1 development board with I²C interface
    • 1 Arduino interface board
    • 1 Raspberry Pi interface board
    • 1 NFC Forum compliant NFC tag
  • $89.00 USD
  • の数量に対して 1
    • 在庫: 保留中の在庫
カートに入れる
代理店からの注文
OM27160B1EVK-Image

クリックして展開

  • OM27160B1EVK
    アクティブ

  • OM27160: Development Kits for PN7160 Plug’n Play NFC Controller.

  • Kit Contains:

    • 1 development board with SPI interface
    • 1 Arduino interface board
    • 1 Raspberry Pi interface board
    • 1 NFC Forum compliant NFC tag
  • $74.75 USD
  • の数量に対して 1
    • 在庫: 在庫あり
    • 在庫: 1
    • 配送: 通常 1～2営業日以内に配送
カートに入れる
代理店からの注文

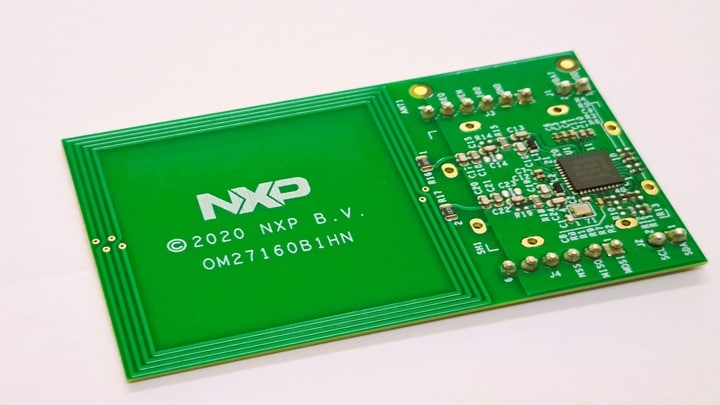

OM27160B1-Image

クリックして展開

  • OM27160B1
    アクティブ

  • OM27160: Development Kits for PN7160 Plug’n Play NFC Controller.

  • Kit Contains:

    • 1 development board with SPI interface
  • $51.75 USD
  • の数量に対して 1
    • 在庫: 在庫あり
    • 在庫: 10
    • 配送: 通常 1～2営業日以内に配送
カートに入れる
代理店からの注文
