Multi-Channel Continuous Glucose Monitoring Design Files新規

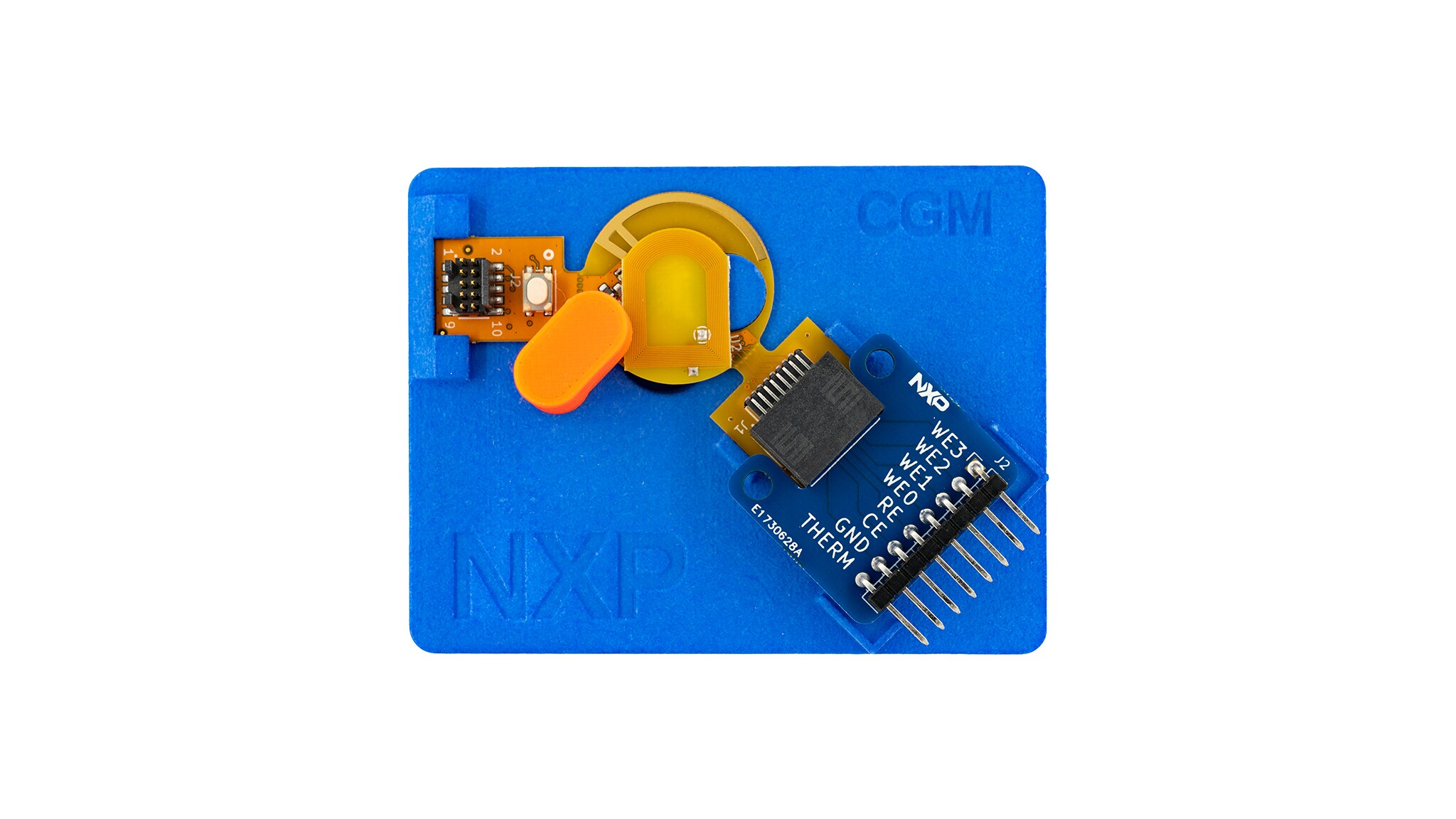

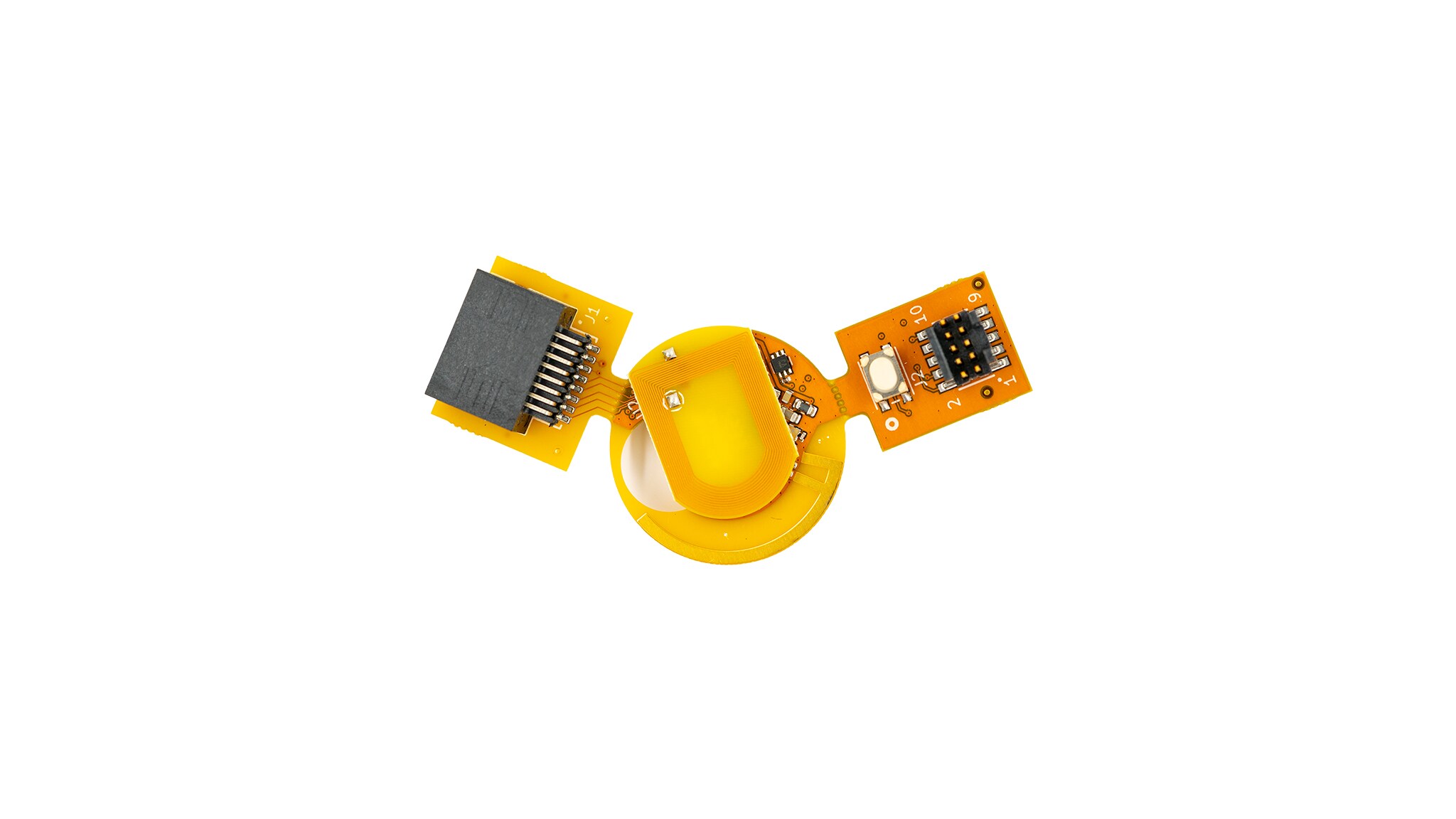

Multi-Channel Continuous Glucose Monitoring (CGM) Solutions
- 本ページには、試作段階の製品に関する情報が含まれています。記載されている仕様および情報は、予告なく変更される場合があります。詳細については、担当営業までお問い合わせください。
NXP's Continuous Glucose Monitoring (CGM) reference solution helps healthcare companies and partners build compact, accurate and power‑efficient patient monitoring devices. It combines an ultra‑low‑power (ULP) multichannel electrochemical analog front-end (AFE)—including the MCX W23 Bluetooth® Low Energy (LE) microcontroller (MCU)—for precise sensing, secure connectivity and long battery life. The AFE is enabled with Near Field Communication (NFC) for easy activation, pairing, programming data readout while Bluetooth LE ensures stable real‑time data streaming. A tiny wearable form factor, long shelf/wear life and included reference software/companion app is what make the platform designed to accelerate development and speed CGM innovation.
The solution has been fully developed, validated and tested. Additionally, NXP provides all the necessary materials to customize this design with schematics, bill of materials (BOM), firmware, application note, technical training video, user guide and a getting started guide. Enablement is available for NDA-approved customers.
Enablement is available to non-disclosure agreement (NDA)-approved customers. Reach out to your local NXP representatives to know more about this solution and request for access.
製品詳細
ブロック図
Features
Application
- Continuous Glucose Monitoring (CGM) with NFC, Temperature measurement and Battery status
Sensing
- Amperometric measurement via potentiostat supporting three-terminal and two-terminal modes
- Two-channel amperometric sensing
- Thermistor support for temperature measurement
Components
Connectivity
- Bluetooth: Ultra-low-power Bluetooth® Low Energy 5.3 wireless transceiver with embedded microcontroller and flash
- NFC Type 4 tag, ISO14443 / NFC Forum-compliant and enables:
- Activation from Shelf life
- Out of band Bluetooth bonding and pairing
- Commissioning/Programming during and/or after production
- Data Read out in Active mode
Processing and Security
- Cortex M33
- Flash up to 1 MB and RAM up to 128 kB
- Up to 4 weeks of data storage
- AFE enabled with Interrupt to alert the Bluetooth Low Energy MCU when new data becomes available
- Secure life cycle management, device config and trust provisioning
- Edgelock Secure – SESIP LvL 2/PSA LvL 2
Bluetooth Low Energy Use case
- Upto 2 active Bluetooth Low Energy connections (To smartphone/reader and Pump)
- Range - at least 10 meters
- Upto 2 dB transmit power
Measurement and TX Intervals
- Fully configurable AFE measurements
- Fully configurable Bluetooth Low Energy TX to smartphones and/or reader

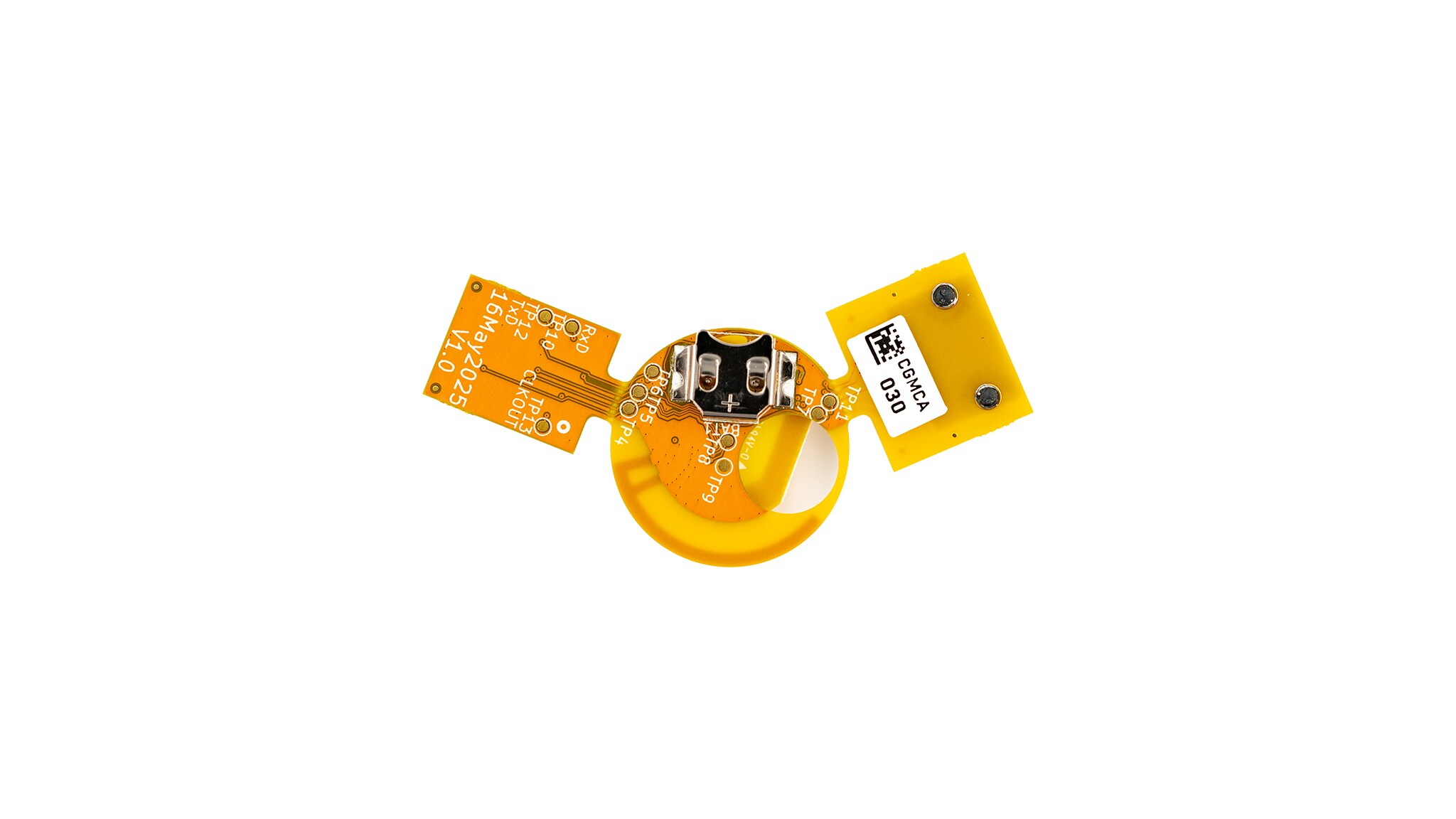

Battery and Supply
- 1.5 V silver oxide, 25 mAh
- Voltage supply range: 1.2 V to 1.9 V
Operation Life
- 2 Years shelf life
- Up to 4 weeks runtime

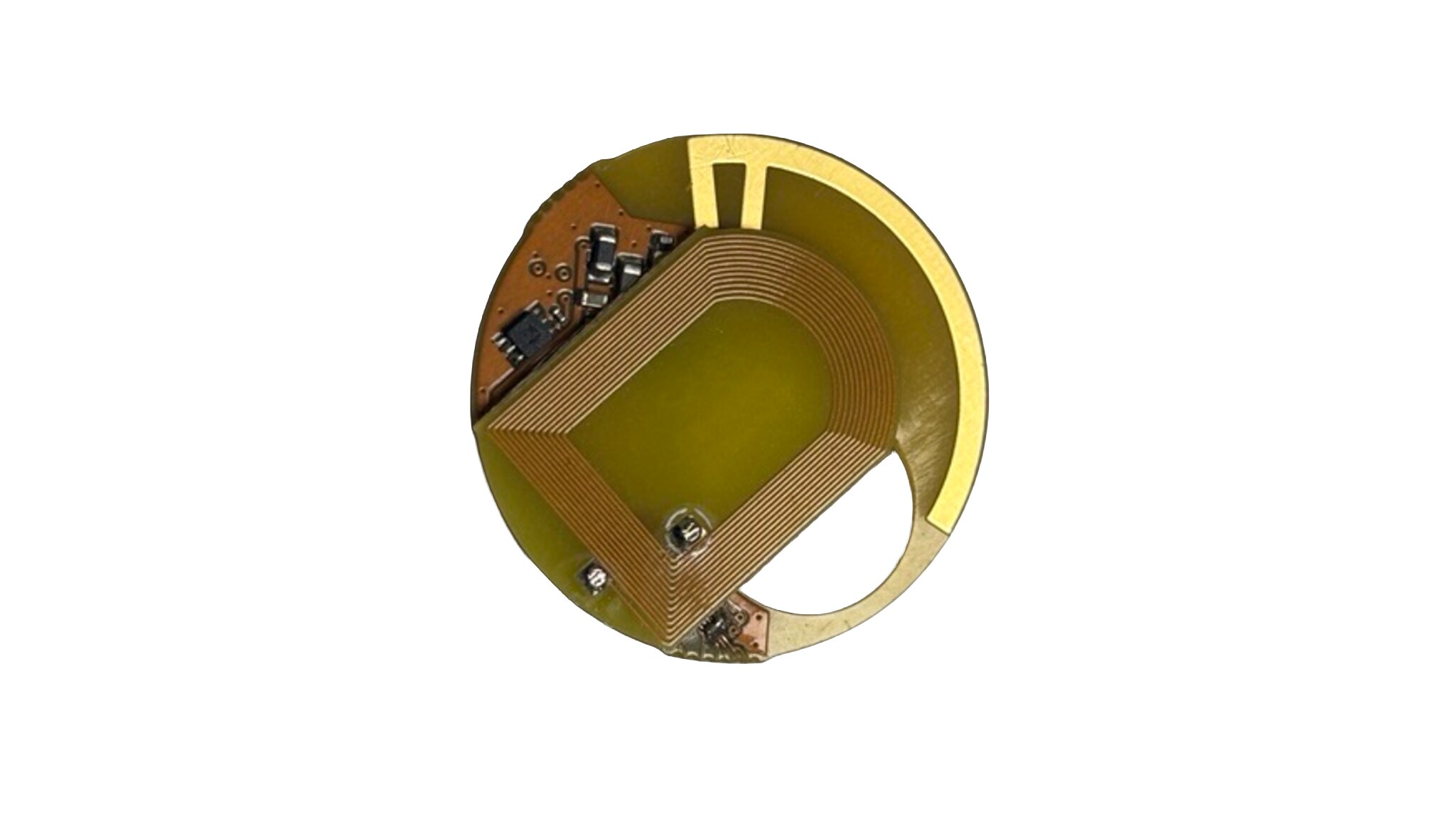

Package
- Up to 22 m diameter
- Bluetooth Low Energy and NFC antenna included
