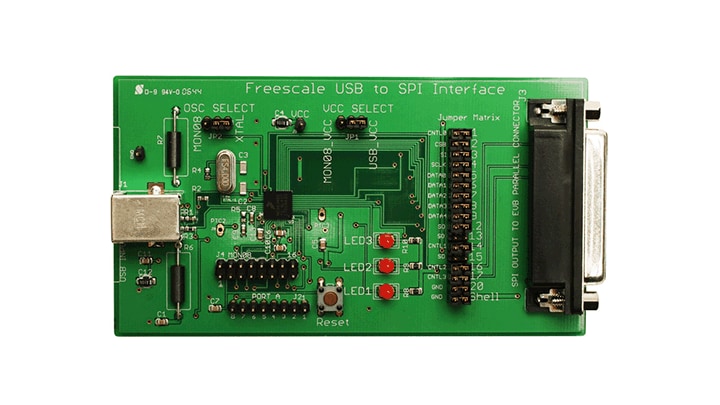

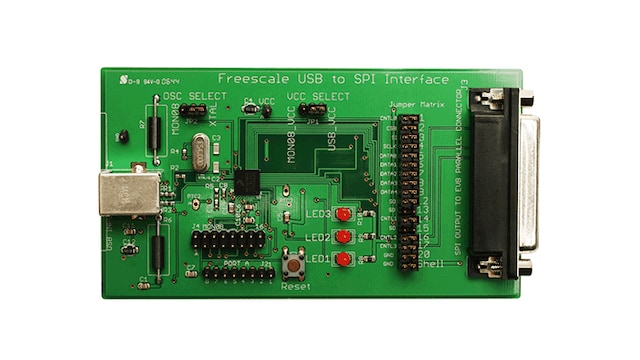

KITUSBSPIEVME
-
Evaluation Kit - USB to SPI Interface BD featuring the MC68HC908JW32.
- KITUSBSPIEVME Hardware
- Cable, USB A-M to B-M
- Quick Reference Guide
Evaluation Kit Hardware / Software Example for MC68HC908JW32
The KITUSBSPIEVME EVALUATION KIT is a working hardware/software example that allows a user to become familiar with the MC68HC908JW32 by means of an actual useful application, a USB to SPI and USB to parallel converter. The main function provided by this Demo Board is to allow a PC, that may not have a parallel port, to communicate with other NXP® Evaluation Boards, via a USB port. The USB port is a standard feature on almost every new PC. This kit makes use of the MC68HC908JW32’s built-in USB, SPI and parallel ports.
製品詳細
対応製品
プロセッサ＆マイクロコントローラ
8ビットレガシMCU
- HC08JB-JG-JT-JW: 8-bit General Purpose JB, JG, JT and JW MCUs
Features
Microcontroller
- MC68HC908JW32 MCU is available with a variety of memory sizes and types, modules, and package types
Connectivity
- USB to SPI converter
- USB to parallel converter
- PCB contains a USB type B connector (female)
Key Features
- Reprogramming capability for the MC68HC908JW32, through the USB port, using SPIGen v7.0 or later or through the onboard MON08 connector port
Tools and OS Support
- Uses Our PC-based SPIGen software
