Layerscape 1024A Applications Solutions Kit (ASK) for High-Performance Vertically-Oriented Networking Applications
QORIQ-LS1024A-ASK アラートの受信
NXP® offers a comprehensive Linux® based OpenWRT application solution kit (ASK) to OEM/ODMs inclined to build multi-segment network products based on the LS1024A communications processors. The field-hardened and feature-rich OpenWRT software package will enable the OEM/ODMs to significantly shorten their software design cycle and achieve quicker time to market without compromising on quality or features.
Optimized third-party software solutions, such as OSGi, Java, Android and IMS/VoLTE etc., compliment the OpenWRT software package and offer a software ecosystem that is highly modular and scalable. OEM/ODMs can reap the benefits of such modular software and eliminate hardware redundancy by offering more services, thereby reducing system costs. The OpenWRT software, coupled with our LS1024A communications processors, offers a high-performance, energy-efficient and scalable platform that will help OEM/ODMs meet the demanding needs of next-generation consumer or enterprise networks reliably and efficiently.
ソフトウェア詳細

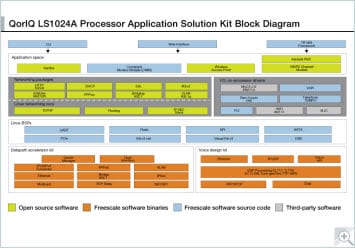

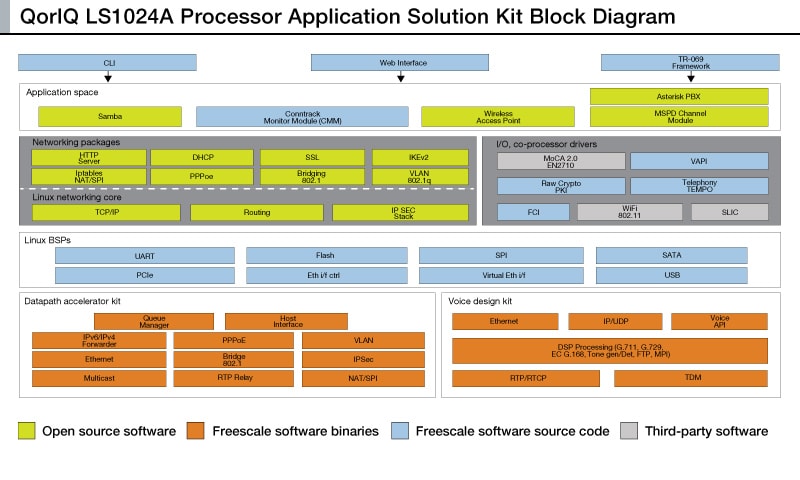

図
Features
- Programmable packet forwarding engine
- Delivers 2Gbps performance and provides flexibility to offload current and future bandwidth demanding applications. Offloads NAS TSO and LRO operations to hardware. Reduces CPU load
- Hardened OpenWRT distribution
- Over four years of rigorous field tests and millions of deployments. Hardened and mature software distribution reduces time to market
- Flexible and optimized software architecture
- Easy to port and integrate third-party software stacks. Significantly reduces software design cycle. Ensures ample headroom for run-time services even during peak performance
- BSPs for hardware reference EVM
- Suitable for software development and ASK performance benchmarking
- VoIP module
- Carrier-class voice with a globally deployed echo canceller for residential VoIP, DECT and SMB gateway solutions
- NXP® rich partner ecosystem
- NXP offers a diverse third-party ecosystem delivering ready-to-use integrated solutions such as OSGi, JVM, IMS/VoLTE, Android, etc
- Support for emerging technologies
- 802.11ac, DPI, NAS, LTE, DECT-ULE
対応製品
- LS1024A: Layerscape® 1024A Dual-Core Processor
Part number includes
Part number includes:
- Access to BHR software stack
- Access to NAS software stack
- Access to Binaries for PPFE and VoIP module software
OpenWRT
LS1024A OpenWRT Linux BSP and ASK Overview
Linux OpenWRT
- U-Boot
- BSPs
- Linux kernel (3.2.54)
- Linux file system
- Application drivers
- Binary for packet forwarding engine
- Binary for VoIP packet processing
Networking Services
- TCP/UDP
- IPv4
- RFC 2684 routed, bridged
- PPP/PPPoE
- ICMP
- NAT/NAPT
- IGMP and MLDv6
- DHCP/DHCPv6
- 802.1d bridging
- IP forwarding
- 802.1p, 802.q
- (s)RTCP
- (s)RTP
IPv6
- Base protocol
- Neighbor discovery
- Auto-configuration
- ICMPv6
- Multicast addressing
- MLDv2
- DHCP v6
- IPv6/IPv4 dual stack
- IPv4 over IPv6 tunneling
- MLDv2 SnoopingDriver support
- Multi-tier 1 wireless LAN vendor driver support for 11n and 11ac.
- Zarlink SLIC/SLAC drivers
- SiLabs SLIC/SLAC drivers
- USB stack
- PCIe stack
- I2C driver
- SPI driver
- Gig Ethernet MAC drivers
- Virtual drivers for MSP config
- IPsec engine control
- UART access
- GPIO control
- Interrupt service routine
Security
- Deep Packet Inspection (DPI) enabled via third-party software
- SPI firewall
- IKE IPsec
- OpenSSL
- L2TP
Client/Server
- FTP
- Telnet
- SSH
- SAMBA
- NFS
- NTP
QoS
- Classful and Classless Queuing
- Traffic shaping
- Rate limiting
- Ingress control
- Diff serv
Fast Path Support
- TCP/UDP
- IPv4/IPv6
- PPPoE
- NAT/NAPT
- IPsec/SSL
- DPI/SPI
- EtherIP
- 4RD/4 over 6
- Egress QoS
- Traffic shaping and ratelimiting
- IPv4/IPv6 Multicast
- RTP relay/cut thru
Accessibility
- WEB GUI
- CLI
- Telnet
- SSH
- TR-069 call back frame work
Diagnostics
- TCPDump
- Cyclesoak
- RTP/RTCP stats
- Voice channel stats
VoIP
- Asterisk-Telephony
- RTP protocol
- SRTP protocol
- RTP call relay
- RTP cut through
- VAD / SID / CNG
- Call waiting, hold
- Call parking
- Echo suppression
- Digital gain control
- Announcement server
- AGC (automatic gain control)
- Voice loopback
- Conferencing support
- Fax / modem passthrough
- T.38
- Echo cancellation
- Sparse EC
- Quad tone generator
- Jitter compensation
- VAPI
- Tone relay
- VBD automode
Codec Support
- Narrow band CODECs
- G.711
- G.729 a/b
- G726, iLBC
- G723, G729.1
- AMR
- Wide band CODECs
- G.722
- G.722.2 WB AMR
Third-party Solutions
- IMS/VoLTE
- Home automation suite
- JVM
- OSGi
- Android Jelly Bean
- DPI
- IDS/IPS
- Anti-virus
- App based QoS
- Parental control
- DLNA
