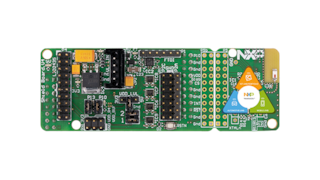

評価/開発ボードおよびシステムOL23D0: Trimension™ Evaluation Board for IoT Ultra-Wideband
-

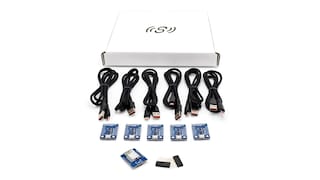

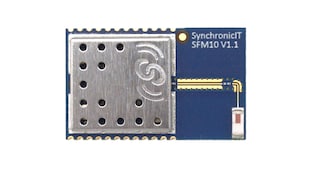

評価/開発ボードおよびシステムSynchronicIT SFM10-MOD: UWB Module for Trimension™ OL23D0
-
Trimension™ OL23D0: Fully Customizable UWB Controller for IoT
OL23D0 アラートの受信
The Trimension OL23D0 allows customers to design flexible system solutions as well as standalone IoT applications due to its integrated flash memory and microcontroller. This enables highly optimized IoT solutions in terms of performance, energy consumption and system costs. Therefore, the Trimension OL23DO can be used in a broad spectrum of IoT applications including Industrial use cases, location-based services and Smart Home.
NXP achieves excellent precision and robustness with its broad UWB portfolio and was first to offer a system-level UWB solution backed by a comprehensive software offering and strong security integration based on NXP’s market-proven embedded secure elements (eSEs), and Near-Field Communication (NFC) integration.

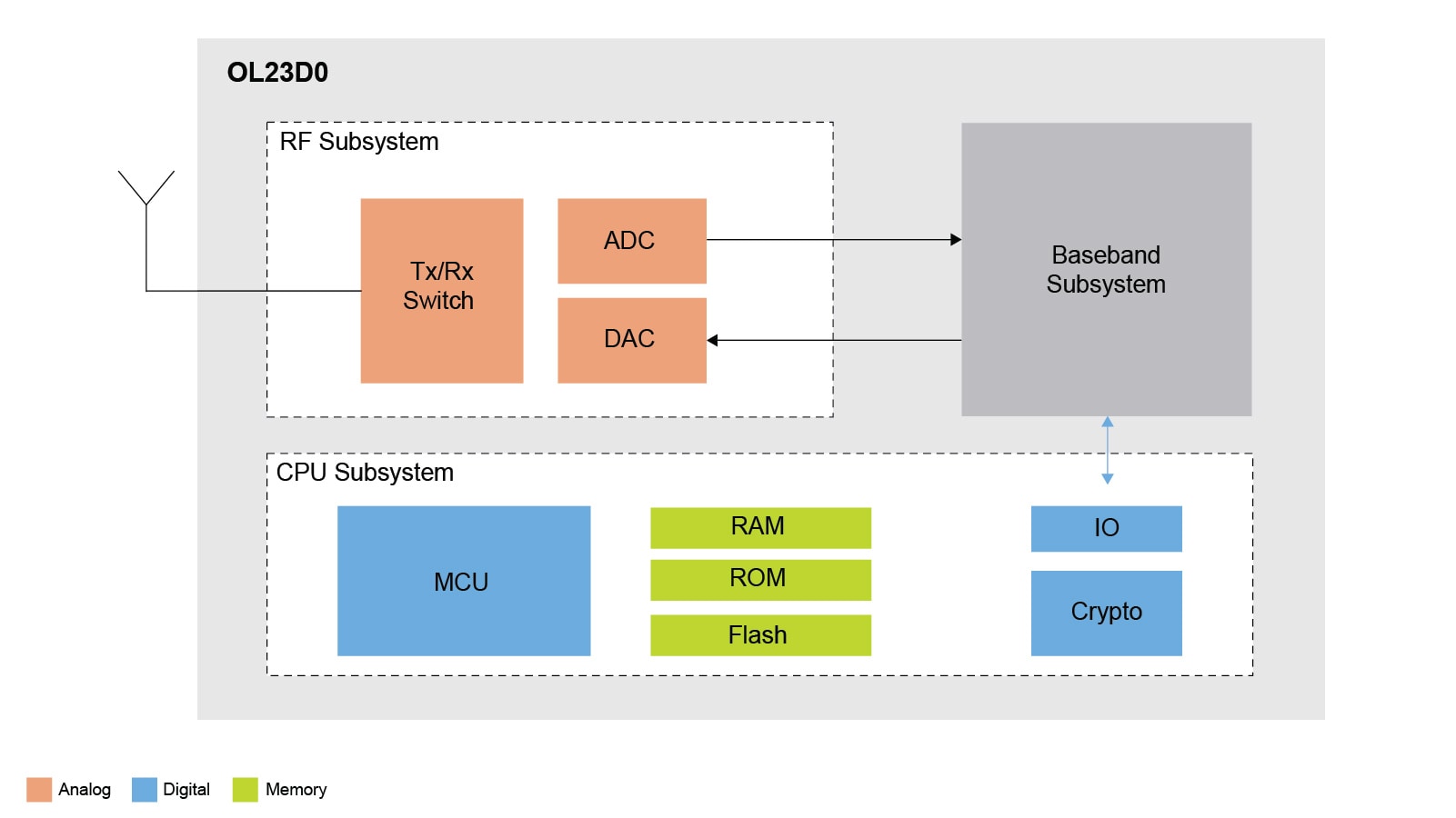

Trimension OL23D0 UWB IoT controller
製品詳細
Features
- Specialized part for battery-operated use cases
- On-chip flash memory for customer specific applications
- Optimized low-power modes
- Integrated Tx/Rx switch
- IEEE 802.15.4z compatible
- Arm® Cortex®-based
