OM7633
-
BGU7033 evaluation board for set-top box, low-noise amplifier with programmable gain and by-pass functionality.
- Evaluation board internally matched to 75 Ohm
BGU7033 evaluation board for set-top box, low-noise amplifier with programmable gain and by-pass functionality
OM7633 アラートの受信

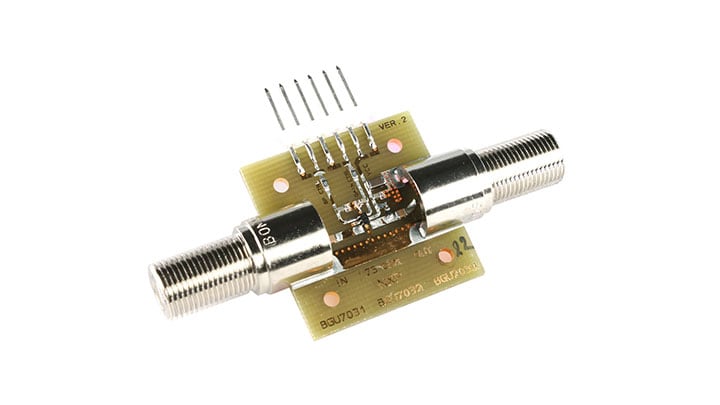

The BGU7033 evaluation board simplifies the evaluation of the BGU7033 as low-noise amplifier, with programmable gain and by-pass mode, in set-top box applications. It contains a RF board internally matched to 75 Ohm for the CATV frequency range (40 MHz to 1000 MHz). The board operates at 5 V and consumes 43 mA.
製品詳細
対応製品
RF
セットトップボックスのLNA (75Ω)
- BGU7033: 1 GHz Wideband Low-Noise Amplifier with Bypass
Features
- Board allows for the evaluation of the BGU7032, including its by-pass mode and programmable gain settings
- Board demonstrates the low component count needed to implement the LNA function
