ALNA – Low Noise Active Antenna Amplifier
TLH501x アラートの受信
The ALNA (Advanced Antenna Low Noise Amplifier) is the integrated antenna amplifier solution for AM/FM as DAB. It offers system cost reduction through integration as well as excellent performance with its highly linear gain. One key feature is the AGC for each path with configurable thresholds.
The AGC improves the linearity of the system amplification as well as it significantly improves the radio system performance. Other built-in features include a blanking detection and antenna diagnostic features. ALNA based antenna designs offer state-of-the-art performance at a high flexibility, small form factor with great cost-effectiveness.
製品詳細

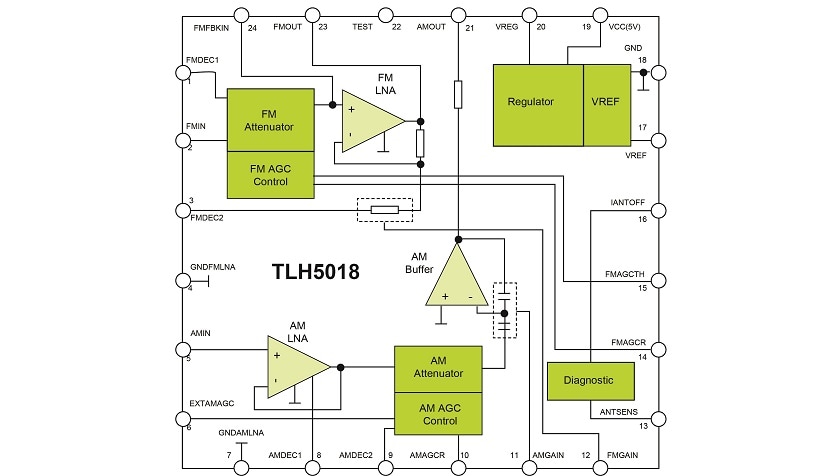

ブロック図
Features
- The flexible gain for AM, FM and DAB reception
- Configurable up to 12dB gain.
- In High-Impedance applications up to 6dB additional gain.
- Flexible AM and FM/DAB AGC thresholds.
- One solution for all line impedances.
- AGC keeps input and output impedance constant.
- Low Intermodulation and intrusion values.
- In accordance with recent main-OEM specs.
- Built-in diagnostic function for antenna detection.
- Device supply control (5V) with an external transistor and built-in regulator.
部品番号： TLH5014HN, TLH5016HN, TLH5018HN.
