BFU730LX Bipolar Transistor Evaluation Kit

OM7836 アクティブ

画像にカーソルを合わせると拡大表示されます。

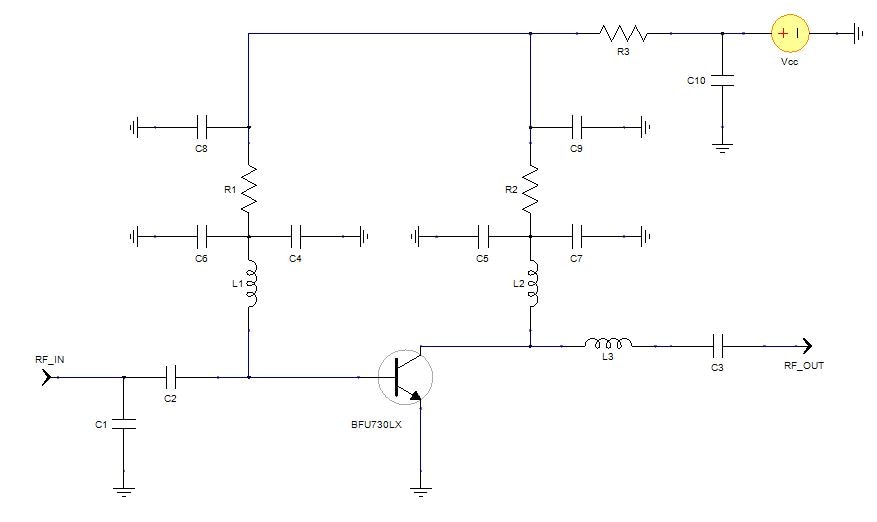

The BFU730LX bipolar RF transistor evaluation kit simplifies the evaluation of the BFU730LX bipolar RF transistor. It contains two RF boards matched to 50 Ohm for the 2.4 GHz and 5 GHz Industrial, Scientific and Medical bands. The boards operate at 3 V and consume 12.5 mA. A spare printed-circuit board and SMA connectors are included for implementing custom designed matching and biasing circuitry. The kit also provides BFU730LX samples for prototyping.

対応製品

RF

中電力増幅器

  • BFU730LX: NPN Wideband Silicon Germanium RF Transistor

Features

Key Features

  • Bread board for custom designs
  • Samples for prototyping
  • Out of the box evaluation of the fully populated RF board for ISM/WLAN 2.4 GHz and ISM/WLAN 5 GHz

購入オプション

OM7836-Image

クリックして展開

  • OM7836
    アクティブ

  • BFU730LX bipolar transistor evaluation kit.

    • RF board matched for ISM/WLAN 2.4 GHz
    • RF board matched for ISM/WLAN 5 GHz
    • Unpopulated PCB
    • 2 SMA connectors
    • BFU730LX samples
  • の数量に対して 1
