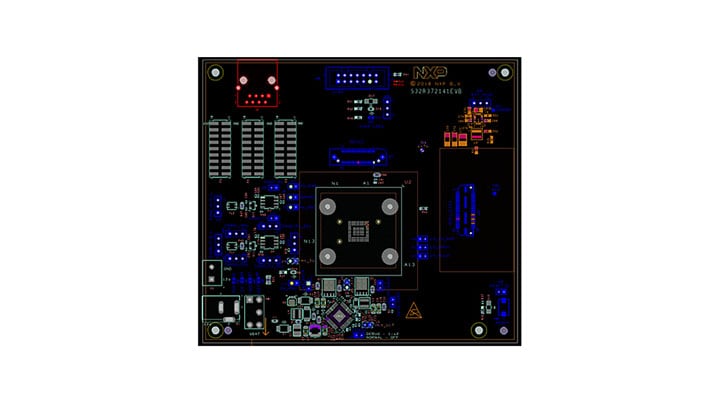

S32R372141EVB
-
NXP S32R372 RADAR Processing MCU 141BGA Evaluation Board.
- 12V DC power supply
- S32R372EVB
- S32R372 141BGA Microcontroller
デザイン・ファイル
1 設計・ファイル
-
プリント基板と回路図
S32R37X-141EVB Schematic
NXP S32R372 RADAR Processing MCU 141BGA Evaluation Board
S32R372EVB アラートの受信
The S32R372 141BGA Evaluation board provides a basis for application development using the S32R372 RADAR processing microcontroller in the 141BGA package. The standalone, socketed design allows rapid prototyping of the application in a small and easy to use package. High speed debug and MIPI-CSI2 connections allow for interoperability with NXP's range of RADAR RF parts for RADAR application development.
製品詳細
Features
Connectivity
- Standard 14-pin JTAG debug connector and 34-pin Nexus Aurora connector
Power Management
- Single 12 V external power supply input with two onboard regulators providing all of the necessary EVB and MCU voltages
- Power supplied to the EVB via a 2.1mm barrel style power jack or a 2-way level connector
User components
- 3x user LEDs, freely connectable
- 2x CAN FD dedicated interfaces
- Main power switch and regulator status LEDs
- User reset switch with reset status LED
Support
- Support for the 141MAPBA package via a socket for simple device interchange during development
- Test points (surface mount loops) placed throughout the EVB
- MIPI-CSI2 high-speed connector intended for use with Eagle MR3003 RADAR front-end EVK (Evaluation Kit) or the Dolphin TEF810X front-end EVK (via separate adapter)
- Flexible MCU clocking options allow provision of an external clock from the RF front end via the MIPI-CSI2 connector or 40 MHz EVB clock oscillator circuit (default)
- GPIO breakout 2.54 mm headers for access to all configurable device GPIO pins
購入オプション
設計・リソース
ソフトウェア
1 ソフトウェア・ファイル
-
BSPとデバイスドライバ
MATLAB SPT 2.x/3.x toolboxes
注: より快適にご利用いただくために、ソフトウェアのダウンロードはデスクトップで行うことを推奨します。
