Evaluation Kit MC33882 -Smart Six Output Switch with SPI and Parallel Input Control

KIT33882EKEVB
アクティブ

画像にカーソルを合わせると拡大表示されます。

The KIT33882EKEVB evaluation board allows the user to exercise all the functions of the MC33882 smart six-output, low-side switch with SPI and Parallel Input Control.

  • Reduces part count and simplified circuitry
  • Simplifies interfacing to industry standard 5.0 V microprocessors having SPI
  • Simplifies means of getting diagnostic fault status
  • Offers built-in device protection features
  • Provides efficient control of up to six 1.0 A and two low current loads (30 mA) using a single IC
  • 0.3 Ohm RDSon

製品詳細

対応製品

パワーマネージメント

ローサイド・スイッチ

  • MC33882: 6 Output Switch, SPI, Parallel Input Control

Features

Connectivity

  • FSD connector
  • NXP® SPI Generator (SPIGen) provides the user interface to the MC33882 SPI port
    • Send commands to the IC
    • Receive status information from the IC
  • Output terminals for loads

Test Terminals

  • Test points for inputs, outputs, and SPI signals

購入オプション

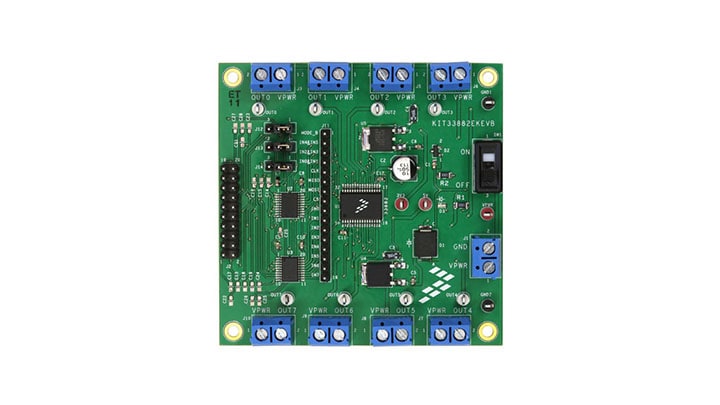

KIT33882EKEVB-Image

クリックして展開

  • KIT33882EKEVB
    アクティブ

  • Evaluation Kit MC33882 -Smart Six Output Switch (0.3 Ohm RDSon) with SPI and Parallel Input Control.

    • KIT33882EKEVB Hardware
    • Quick Reference Guide
  • $171.12 USD
  • の数量に対して 1
    • 在庫: 保留中の在庫
カートに入れる
代理店からの注文
