Sensor Toolbox board for MAG3110
- このページには、製造中止（生産終了）となった製品の情報が記載されています。本ページに記載されている仕様および情報は、過去の参考情報です。
Archived content is no longer updated and is made available for historical reference only.
The LFSTBEB3110 and the RD4247MAG3110 are no longer in production. The alternate ordering option is the FRDM-FXS-MULT2-B. For additional information, please contact NXP® Sales and Marketing.

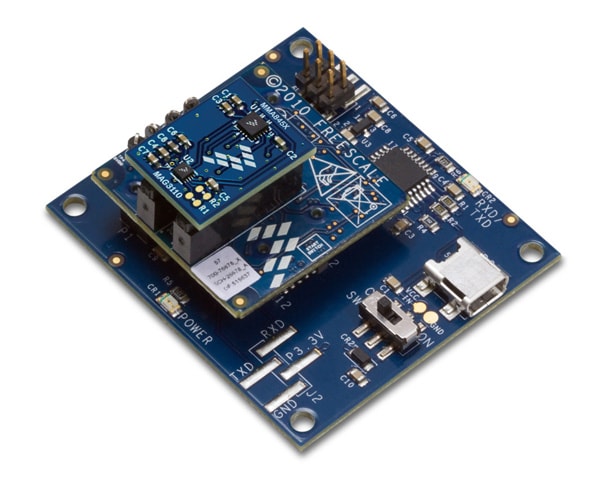

The LFSTBEB3110 is an evaluation board for the NXP MAG3110FC 3-axis high-performance, high-functionality magnetometer.
- The LFSTBEB3110 kit includes a daughter board containing the MAG3110FC and MMA8451Q to allow for system calibration and compensation for demonstrating eCompass capability.
- For customers already familiar with the Sensor Toolbox Platform, the LFSTBEB3110 is designed to work with the LFSTBUSB for communication to a PC.
- For customers that desire the complete system, the development kit RD4247MAG3110 comes with both the LFSTBEB3110 and the LFSTBUSB boards together.
製品詳細
Features
- Easily evaluate and demonstrate sensor functionality
- Can quickly demonstrate all sensor types
- Plug and play
- Flexible with a variety of boards that fit together
- Unified architecture with the same GUI software
