I2C to SPI Bridge Evaluation Board

SC18IS606-EVB アクティブ

画像にカーソルを合わせると拡大表示されます。

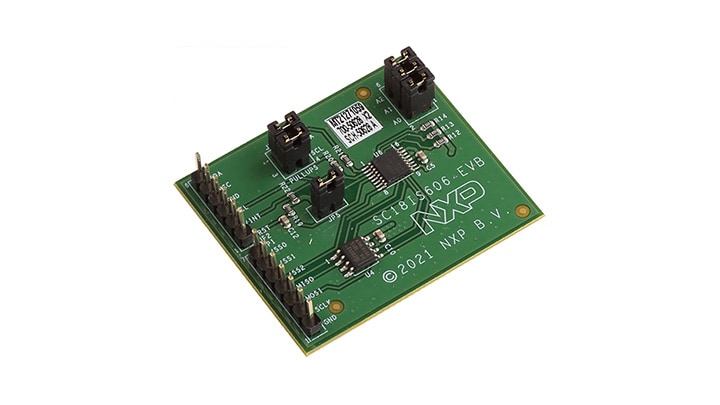

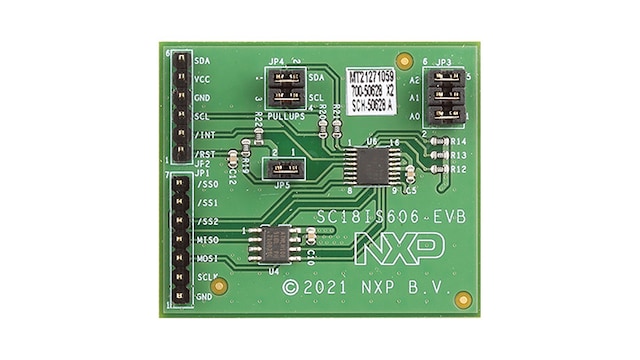

Easy to use board with mounted SC18IS606PW allowing connections to I2C controllers and SPI targets for protocol conversion.

製品詳細

対応製品

インターフェース

ブリッジ

  • SC18IS606: I²CバスからSPIへのブリッジ

Features

UART Host Interface

  • With 400 kHz speed and 1024 byte data buffer

SPI Controller

  • Up to 1.8 Mbit/s with up to three SPI target select output pins

Three Configurable I/O Ports

  • Can be used for LED or other I/O purpose if not used for SPI target chip select

Wide Voltage Range

  • 1.71 V – 3.6 V operation with 5 V tolerant I/O pins

Temperature Range

  • -40 to 105 °C, can be used in high temperature industrial applications

購入オプション

SC18IS606-EVB-Image

クリックして展開

  • SC18IS606-EVB
    アクティブ

  • I2C to SPI Bridge Evaluation Board.

  • Kit Contains

    • Assembled and tested evaluation board in an anti-static bag
  • $22.22 USD
  • の数量に対して 1
    • 在庫: 在庫あり
    • 在庫: 5
    • 配送: 通常 1～2営業日以内に配送
カートに入れる
