1. Out of the Box

1.1 Out of the Box

The NXP analog product development boards provide an easy-to-use platform for evaluating NXP products. The boards support a range of analog, mixed-signal and power solutions. They incorporate monolithic integrated circuits and system-in-package devices that use proven high-volume technology. NXP products offer longer battery life, a smaller form factor, reduced component counts, lower cost and improved performance in powering state-of-the-art systems.

This page will guide you through the process of setting up and using the KIT- PC2TPLEVB board.

完了としてマーク：1.1 Out of the Box

1.2 Kit Contents and Packing List

The KIT-PC2TPLEVB kit contents include:

KIT-PC2TPLEVB: personal computer (PC) to electrical transport protocol link (ETPL) gateway board
TTL-232R-5V: USB to RS232 cable (1.8 m)
ETPL cable: two-wire twisted pair TPL cable (50 cm)
Quick start guide

完了としてマーク：1.2 Kit Contents and Packing List

次へGet the Hardware

2. Get the Hardware

2.1 Board Features

Direct control from a PC via USB connection (VCP)
VCP communication speed 2 MBD
Supply of the KIT-PC2TPLEVB from USB
Two galvanically isolated ETPL ports
Supports TPL3 and TPL2 protocol versions
Four status LEDs

完了としてマーク：2.1 Board Features

2.2 Board Description

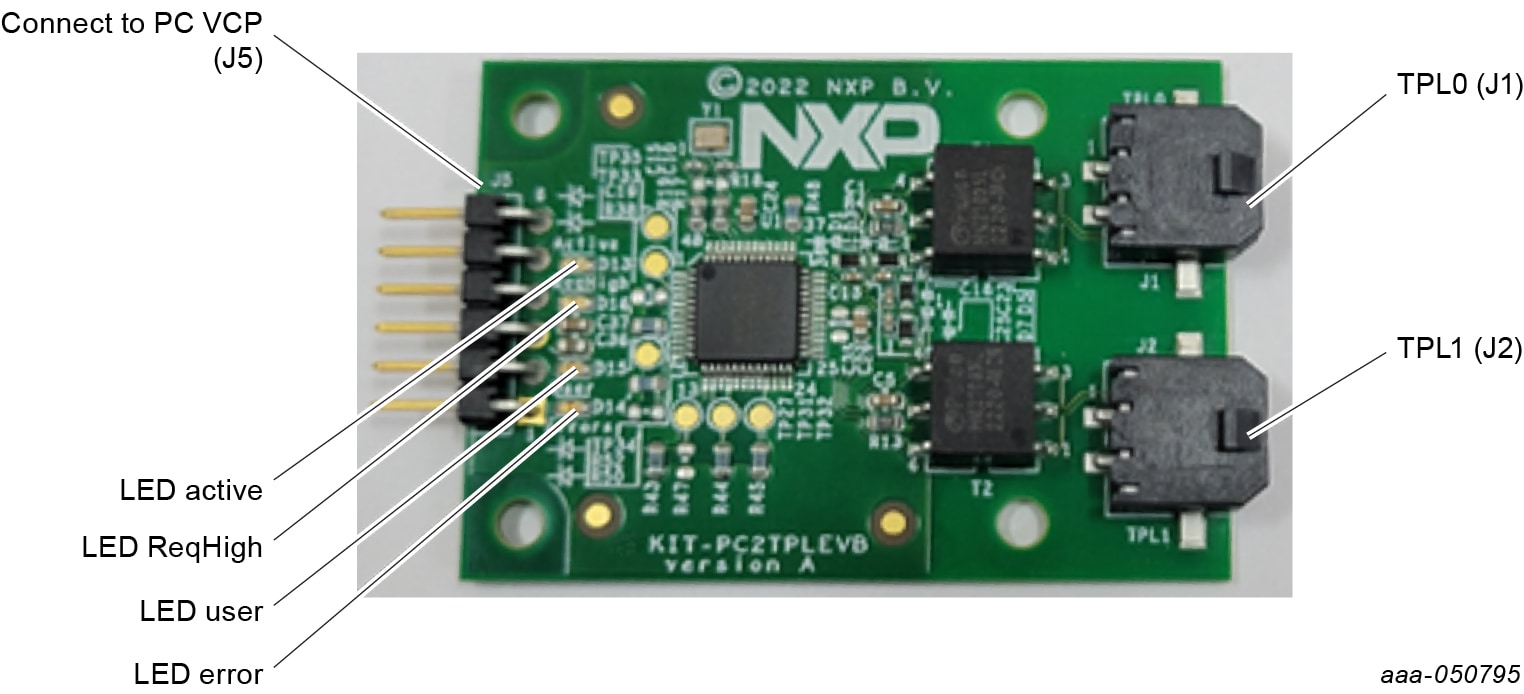

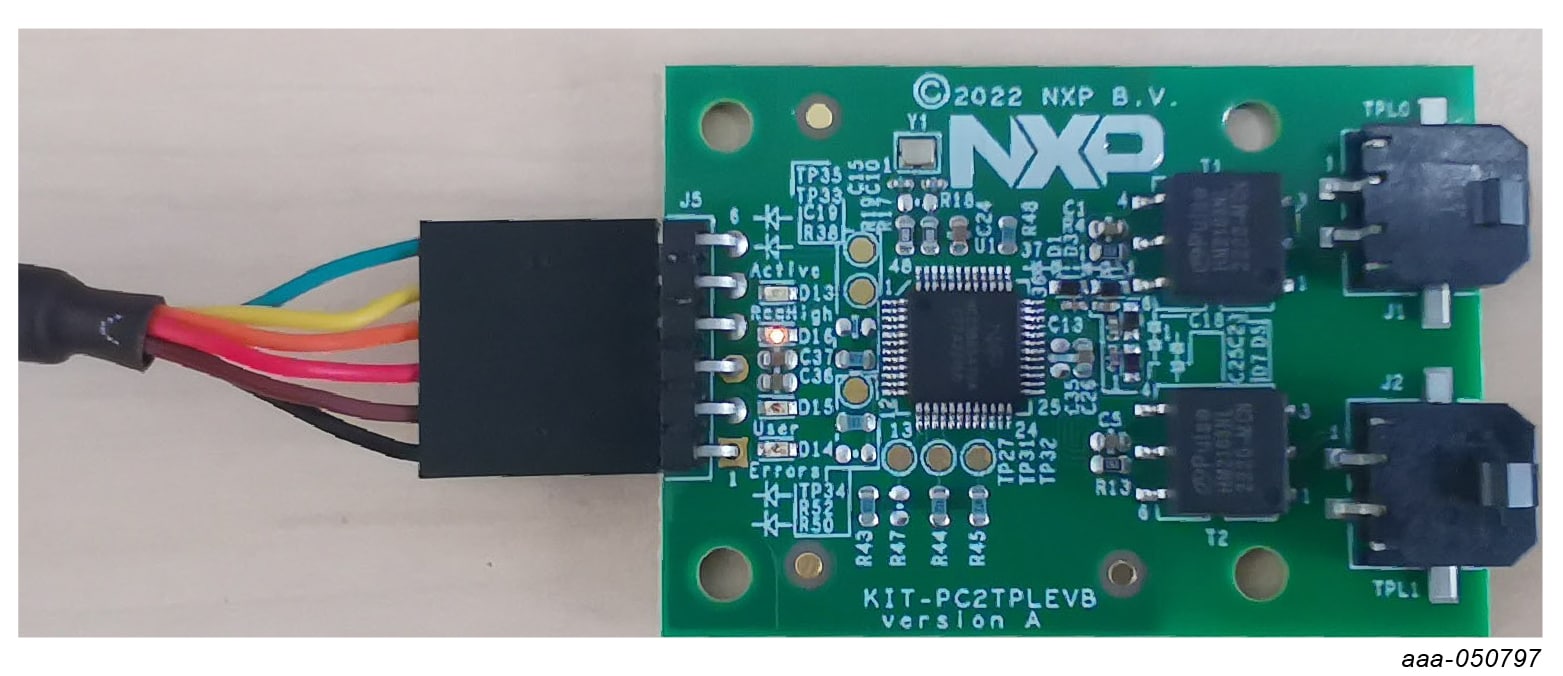

The KIT-PC2TPLEVB serves as a hardware tool supporting evaluation of ETPL devices with software running on a PC. This board can be directly connected to a USB port of a PC and interfaced via a virtual COM port (VCP).

完了としてマーク：2.2 Board Description
