1. Out of the Box
The NXP analog product development boards provide an easy-to-use platform for evaluating NXP products. The boards support a range of analog, mixed-signal and power solutions. They incorporate monolithic integrated circuits (ICs) and system-in-package (SiP) devices that use proven high-volume technology. NXP products offer longer battery life, a smaller form factor, reduced component counts, lower cost and improved performance in powering state-of-the-art systems.
This page guides you through the process of setting up and using the EVBMA7318-TPL evaluation board.
1.1 Kit Contents
The EVBMA7318-TPL kit contents include:
- EVBMA7318-TPL board
- Battery simulation cable x 1: power supply for battery cell controller (BCC) to simulate each cell by series resistors
- Current measurement cable x 1: connect to SHUNT and its calibration negative temperature coefficient (NTC)
- Transform physical layer (TPL) daisy chain cable x 2: cable to communicate with other boards by TPL
1.2 Additional Hardware
No additional hardware is required for device evaluation. However, in addition to the kit contents, the following hardware is beneficial when working with this kit:
- Debug cable TTL232-R-5V with KITPC2TPLEVB board x 1 KITPC2TPLEVB
- Power supply 24 voltage direct current (VDC) with current capability of 500 mA or a four-to-18-cell battery pack
Optional hardware:

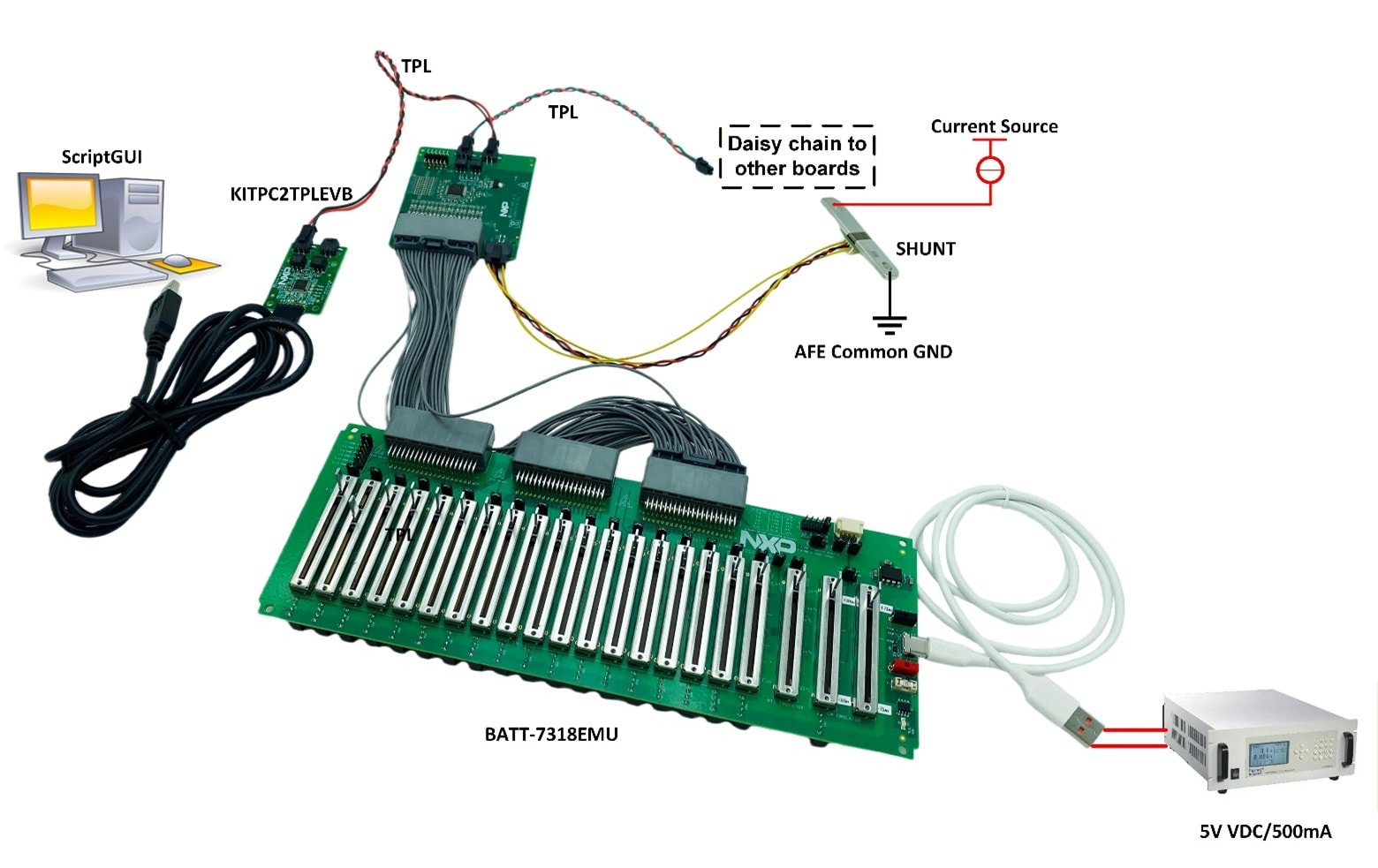

- External SHUNT and current resource that can be connected to SHUNT BATT-7318EMU (access link: BATT-7318EMU)
- Debug cable TTL232-R-5V with KITPC2TPLEVB board x 1; access link: KITPC2TPLEVB
- Power supply 24 VDC with current capability of 500 mA or a four-to-18-cell battery pack
- External SHUNT and current resource that can be connected to SHUNT
- Battery emulator board BATT-7318EMU (access link: BATT-7318EMU)
- Power supply 5 VDC with current capability 500 mA
1.3 Minimum System Requirements
This evaluation board requires a Windows PC. Verifying that your system meets the minimum specifications (Windows® 11/10/8/7, Windows XP, or Vista in 32-bit or 64-bit version ) will ensure reliable performance while using this evaluation board.
2. Get Hardware
2.1 Board Features
The EVBMA7318‑TPL evaluation board features the following:
- Distributed battery management system (BMS) architecture
- One BMA7318 on one board
- Can measure voltage for up to 18 battery cells with high accuracy
- 10 temperature-sensing channels
- TPL isolation communication
- Cell balancing current up to 300 mA
- Current measurement channel with precision or fast mode
- High electromagnetic compatibility (EMC) performance
2.2 Board Description

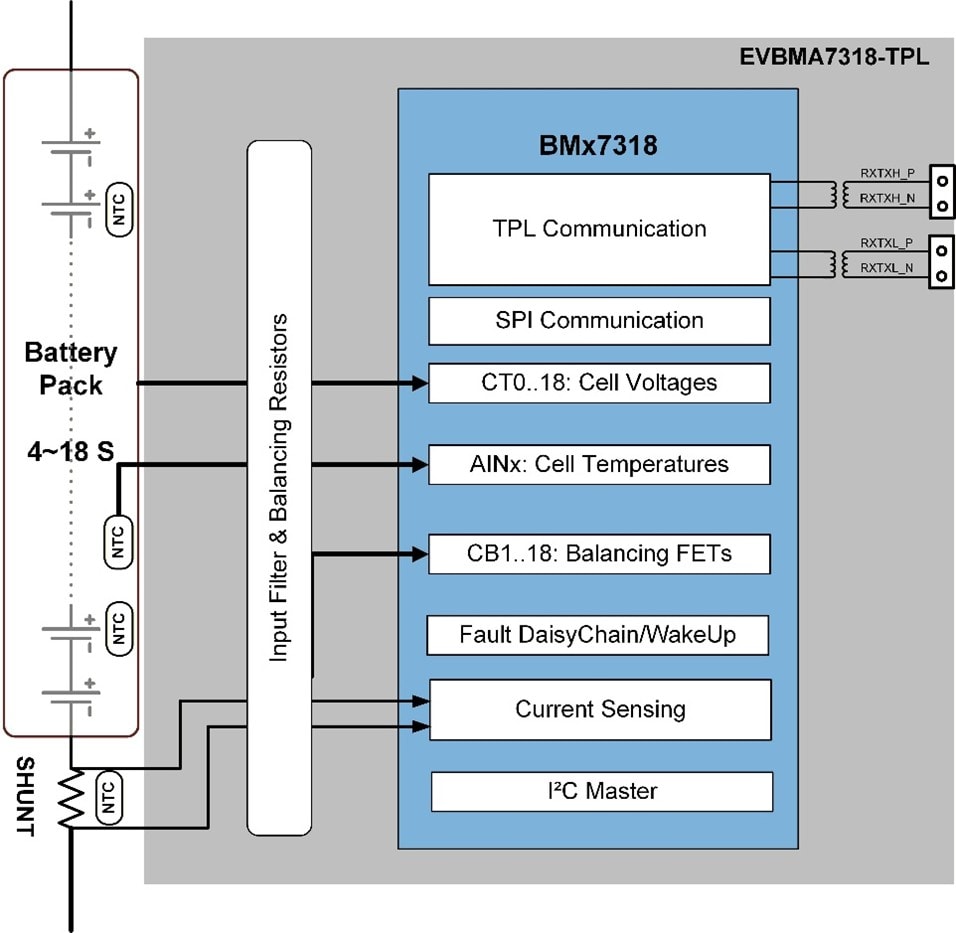

This board includes one BMA7318 device. As shown in the diagram, the board communicates with a controller board or controller PC through TPL and communicates with other cell monitoring unit (CMU) boards through TPL with transformer isolation. Each board measures lithium-ion batteries with four to 18 cells. The board operates from a nine VDC to 90 VDC power source.
2.3 Board Components

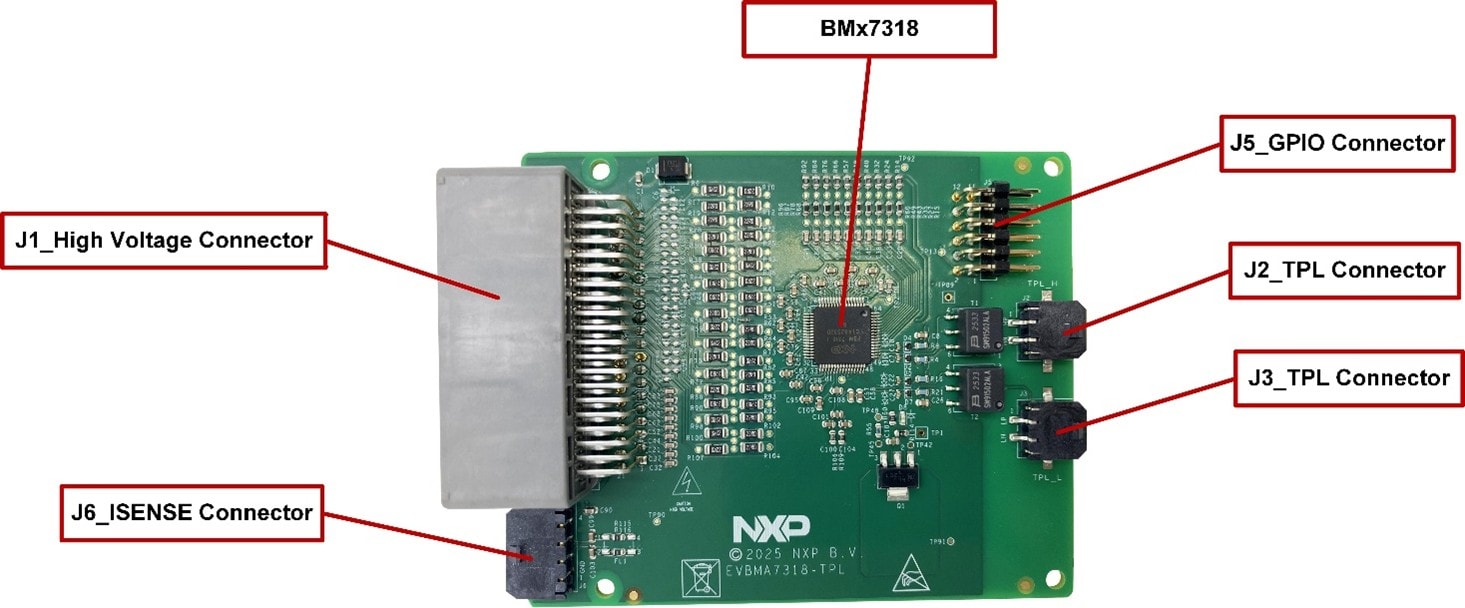

Figure 2 identifies important components on the board and Table 1 provides additional details on these components.
| Number | Devices | Description |
|---|---|---|
| 1 | BMA7318TAIAE | 18-Channel Li-ion battery cell controller IC |
2.4 Connectors
| Pin | Name | Description |
|---|---|---|
| 1 | NC | No connect |
| 2 | NTC7 | Should connect to an external NTC resistor for temperature sensing |
| 3 | NTC6 | Should connect to an external NTC resistor for temperature sensing |
| 4 | NTC5 | Should connect to an external NTC resistor for temperature sensing |
| 5 | NTC4 | Should connect to an external NTC resistor for temperature sensing |
| 6 | NTC3 | Should connect to an external NTC resistor for temperature sensing |
| 7 | NTC2 | Should connect to an external NTC resistor for temperature sensing |
| 8 | NTC1 | Have connected to an internal NTC resistor for PCB temperature sensing |
| 9 | GND | Ground of BCC |
| 10 | C1P | Cell 1 voltage sensing point |
| 11 | C3P | Cell 3 voltage sensing point |
| 12 | C5P | Cell 5 voltage sensing point |
| 13 | C6Pb | Cell 6 voltage sensing point b |
| 14 | C8P | Cell 8 voltage sensing point |
| 15 | C10P | Cell 10 voltage sensing point |
| 16 | C12Pa | Cell 12 voltage sensing point a |
| 17 | C13P | Cell 13 voltage sensing point |
| 18 | C15P | Cell 15 voltage sensing point |
| 19 | C17P | Cell 17 voltage sensing point |
| 20 | VPWR | Power supply for BCC |
| 21 | NC | No connect |
| 22 | NTC8 | Should connect to an external NTC resistor for temperature sensing |
| 23 | NTC9 | Should connect to an external NTC resistor for temperature sensing |
| 24 | GND | Ground of NTC resistors |
| 25 | GND | Ground of NTC resistors |
| 26 | GND | Ground of NTC resistors |
| 27 | GND | Ground of NTC resistors |
| 28 | GND | Ground of NTC resistors |
| 29 | GND | Ground of NTC resistors |
| 30 | C0M | Cell 0 voltage sensing point |
| 31 | C2P | Cell 2 voltage sensing point |
| 32 | C4P | Cell 4 voltage sensing point |
| 33 | C6Pa | Cell 6 voltage sensing point a |
| 34 | C7P | Cell 7 voltage sensing point |
| 35 | C9P | Cell 9 voltage sensing point |
| 36 | C11P | Cell 11 voltage sensing point |
| 37 | C12Pb | Cell 12 voltage sensing point b |
| 38 | C14P | Cell 14 voltage sensing point |
| 39 | C16P | Cell 16 voltage sensing point |
| 40 | C18P | Cell 18 voltage sensing point |
| Pin | Name | Description |
|---|---|---|
| 1 | H_INOUT+ | Positive of TPL_H twisted wire |
| 2 | H_INOUT- | Negative of TPL_H twisted wire |
| Pin | Name | Description |
|---|---|---|
| 2 | L_INOUT- | Negative of TPL_L twisted wire |
| Pin | Name | Description |
|---|---|---|
| 1 | GPIO0 | GPIO0 debug |
| 2 | GPIO9/ALARMOUT | GPIO9/ALARMOUT debug |
| 3 | GPIO1 | GPIO1 debug |
| 4 | GPIO8 | GPIO8/SPI status indication debug |
| 5 | GPIO2 | GPIO2 debug |
| 6 | GPIO7 | GPIO7/OCOUT debug |
| 7 | GPIO3 | GPIO3 debug |
| 8 | GPIO6 | GPIO6 debug |
| 9 | GPIO4 | GPIO4 debug |
| 10 | GPIO5 | GPIO5 debug |
| 11 | GND | GND of GPIO |
| 12 | GND | GND of GPIO |
| Pin | Name | Description |
|---|---|---|
| 1 | GND | GND of NTC |
| 2 | ISENSE- | Current sense input _ Negative |
| 3 | ISENSE+ | Current sense input _ Positive |
| 4 | NTC_SHUNT | Should connect to SHUNT NTC resistor for temperature sensing |
3. Configure Hardware

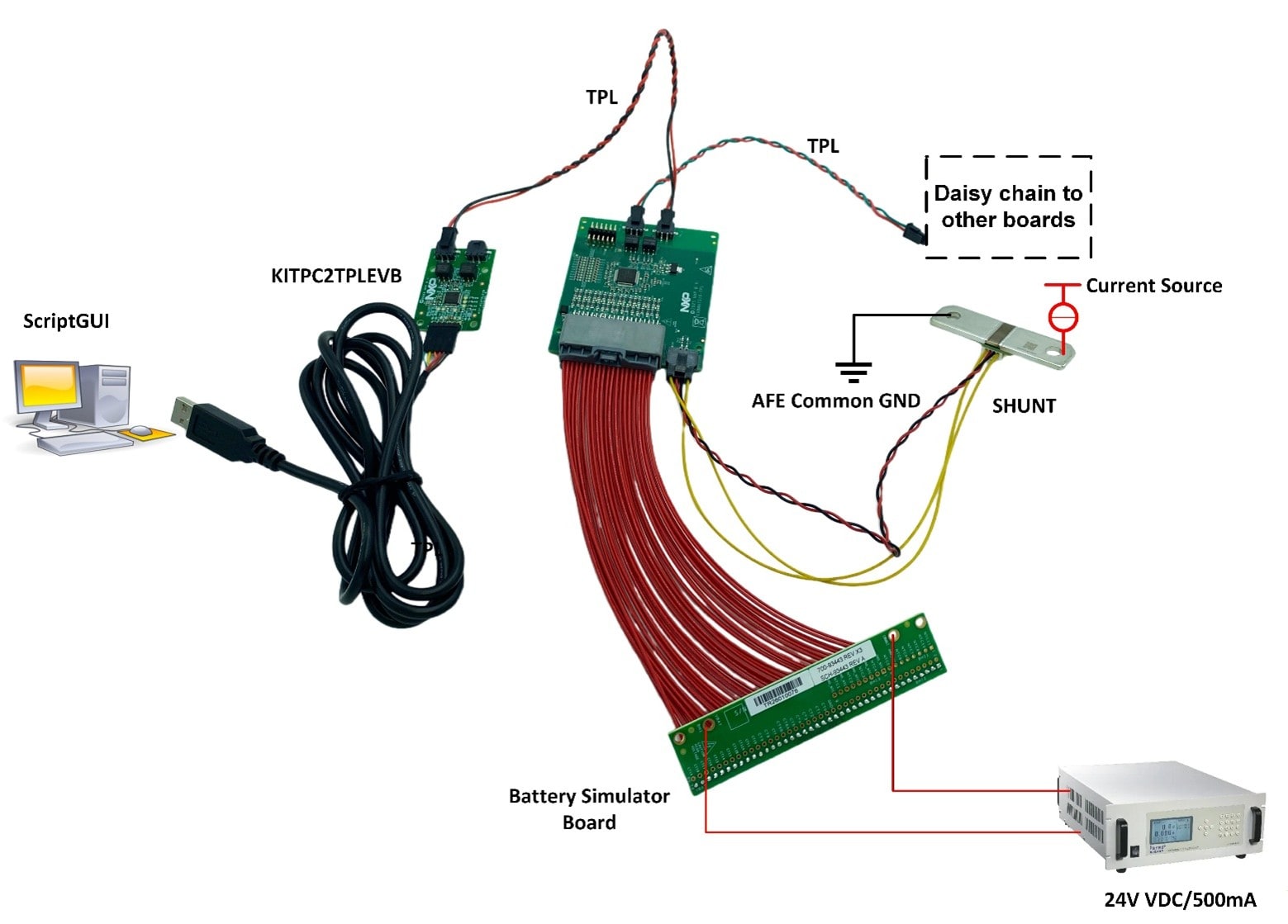

3.1 Setup Based on Battery Simulation Cable
The setup uses ScriptGUI and requires the KIT6X02AP2T1 to connect the EVBMA7318-TPL to the controller PC. The EVBMA7318-TPL will be debugged through ScriptGUI.
This setup is suitable for an EVB based on the BMA7318TAIAE.
Design Resources
Board Information
Software
Software must be installed before working with this evaluation board.
- GUI: ScriptGUI V3.5+
- ScriptGUI plugin for BMA7318
All listed software is available on the evaluation board's information page at EVBMA7318-TLP TPL or from NXP GUI page BMS Tools - ScriptGUI.
Additional References
- EVBMA7318-TPL — Detailed Information on This board, including documentation, downloads and software and tools
- BMx7318 — Detailed Information on BMx7318, 18-Channel Li-ion Battery Cell Controller IC
- BATTT-7318EMU — 18-Channel Li-ion Battery Emulator Board
